RIEGLER 3/2-5/2-way valve, NAMUR, G 1/4 (1), G 1/8 (3+5), 24 V DC

https://www.filcom-technik.de/web/image/product.template/171610/image_1920?unique=f255e57

Type number: 551.02

134.04 € 134.04 EUR 134.04 € VAT Included

156.45 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

103648

EAN :

4047322100472

Category :

Namur Valves

Weight :

0.39 kg

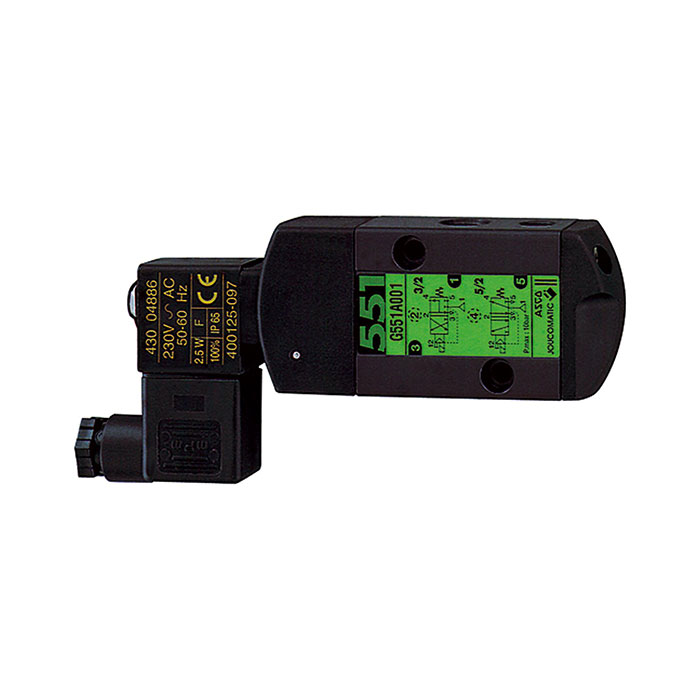

3/2-5/2-way valve, NAMUR, anodized aluminium, operating temp. -25°C to 60°C, differential pressure 2-10 bar, G 1/4 (1), G 1/8 (3+5), 24 V DC

Medium Air, neutral gases (filtered)
Housing Aluminium, black anodized
Sealing material NBR and PUR
Electrical connection Cable plug PG 9P, 3 x DIN 46244 / VDE 0580
Operating temperature min. -25 °C
Operating temperature max. 60 °C
Differential pressure min. 2 bar
max. differential pressure (bar) 10 bar
Permissible static pressure max. 10 bar
Manual override resting
Flow rate 700 l/min
DN 6
Tension 24 V DC
Connection G 1/4 (connection 1), G 1/8 (connection 3 and 5)
Class name MAX
