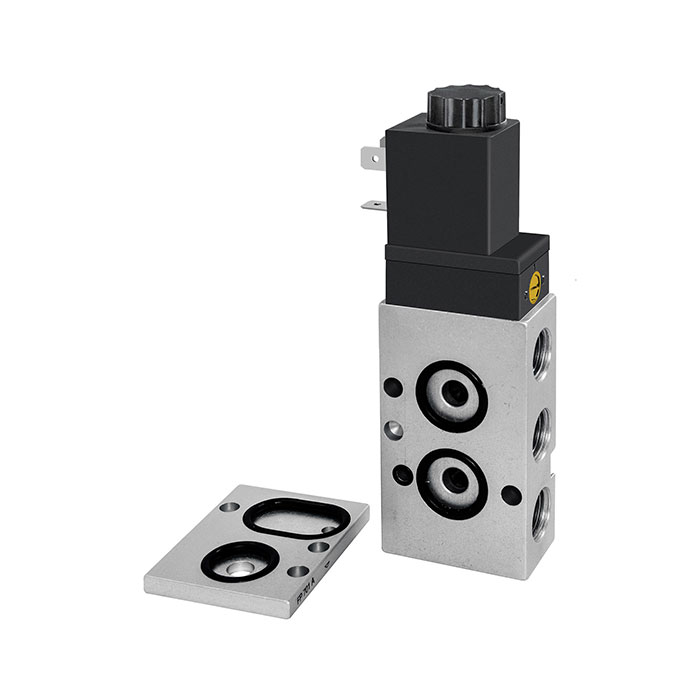

RIEGLER 3/2-5/2-way valve, NAMUR, Air spring, G 1/4, 24 V DC
Type number: 552.12
EAN: 4047322288248
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-5/2-way valve, NAMUR, air spring, anodized aluminium, operating temp. max. 50°C, operating pressure 1.5 - 10 bar, connection G 1/4, 24 V DC
| Medium | Air, neutral gases (filtered) |
| Housing | Anodized aluminum |
| Sealing material | NBR |
| Electrical connection | Device plug PG 9 |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 10 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 50 °C |
| Slider | Stainless steel |
| Manual override | resting |
| Flow rate | 1250 l/min |
| DN | 7 |
| Scope of delivery | Device plug PG 9, adapter plate, screws, sealing material |
| Tension | 24 V DC |
| Connection | G 1/4 (connection 1), G 1/4 (connection 3 and 5) |
| Class name | PLUS |
