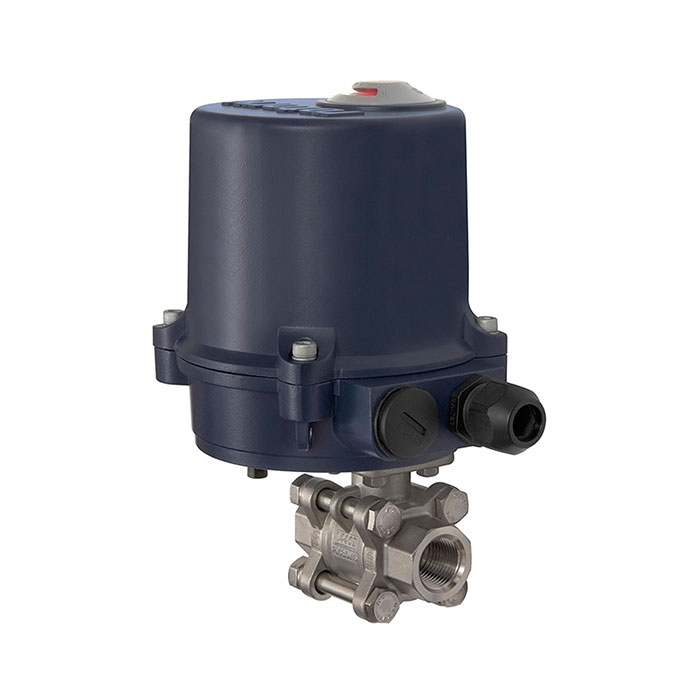

RIEGLER Stainless steel ball valve, Electr. actuation drive, Rp 1/2
Type number: 350.3810R
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
2-way stainless steel ball valve, electric actuator, 230 V AC, 50 Hz, medium temp. -10 °C to 200 °C, Rp 1/2, DN 15, PN max. 63 bar
| Housing | Powder-coated aluminum |
| Duty cycle | 0.3 |
| Protection class | IP 68 |
| Max. operating pressure | 63 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -30 °C |
| Ambient temperature max. | 70 °C |
| Material | Stainless steel 1.4401 / 1.4408 |
| Ball seal | PTFE, glass fiber reinforced |
| Position indicator | manual override |
| Shift shaft seal | PTFE, glass fiber reinforced |
| Air humidity | 30 % to 95 % |
| Mounting flange | ISO 5211 |
| Overall length | DIN 3203 - M3 |
| Thread | Rp 1/2 |
| DN | 15 |
| SW | 28 mm |
| Operating time | 15 sec. |
| Tension | 230 VAC, 50 Hz |
| A | 153 mm |
| B | 152.5 mm |
| D | 14 mm |
| L | 75 mm |
| Class name | STAINLESS STEEL |
