RIEGLER Bleeder and venting valve, brass, straight shape, G 1/4
Type number: 224.01
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Drain and vent valve made of brass, for industrial systems, max. 25 bar - Type 224.01
The RIEGLER drain and bleed valve, brass, straight form, G 1/4 regulates or blocks the flow of media in industrial pipelines. The housing is made of brass. Designed for a maximum operating pressure of 25 bar. The operating temperature is between 0 °C and 90 °C. G 1/4 connection thread - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Max. operating pressure | 25 bar |
| Material | Brass |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 90 °C |
| Thread | G 1/4 |
| Length | 25 mm |
| Execution | with knurled screw |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
| Construction method | straight shape |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

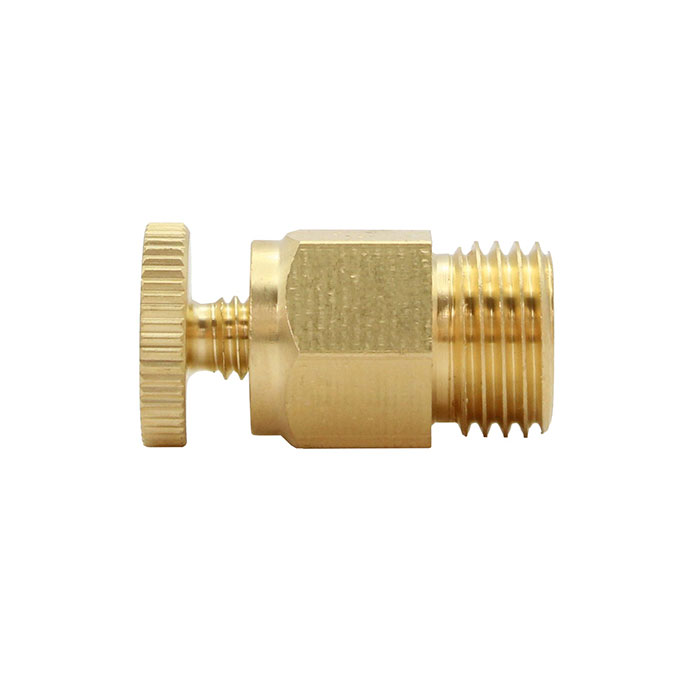

![[103741] RIEGLER Bleeder and venting valve, brass, straight shape, G 1/8](/web/image/product.template/171702/image_128/%5B103741%5D%20RIEGLER%20Bleeder%20and%20venting%20valve%2C%20brass%2C%20straight%20shape%2C%20G%201-8?unique=e14218f)
|
Type number: 224.00 |
4.22 € | |
