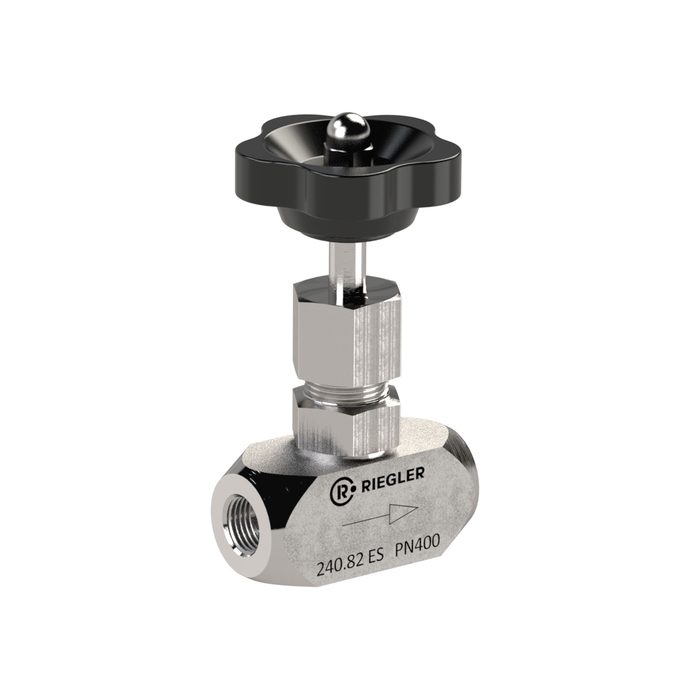

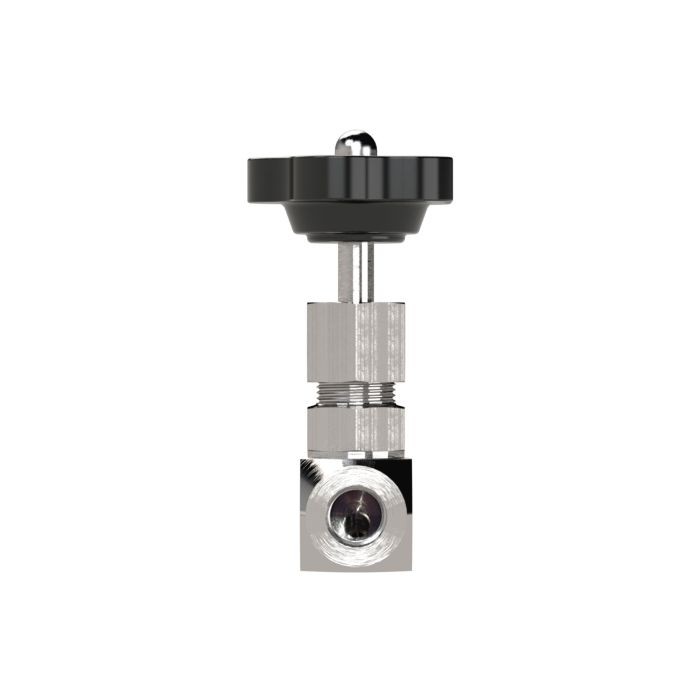

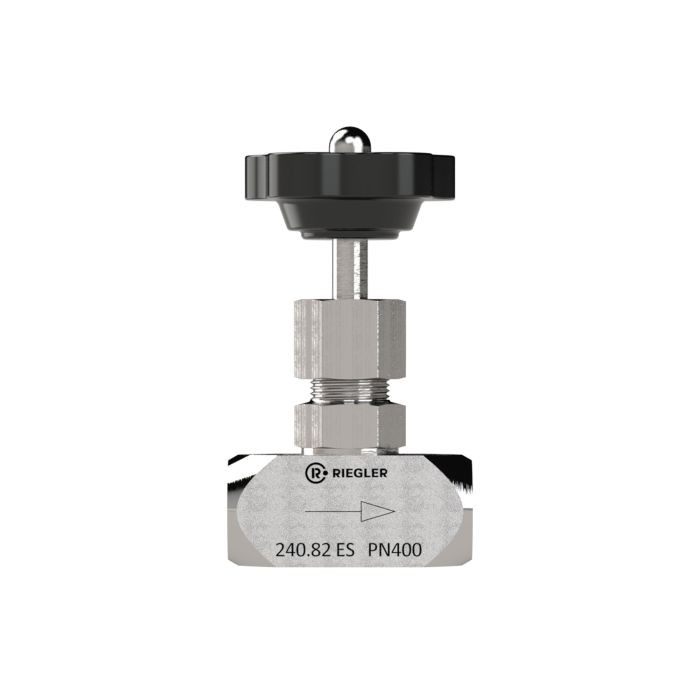

RIEGLER Needle valve, Stainless steel 1.4571, G 1/4, DN 5
Type number: 240.82 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Needle valve made of stainless steel 1.4571, for pneumatic control, G 1/4 - Type 240.82 ES
The RIEGLER needle valve, stainless steel 1.4571, G 1/4, DN 5, PN max. 400 bar controls the speed of pneumatic actuators or blocks backflow. The housing is made of stainless steel 1.4571 with PTFE seals. The operating temperature is between -20 °C and 120 °C. G 1/4 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Sealing material | PTFE |
| Material | Stainless steel 1.4571 |
| Handwheel | Plastic |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 120 °C |
| Thread | G 1/4 |
| DN | 5 |
| Max. operating pressure at 20 °C | 400 bar |

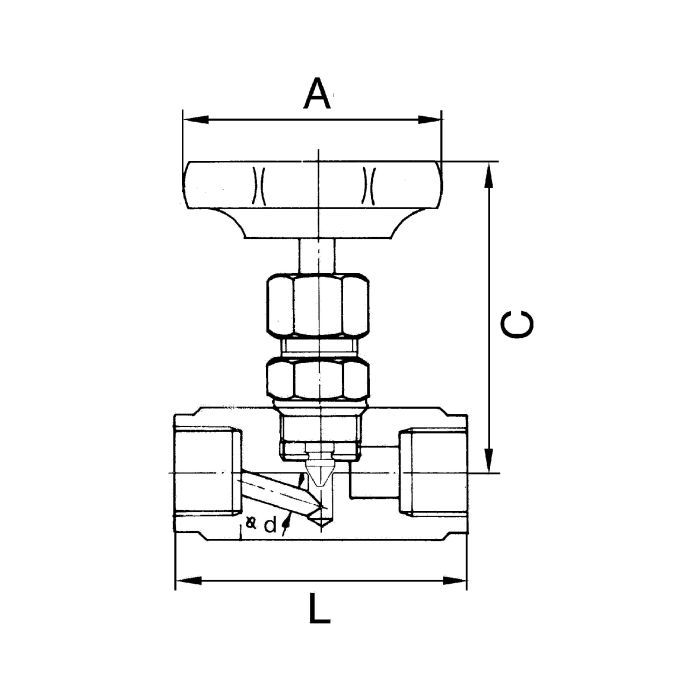

| A | 50 mm |
| C | 73 mm |
| L | 50 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103771] RIEGLER Needle valve, Stainless steel 1.4571, G 1/2, DN 8](/web/image/product.template/171732/image_128/%5B103771%5D%20RIEGLER%20Needle%20valve%2C%20Stainless%20steel%201.4571%2C%20G%201-2%2C%20DN%208?unique=f866e8c)
|
Type number: 240.84 ES |
93.57 € | |
![[103768] RIEGLER Needle valve, Stainless steel 1.4571, G 1/8, DN 4,](/web/image/product.template/171729/image_128/%5B103768%5D%20RIEGLER%20Needle%20valve%2C%20Stainless%20steel%201.4571%2C%20G%201-8%2C%20DN%204%2C?unique=cc197ed)
|
Type number: 240.81 ES |
52.84 € | |

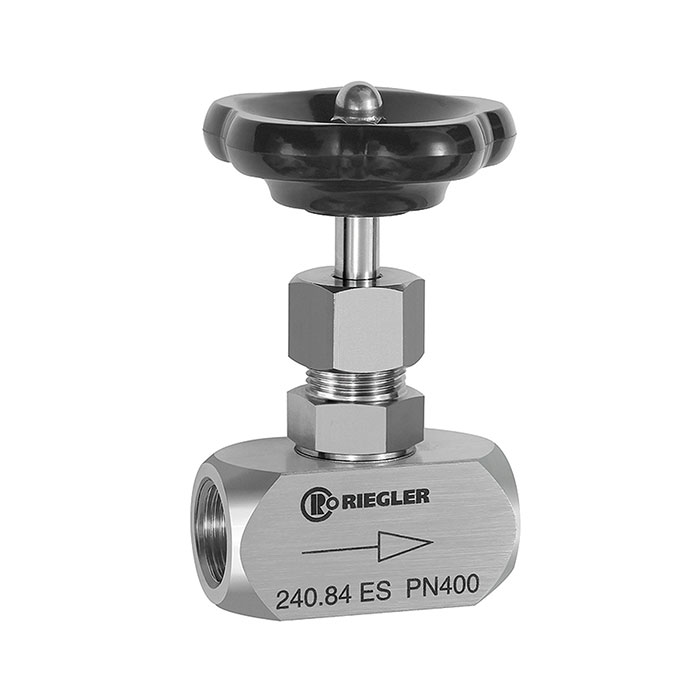

![[103773] RIEGLER Needle valve, Stainless steel 1.4571, G 1, DN 12](/web/image/product.template/171734/image_128/%5B103773%5D%20RIEGLER%20Needle%20valve%2C%20Stainless%20steel%201.4571%2C%20G%201%2C%20DN%2012?unique=31ba465)
|
Type number: 240.86 ES |
194.96 € | |
![[103772] RIEGLER Needle valve, Stainless steel 1.4571, G 3/4, DN 10](/web/image/product.template/171733/image_128/%5B103772%5D%20RIEGLER%20Needle%20valve%2C%20Stainless%20steel%201.4571%2C%20G%203-4%2C%20DN%2010?unique=78d51ec)
|
Type number: 240.85 ES |
133.05 € | |
![[103770] RIEGLER Needle valve, Stainless steel 1.4571, G 3/8, DN 6](/web/image/product.template/171731/image_128/%5B103770%5D%20RIEGLER%20Needle%20valve%2C%20Stainless%20steel%201.4571%2C%20G%203-8%2C%20DN%206?unique=f339b3c)
|
Type number: 240.83 ES |
72.08 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

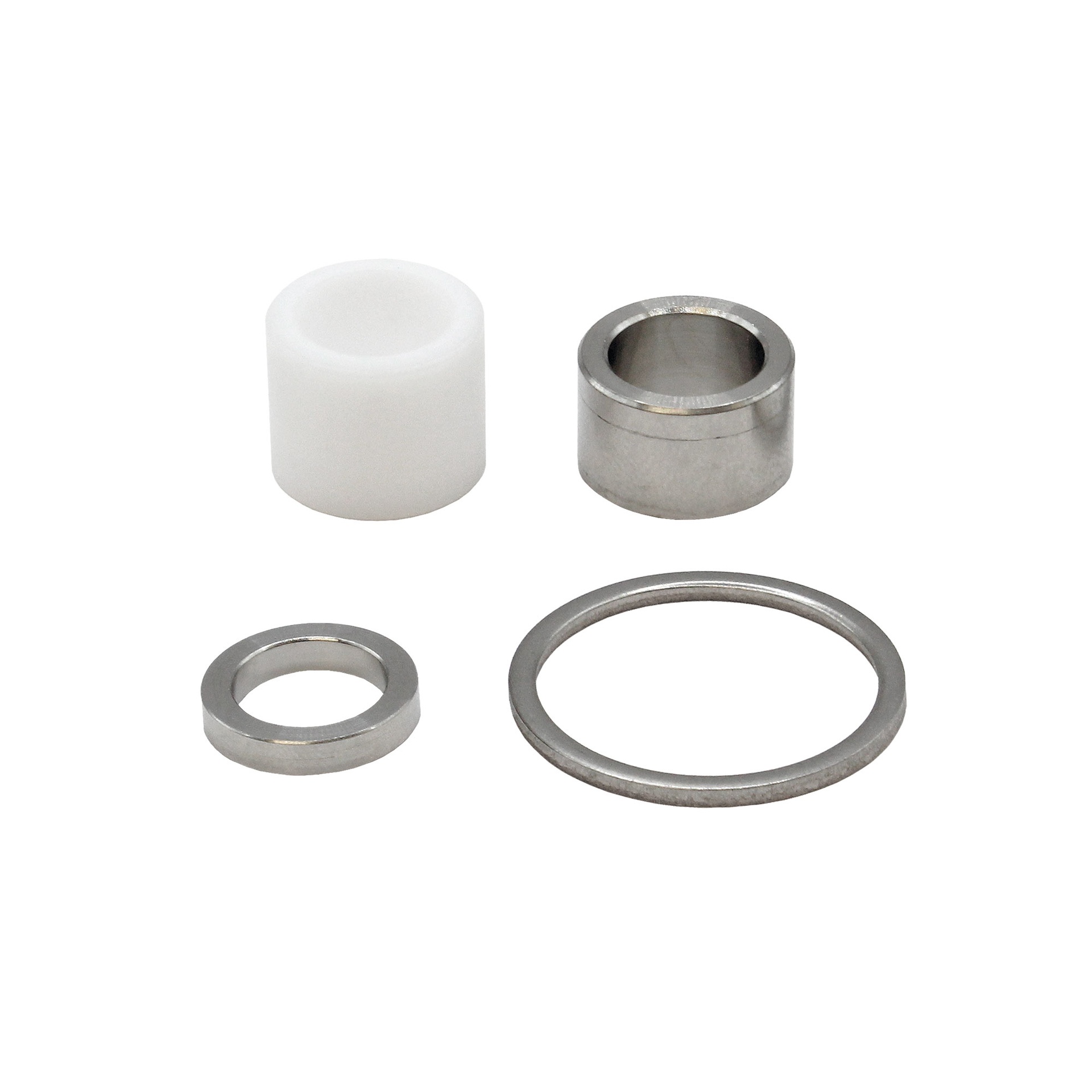

![[117521] RIEGLER gasket set for needle valve stainless steel G 1/8, G 1/4, G 3/8](/web/image/product.template/283915/image_128/%5B117521%5D%20RIEGLER%20gasket%20set%20for%20needle%20valve%20stainless%20steel%20G%201-8%2C%20G%201-4%2C%20G%203-8?unique=365fd62)
|
Type number: 22.240.2-R |
42.07 € | |
