RIEGLER Bushing - locking pusher, without spindle stroke, Brass, G 3/8
Type number: 250.33
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

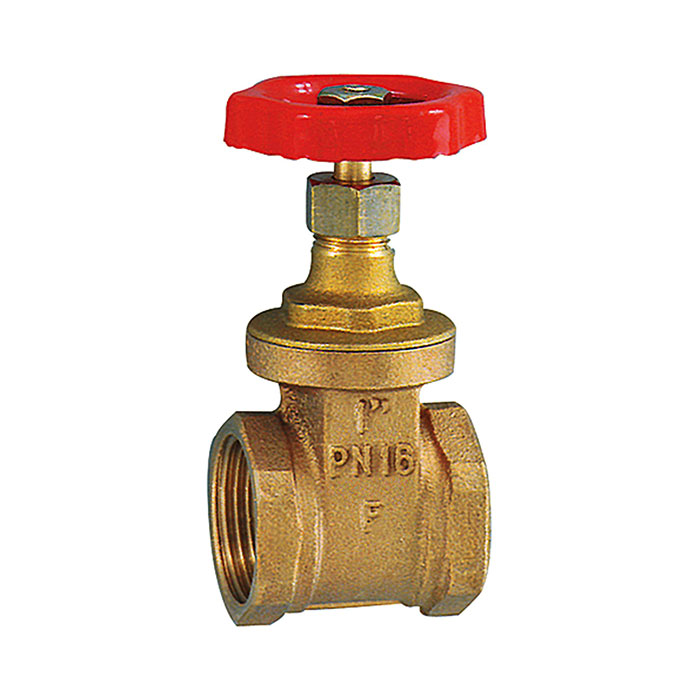

RIEGLER Socket gate valve made of brass, for industrial systems, max. 16 bar - Type 250.33
The RIEGLER sleeve gate valve, without spindle stroke, brass, G 3/8, DN 10 regulates or blocks the flow of media in industrial pipelines. The body is made of brass. Designed for a maximum operating pressure of 16 bar. Connection thread G 3/8 - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Housing | Brass |
| Max. operating pressure | 16 bar |
| Area of application | non-aggressive liquids, gases and vapors up to 120 °C |
| Handwheel | Aluminum |
| Spindle | Brass |
| Head piece | Brass |
| Sliding wedge | Brass |
| Stuffing box nut | Brass |
| Thread | G 3/8 |
| DN | 10 |
| A | 55.5 mm |
| B | 86 mm |
| L | 41 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103777] RIEGLER Bushing - locking pusher, without spindle stroke, Brass, G 1](/web/image/product.template/171738/image_128/%5B103777%5D%20RIEGLER%20Bushing%20-%20locking%20pusher%2C%20without%20spindle%20stroke%2C%20Brass%2C%20G%201?unique=4fe3660)
|
Type number: 250.36 |
28.18 € | |
![[103779] RIEGLER Bushing - locking pusher, without spindle stroke, Brass, G 1 1/2,](/web/image/product.template/171740/image_128/%5B103779%5D%20RIEGLER%20Bushing%20-%20locking%20pusher%2C%20without%20spindle%20stroke%2C%20Brass%2C%20G%201%201-2%2C?unique=1221084)
|
Type number: 250.38 |
54.99 € | |
![[103778] RIEGLER Bushing - locking pusher, without spindle stroke, Brass, G 1 1/4](/web/image/product.template/171739/image_128/%5B103778%5D%20RIEGLER%20Bushing%20-%20locking%20pusher%2C%20without%20spindle%20stroke%2C%20Brass%2C%20G%201%201-4?unique=342749e)
|
Type number: 250.37 |
39.90 € | |
![[103775] RIEGLER Bushing - locking pusher, without spindle stroke, Brass, G 1/2](/web/image/product.template/171736/image_128/%5B103775%5D%20RIEGLER%20Bushing%20-%20locking%20pusher%2C%20without%20spindle%20stroke%2C%20Brass%2C%20G%201-2?unique=adea2d5)
|
Type number: 250.34 |
16.46 € | |

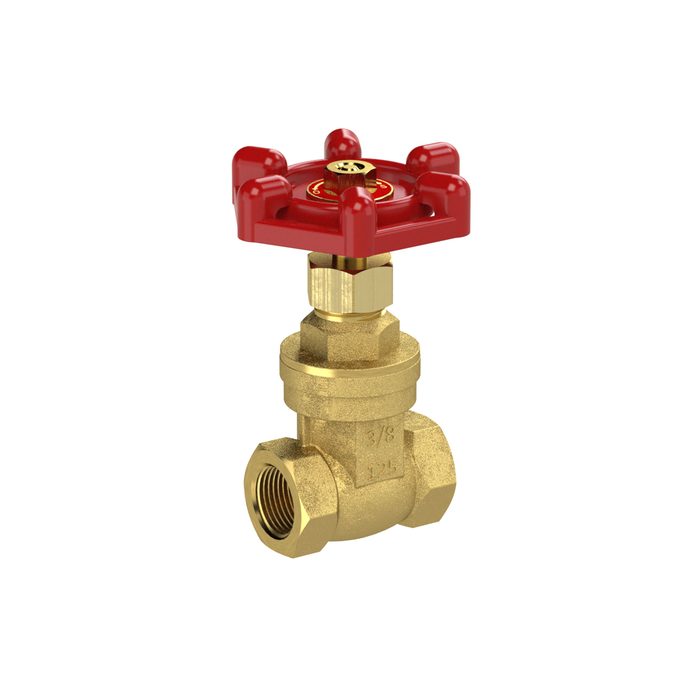

![[103780] RIEGLER Bushing - locking pusher, without spindle stroke, Brass, G 2](/web/image/product.template/171741/image_128/%5B103780%5D%20RIEGLER%20Bushing%20-%20locking%20pusher%2C%20without%20spindle%20stroke%2C%20Brass%2C%20G%202?unique=9b12119)
|
