RIEGLER Bushing - locking pusher, Stainless steel 1.4401/1.4408, G 1/2
Type number: 250.34 ES
EAN: 4047322062961
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

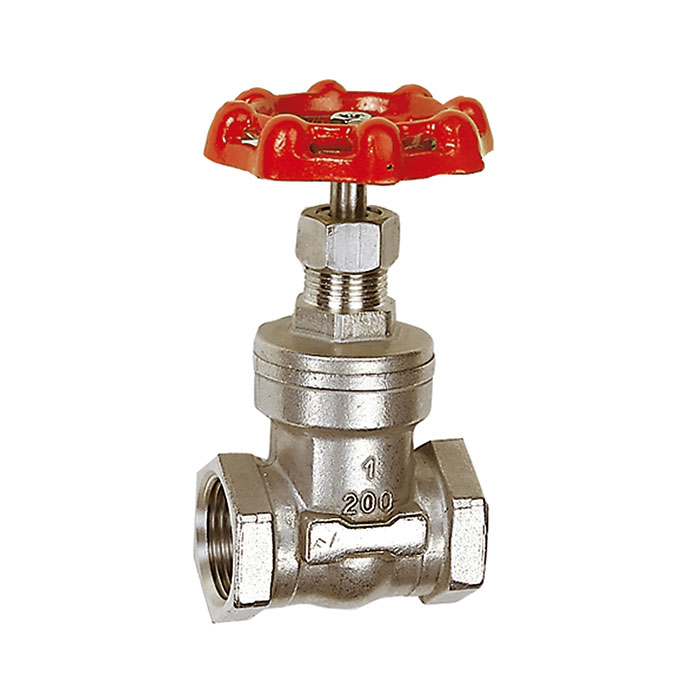

Socket gate valve, stainless steel 1.4401/1.4408, max. medium and ambient temperature 160 °C, G 1/2, DN 15, PN max. 14 bar
| Housing | Stainless steel 1.4401 / 1.4408 |
| Sealing material | PTFE |
| Max. operating pressure | 14 bar |
| Medium temperature max. | 160 °C |
| Ambient temperature max. | 160 °C |
| Interior parts | Stainless steel 1.4401 / 1.4408 |
| Handwheel | Aluminum |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1/2 |
| DN | 15 |
| A | 70 mm |
| B | 100 mm |
| L | 55 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | STAINLESS STEEL |
