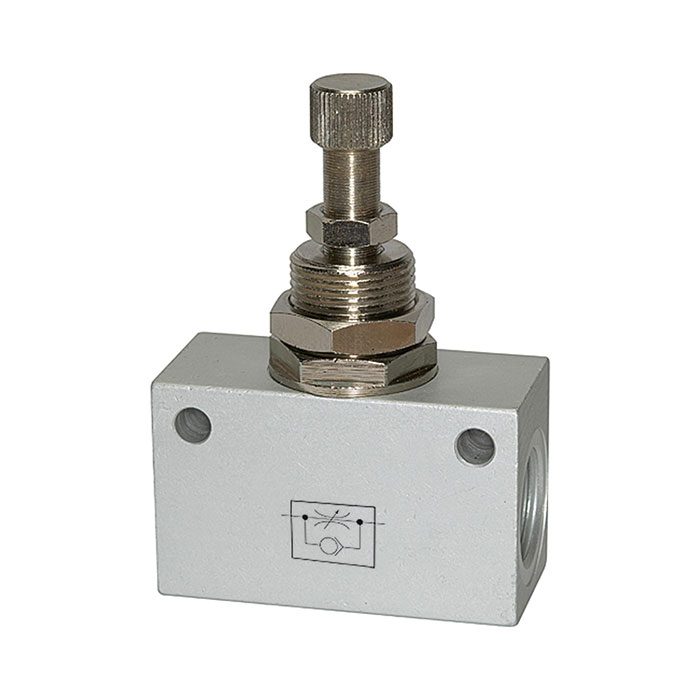

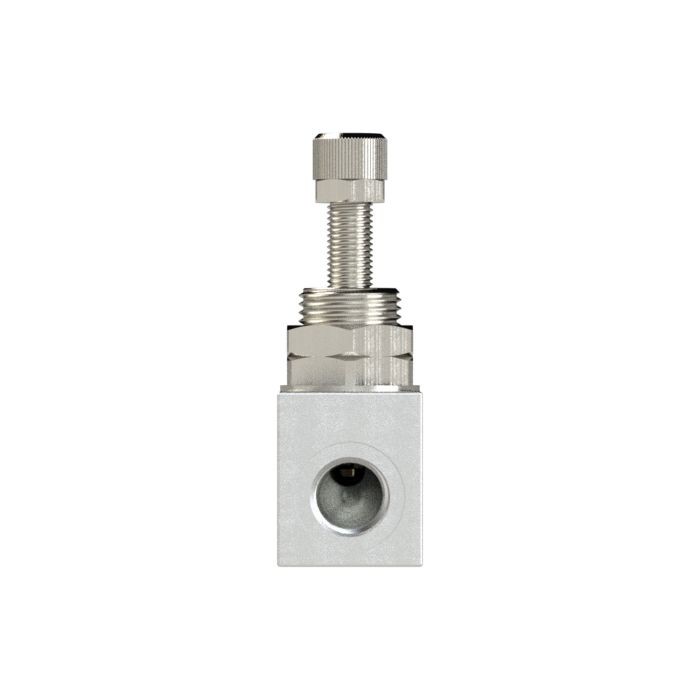

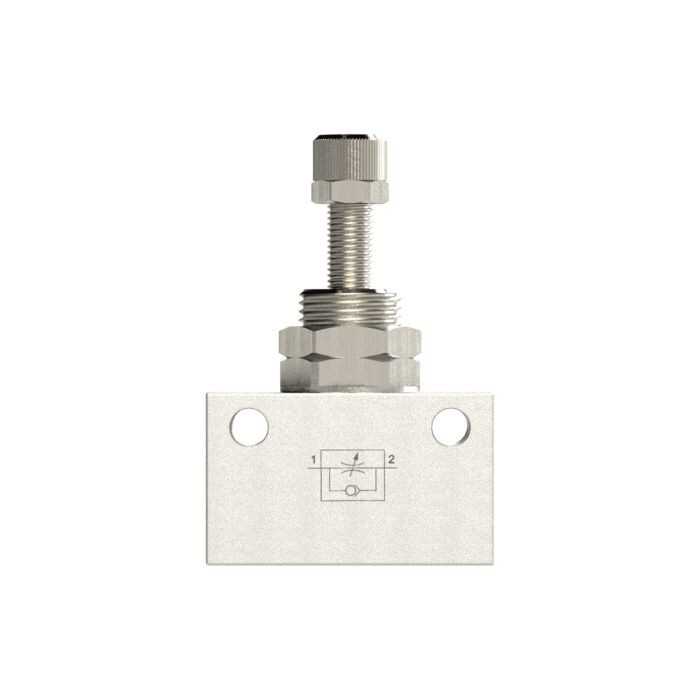

RIEGLER Throttle check valve, in block shape, Anodised aluminium, G 1/4
Type number: 225.34
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
103804EAN :
4047322040600Category :
Unidirectional Flow Control ValvesWeight :
0.17 kgRIEGLER Throttle check valve made of anodized aluminium, for pneumatic control, max. 10 bar - Type 225.34
The RIEGLER throttle check valve, in block form, anodized aluminium, G 1/4 regulates the speed of pneumatic actuators or blocks backflow. The housing is made of anodized aluminium with NBR seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -10 °C and 70 °C. G 1/4 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Housing | Anodized aluminum |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Interior parts | Brass |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 70 °C |
| Thread | G 1/4 |

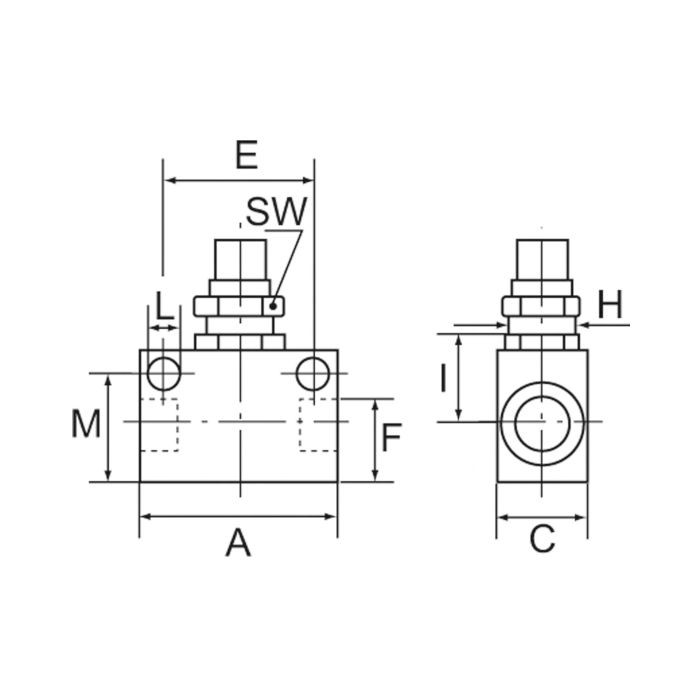

| Control panel thread | M18x1.5 |
| SW | 22 mm |
| A | 50 mm |
| C | 25 mm |
| L | 6.5 mm |
| E | 35 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| I | 24 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b, 6c |
| REACH Info | contains SVHC substance |
| M | 23.8 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, AL2011 |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103806] RIEGLER Throttle check valve, in block shape, Anodised aluminium, G 1/2](/web/image/product.template/171767/image_128/%5B103806%5D%20RIEGLER%20Throttle%20check%20valve%2C%20in%20block%20shape%2C%20Anodised%20aluminium%2C%20G%201-2?unique=277d679)
|
Type number: 225.36 |
24.64 € | |
![[103803] RIEGLER Throttle check valve, in block shape, Anodised aluminium, G 1/8](/web/image/product.template/171764/image_128/%5B103803%5D%20RIEGLER%20Throttle%20check%20valve%2C%20in%20block%20shape%2C%20Anodised%20aluminium%2C%20G%201-8?unique=377aacb)
|
Type number: 225.33 |
10.29 € | |
![[103805] RIEGLER Throttle check valve, in block shape, Anodised aluminium, G 3/8](/web/image/product.template/171766/image_128/%5B103805%5D%20RIEGLER%20Throttle%20check%20valve%2C%20in%20block%20shape%2C%20Anodised%20aluminium%2C%20G%203-8?unique=3e19c78)
|
Type number: 225.35 |
20.62 € | |

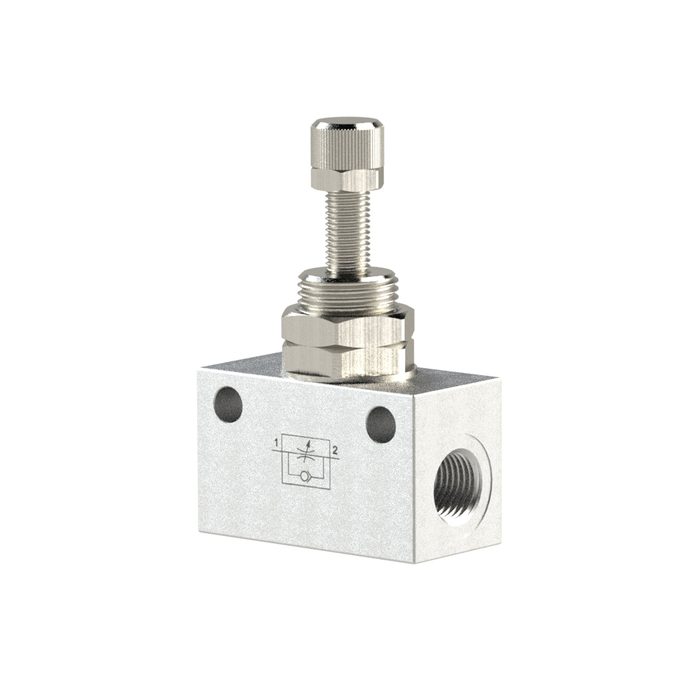

![[103802] RIEGLER Throttle check valve, in block shape, Anodised aluminium, M5](/web/image/product.template/171763/image_128/%5B103802%5D%20RIEGLER%20Throttle%20check%20valve%2C%20in%20block%20shape%2C%20Anodised%20aluminium%2C%20M5?unique=6cd9a57)
|
