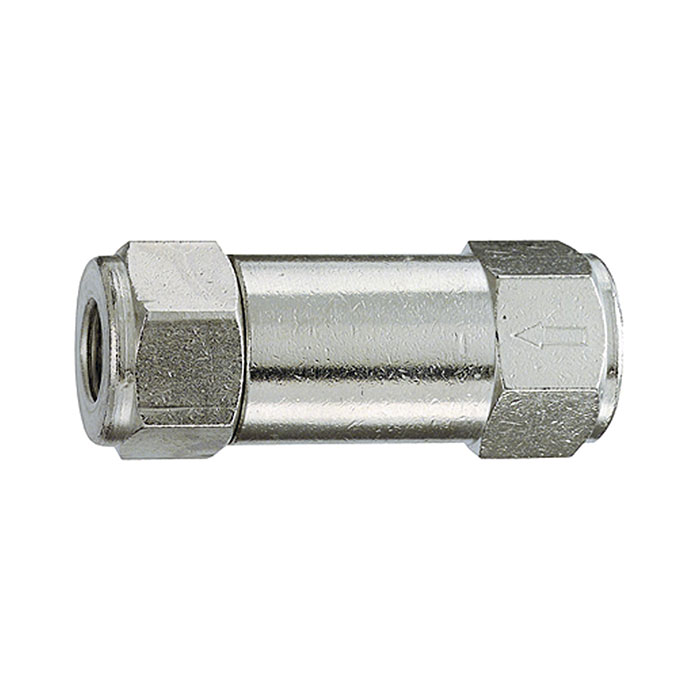

RIEGLER Check valve, Small design, nickel-plated brass, G 1/8, 0.2 bar
Type number: 228.01
EAN: 4047322051309
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Non-return valve, small design, MS nickel-plated, max. medium/ambient temp. 70 °C, G 1/8, PN max. 10 bar, opening pressure 0.2 bar
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Opening pressure min. | 0.2 bar |
| Material | Nickel-plated brass |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 70 °C |
| Thread | G 1/8 |
| SW | 13 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| Length | 36.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, CW617N |
| Class name | EASY |
