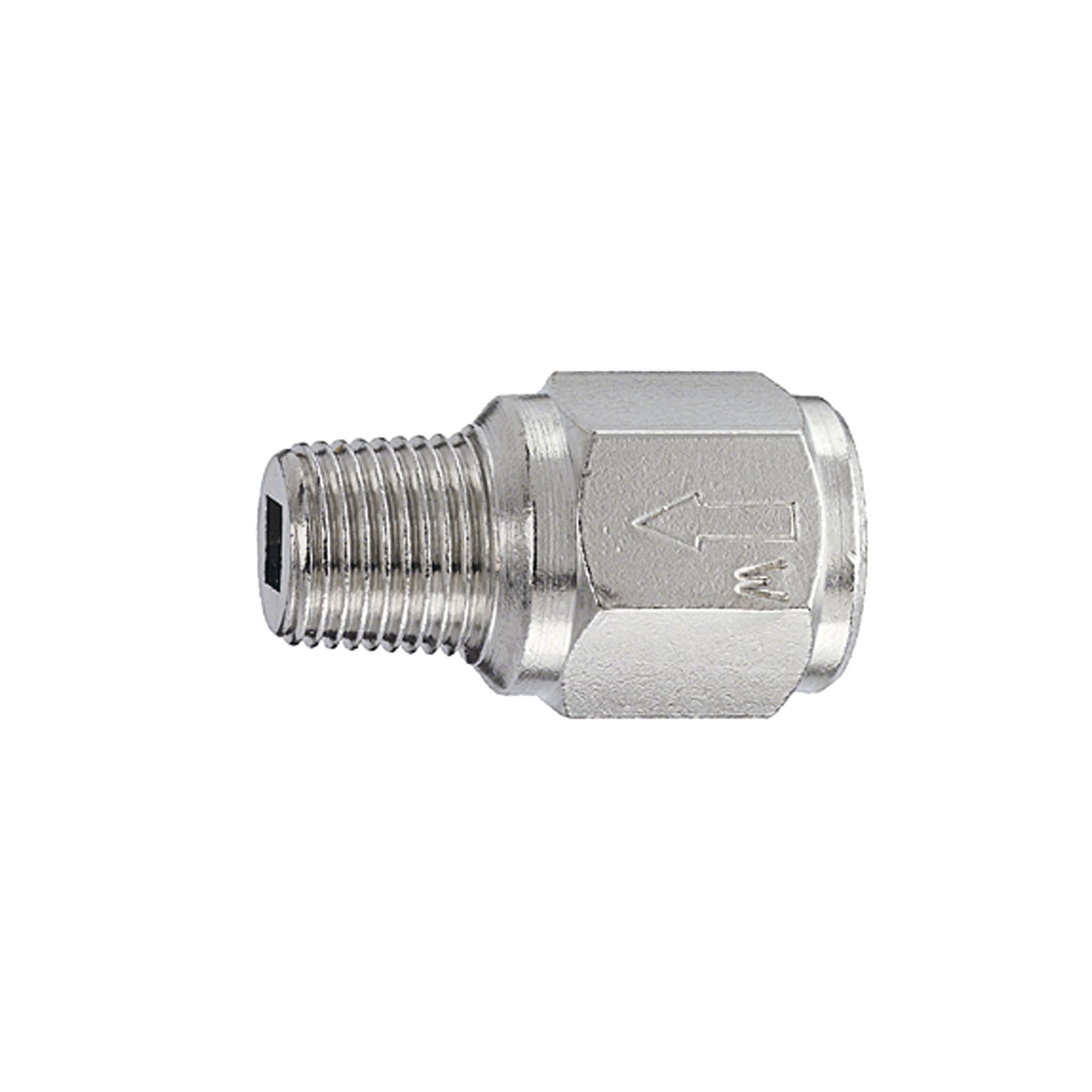

RIEGLER Check valve, Most compact design, nickel-plated brass, R/Rp 1/8
Type number: 228.11
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Nickel-plated brass non-return valve, for industrial systems, max. 10 bar - Type 228.11
The RIEGLER non-return valve, miniature design, MS nickel-plated, R/Rp 1/8, 0.2 bar regulates or blocks the flow of media in industrial pipelines. The housing is made of nickel-plated brass with NBR seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -10 °C and 70 °C. Connection thread R/Rp 1/8 (R/Rp thread to ISO 7-1) - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Opening pressure min. | 0.15 bar |
| Material | Nickel-plated brass |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 70 °C |
| Thread | R/Rp 1/8 |
| SW | 14 mm |
| Thread standard | R/Rp thread to ISO 7-1 |
| Length | 26 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, CW617N |
| Class name | EASY |
