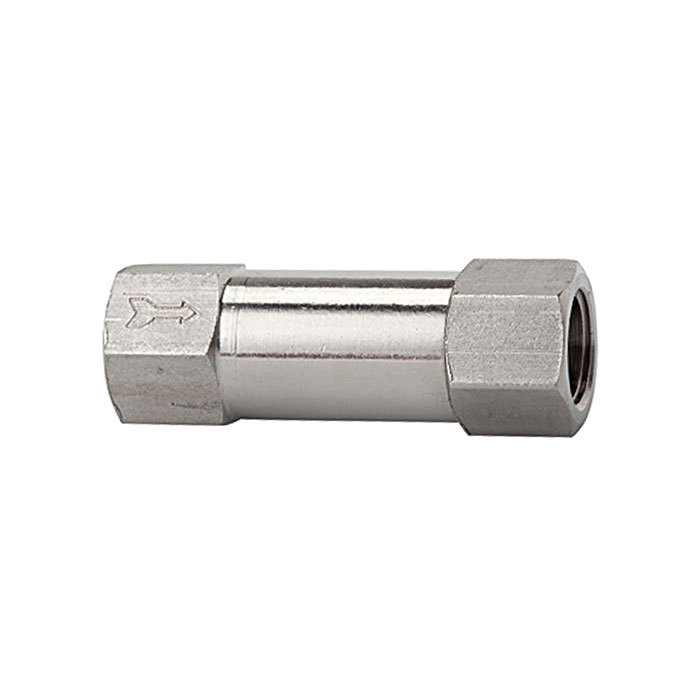

RIEGLER Check valve, Straight-way variant, Stainless steel 1.4404, G 1/8

https://www.filcom-technik.de/web/image/product.template/171808/image_1920?unique=f4fe8e2

Type number: 228.01-ES

43.49 € 43.49 EUR 43.49 € VAT Included

50.76 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

103847

EAN :

4047322285148

Category :

Unidirectional Valves

Weight :

0.02 kg

RIEGLER Check valve made of stainless steel 1.4404, for industrial systems, max. 10 bar - Type 228.01-ES

The RIEGLER non-return valve, straight through, ES 1.4404, G 1/8, 0.2 bar regulates or blocks the flow of media in industrial pipelines. The housing is made of stainless steel 1.4404 with FPM seals. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -10 °C and 150 °C. G 1/8 connection thread - suitable for common industrial standards. Reliable media control.

Field of application

Typical areas of application: Compressed air, gases and liquids.

Housing Stainless steel 1.4404
Sealing material FPM
Max. operating pressure 10 bar
Opening pressure min. 0.2 bar
Operating temperature min. -10 °C
Operating temperature max. 150 °C
Spring Stainless steel 1.4319
Thread G 1/8
SW 13 mm
Length 40 mm
REACH SVHC1 Substance Name no
CAS No. SVHC 1 none CAS No.
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive no entry
Share of SVHC substance in % for RoHS 0
Exception no exception
REACH Info no SVHC substance contained
Share of SVHC SCIP no SVHC substance
Proportion of SVHC substance in SCIP no SVHC substance contained
Material identification none
Class name STAINLESS STEEL
