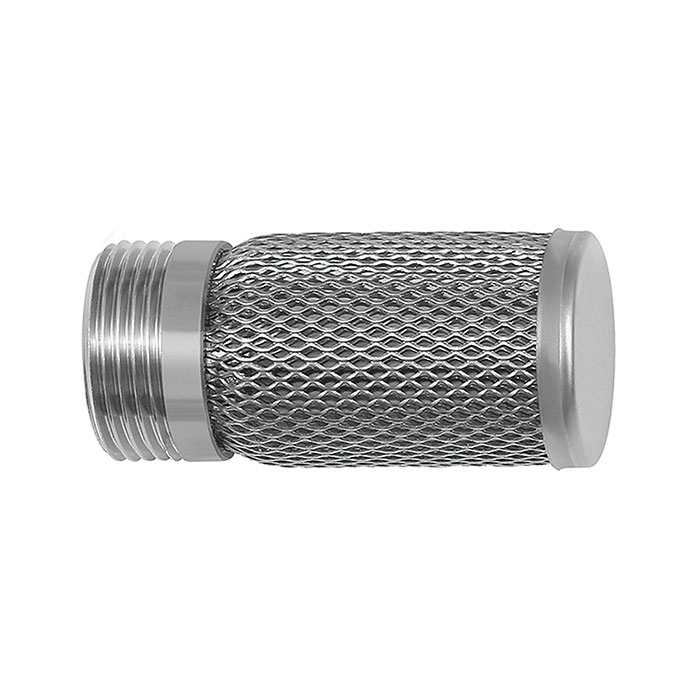

RIEGLER Suction cage for check valve, Stainless steel 1.4301, G 1/2
Type number: SKR-12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Suction strainer for non-return valves made of stainless steel 1.4301, G 1/2 - type SKR-12
The RIEGLER suction strainer for non-return valves, stainless steel 1.4301, G 1/2 regulates or blocks the flow of media in industrial pipelines. The housing is made of stainless steel 1.4301. Connection thread G 1/2 - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Temperature range max. | 150 °C |
| Housing | Stainless steel 1.4301 |
| Filter fabric | Stainless steel 1.4301 |
| Thread | G 1/2 |
| Mesh size | 1 mm |

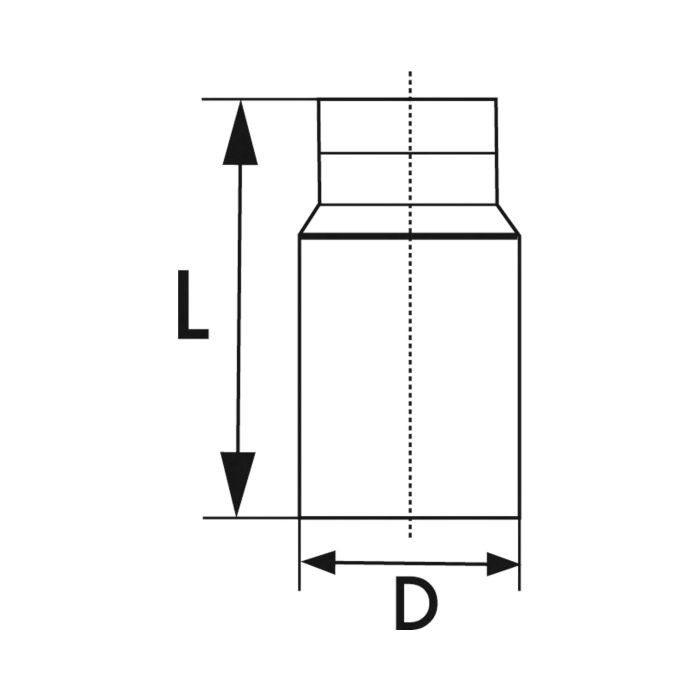

| D | 22 mm |
| L | 55 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
