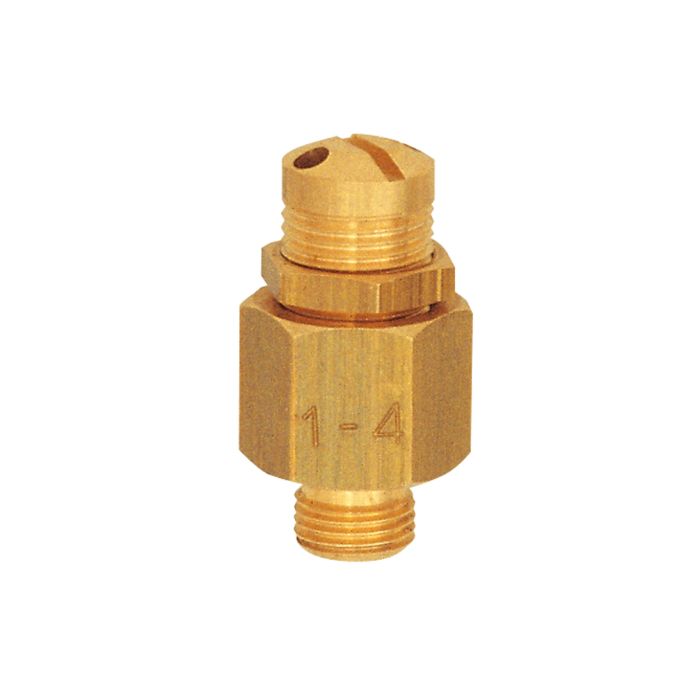

RIEGLER Mini bleeder valve, Brass, G 1/8, Trigger pressure 1 - 4 bar
Type number: 218.11
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
103902EAN :
4047322034937Category :
Safety valves & pressure relief valvesWeight :
0.03 kgMini blow-off valve, MS, not component-tested, operating temp. -20 °C to 180 °C, PN max. 0.5-60 bar, G 1/8, set pressure 1.0-4.0 bar
| Sealing material | FKM |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 60 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Thread | G 1/8 |
| SW | 16 mm |
| Response pressure min. | 1 bar |
| Response pressure max. | 4 bar |
| Max. blow-off capacity | 200 l/min |
| C | 27 mm |
| D | 7 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| do | 3 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
