RIEGLER Mini bleeder valve, Brass, G 1/4, Trigger pressure 10 - 18 bar
Type number: 218.24
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
103912EAN :
4047322035187Category :
Safety Valves & Pressure Relief ValvesWeight :
0.04 kgRIEGLER Mini blow-off valve for industrial systems, max. 60 bar, G 1/4 - Type 218.24
The RIEGLER mini blow-off valve, brass, G 1/4, response pressure 10.0 - 18.0 bar reliably protects compressed air systems and containers against impermissible overpressure. with FKM seals. The operating pressure range is 0.5 bar to 60 bar. The operating temperature is between -20 °C and 180 °C. G 1/4 connection thread - suitable for common industry standards. Reliable overpressure protection for safe systems.
Field of application
Typical areas of application: Pressure vessels, compressor systems and piping systems.
| Sealing material | FKM |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 60 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Thread | G 1/4 |
| SW | 16 mm |
| Response pressure min. | 10 bar |
| Response pressure max. | 18 bar |
| Max. blow-off capacity | 870 l/min |
| C | 27 mm |
| D | 7 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| do | 3 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103908] RIEGLER Mini bleeder valve, Brass, G 1/4, Trigger pressure 0.5 - 1 bar](/web/image/product.template/171856/image_128/%5B103908%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%20Brass%2C%20G%201-4%2C%20Trigger%20pressure%200.5%20-%201%20bar?unique=1829c66)
|
Type number: 218.20 |
7.77 € | |

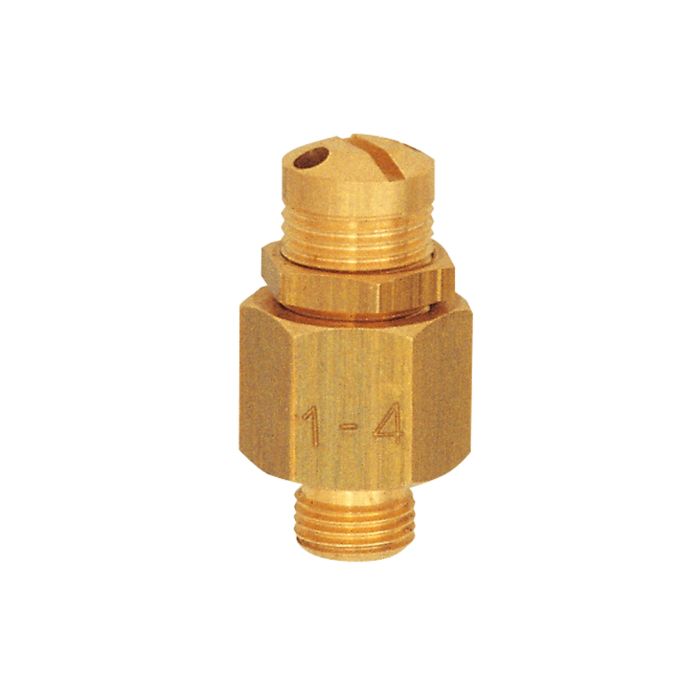

![[103909] RIEGLER Mini bleeder valve, Brass, G 1/4, Trigger pressure 1 - 4 bar](/web/image/product.template/171857/image_128/%5B103909%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%20Brass%2C%20G%201-4%2C%20Trigger%20pressure%201%20-%204%20bar?unique=535389c)
|
