RIEGLER Mini bleeder valve, 1.4305, G 1/8, Trigger pressure 0.5 - 1 bar
Type number: 218.10-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
103915EAN :
4047322210959Category :
Safety valves & pressure relief valvesWeight :
0.03 kgMini blow-off valve, ES, not component-tested, operating temp. -20 °C to 180 °C, PN max. 0.5-60 bar, G 1/8, set pressure 0.5-1.0 bar
| Sealing material | FKM |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 60 bar |
| Material | Stainless steel 1.4305 |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Spring | Stainless steel 1.4310 |
| Thread | G 1/8 |
| SW | 16 mm |
| Response pressure min. | 0.5 bar |
| Response pressure max. | 1 bar |
| Max. blow-off capacity | 50 l/min |
| C | 27 mm |
| D | 7 mm |
| do | 3 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103919] RIEGLER Mini bleeder valve, 1.4305, G 1/8, Trigger pressure 10 - 18 bar](/web/image/product.template/171867/image_128/%5B103919%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-8%2C%20Trigger%20pressure%2010%20-%2018%20bar?unique=5444366)
|
Type number: 218.14-ES |
22.26 € | |
![[103916] RIEGLER Mini bleeder valve, 1.4305, G 1/8, Trigger pressure 1 - 4 bar](/web/image/product.template/171864/image_128/%5B103916%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-8%2C%20Trigger%20pressure%201%20-%204%20bar?unique=1964cf1)
|
Type number: 218.11-ES |
22.26 € | |
![[103920] RIEGLER Mini bleeder valve, 1.4305, G 1/8, Trigger pressure 16 - 32 bar](/web/image/product.template/171868/image_128/%5B103920%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-8%2C%20Trigger%20pressure%2016%20-%2032%20bar?unique=d69a9be)
|
Type number: 218.15-ES |
22.26 € | |

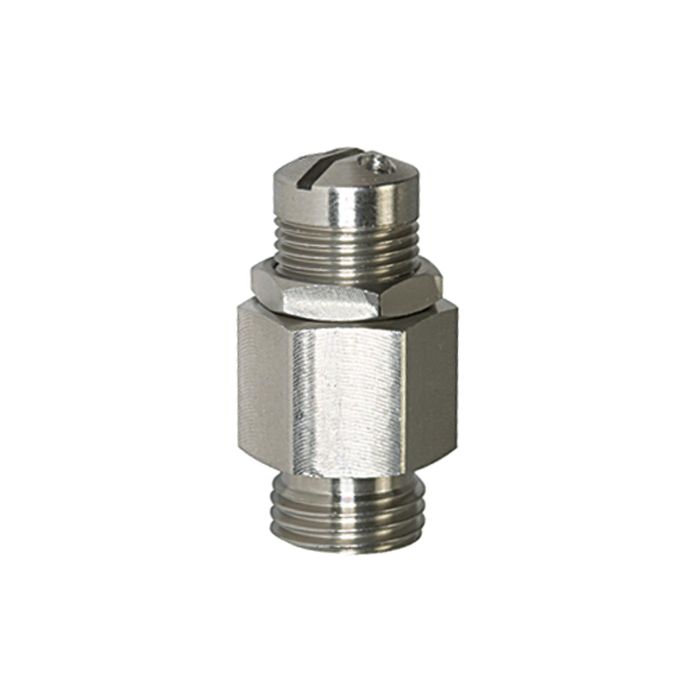

![[103921] RIEGLER Mini bleeder valve, 1.4305, G 1/8, Trigger pressure 30 - 60 bar](/web/image/product.template/171869/image_128/%5B103921%5D%20RIEGLER%20Mini%20bleeder%20valve%2C%201.4305%2C%20G%201-8%2C%20Trigger%20pressure%2030%20-%2060%20bar?unique=a7ee286)
|
