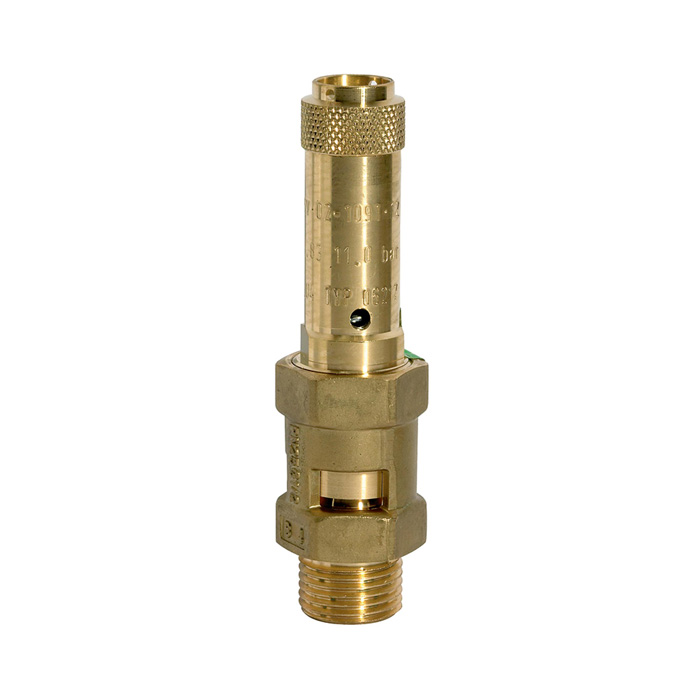

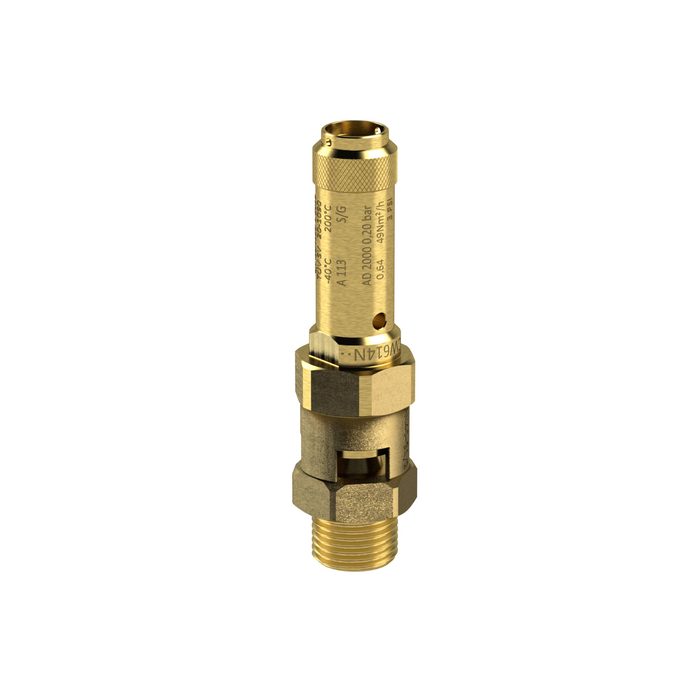

RIEGLER Safety valve, Brass, G 3/4, Trigger pressure 9 bar
Type number: 229.02-9,0
EAN: 4047322052429
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
104888EAN :
4047322052429Category :
Safety Valves and Pressure Limiting ValvesWeight :
0.38 kgSafety valve, high-performance version, brass, operating temp. -40 °C to 200 °C, G 3/4, SW 32, set pressure 9 bar
| Housing | Brass |
| Sealing material | FPM |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 26 bar |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 200 °C |
| Thread | G 3/4 |
| SW | 32 mm |
| Response pressure min. | 9 bar |
| A | 16 mm |
| H | 110 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| Pressure spring | Carbon steel |
| REACH Info | contains SVHC substance |
| do | 15 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | MAX |
