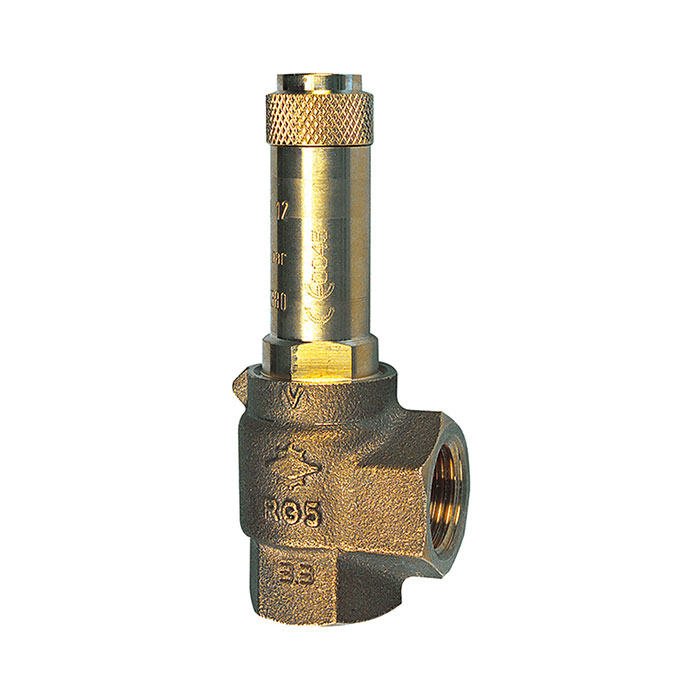

RIEGLER Corner safety valve, G 3/4, Trigger pressure 9 bar
Type number: 222.04-9,0
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
105479EAN :
4047322181983Category :
Safety valves & pressure relief valvesWeight :
0.39 kgAngle safety valve, for saturated steam, gunmetal, operating temp. -10 to 225 °C, G 3/4, SW 32, set pressure 9 bar
| Housing | Gunmetal |
| Membrane | PTFE |
| Spring cover | Brass |
| Interior parts | Brass |
| Setting range | 0.2 - 20 bar (depending on connection size and medium) |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 185 °C |
| Spring | Carbon steel |
| Entry and exit | female thread type G according to DIN EN ISO 228-1 |
| Operating temperature | -10 °C to 150 °C (EPDM) 185 °C (PTFE) |
| Thread | G 3/4 |
| SW | 32 mm |
| Setting range min. | 0.2 bar |
| Response pressure min. | 9 bar |
| H | 111 mm |
| L1 | 30 mm |
| L2 | 25 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Setting range max. | 20 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | FLEX |
