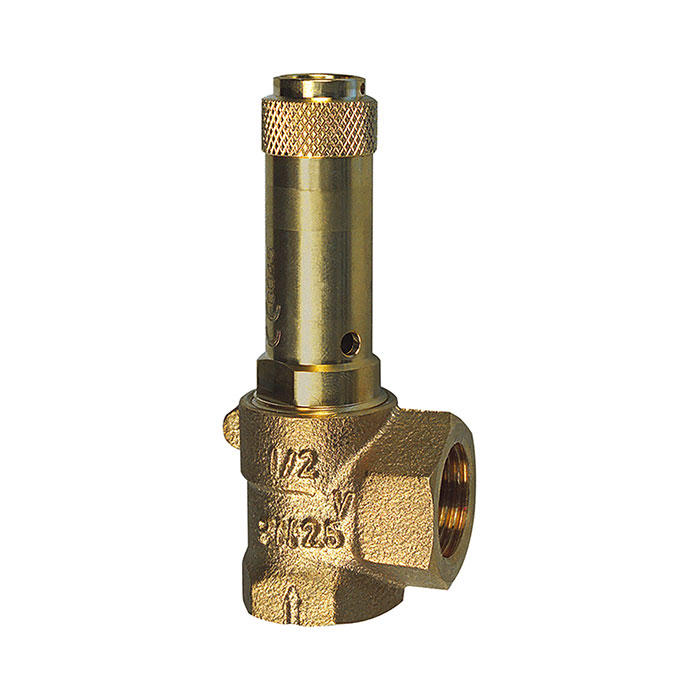

RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 1.5 bar
Type number: 221.03-1,5
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
105527EAN :
4047322039154Category :
Safety valves & pressure relief valvesWeight :
0.23 kgCorner safety valve, for liquids, Red brass, NBR, Operating temp. -10 °C to 110 °C, G 1/2, AF 27, Trigger pressure 1.5 bar
| Housing | Gunmetal |
| Membrane | NBR |
| Spring cover | Brass |
| Interior parts | Brass |
| Setting range | 1 - 16 bar (depending on the seal used) |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 110 °C |
| Spring | Carbon steel |
| Entry and exit | female thread type G according to DIN EN ISO 228-1 |
| Thread | G 1/2 |
| SW | 27 mm |
| Setting range min. | 1 bar |
| Response pressure min. | 1.5 bar |
| H | 92 mm |
| L1 | 25 mm |
| L2 | 20 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Setting range max. | 10 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[105554] RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 10.5 bar](/web/image/product.template/173502/image_128/%5B105554%5D%20RIEGLER%20Corner%20safety%20valve%2C%20liquids%2C%20G%201-2%2C%20Trigger%20pressure%2010.5%20bar?unique=0b0853f)
|
Type number: 221.03-10,5 |
60.15 € | |
![[105553] RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 10 bar](/web/image/product.template/173501/image_128/%5B105553%5D%20RIEGLER%20Corner%20safety%20valve%2C%20liquids%2C%20G%201-2%2C%20Trigger%20pressure%2010%20bar?unique=4bb2bfd)
|
Type number: 221.03-10,0 |
60.15 € | |
![[105524] RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 1.1 bar](/web/image/product.template/173472/image_128/%5B105524%5D%20RIEGLER%20Corner%20safety%20valve%2C%20liquids%2C%20G%201-2%2C%20Trigger%20pressure%201.1%20bar?unique=8ffe86c)
|
Type number: 221.03-1,1 |
60.15 € | |
![[105555] RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 11 bar](/web/image/product.template/173503/image_128/%5B105555%5D%20RIEGLER%20Corner%20safety%20valve%2C%20liquids%2C%20G%201-2%2C%20Trigger%20pressure%2011%20bar?unique=1cbe7c4)
|
Type number: 221.03-11,0 |
60.15 € | |
![[105525] RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 1.2 bar](/web/image/product.template/173473/image_128/%5B105525%5D%20RIEGLER%20Corner%20safety%20valve%2C%20liquids%2C%20G%201-2%2C%20Trigger%20pressure%201.2%20bar?unique=48658b8)
|
Type number: 221.03-1,2 |
60.15 € | |
![[105556] RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 12 bar](/web/image/product.template/173504/image_128/%5B105556%5D%20RIEGLER%20Corner%20safety%20valve%2C%20liquids%2C%20G%201-2%2C%20Trigger%20pressure%2012%20bar?unique=b34104d)
|
Type number: 221.03-12,0 |
60.15 € | |
![[105526] RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 1.3 bar](/web/image/product.template/173474/image_128/%5B105526%5D%20RIEGLER%20Corner%20safety%20valve%2C%20liquids%2C%20G%201-2%2C%20Trigger%20pressure%201.3%20bar?unique=86cb4bc)
|
Type number: 221.03-1,3 |
60.15 € | |
![[151164] RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 13 bar](/web/image/product.template/210902/image_128/%5B151164%5D%20RIEGLER%20Corner%20safety%20valve%2C%20liquids%2C%20G%201-2%2C%20Trigger%20pressure%2013%20bar?unique=902b271)
|
Typennummer: 221.03-13,0 |
96.14 € | |
![[105557] RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 14 bar](/web/image/product.template/173505/image_128/%5B105557%5D%20RIEGLER%20Corner%20safety%20valve%2C%20liquids%2C%20G%201-2%2C%20Trigger%20pressure%2014%20bar?unique=b779204)
|
Type number: 221.03-14,0 |
60.15 € | |
![[105558] RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 15 bar](/web/image/product.template/173506/image_128/%5B105558%5D%20RIEGLER%20Corner%20safety%20valve%2C%20liquids%2C%20G%201-2%2C%20Trigger%20pressure%2015%20bar?unique=0300dce)
|
Type number: 221.03-15,0 |
60.15 € | |
![[105559] RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 16 bar](/web/image/product.template/173507/image_128/%5B105559%5D%20RIEGLER%20Corner%20safety%20valve%2C%20liquids%2C%20G%201-2%2C%20Trigger%20pressure%2016%20bar?unique=f55adba)
|
Type number: 221.03-16,0 |
60.15 € | |
![[105528] RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 1.7 bar](/web/image/product.template/173476/image_128/%5B105528%5D%20RIEGLER%20Corner%20safety%20valve%2C%20liquids%2C%20G%201-2%2C%20Trigger%20pressure%201.7%20bar?unique=d634606)
|
Type number: 221.03-1,7 |
60.15 € | |

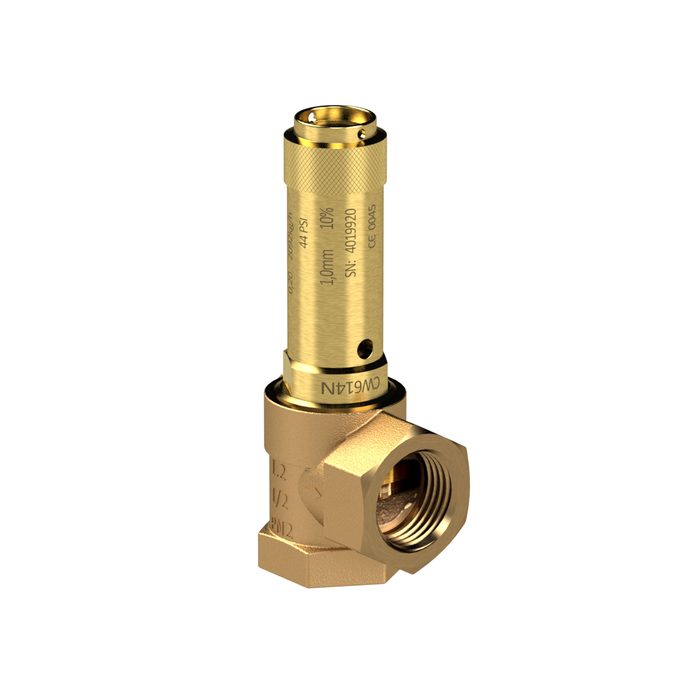

![[105523] RIEGLER Corner safety valve, liquids, G 1/2, Trigger pressure 1 bar](/web/image/product.template/173471/image_128/%5B105523%5D%20RIEGLER%20Corner%20safety%20valve%2C%20liquids%2C%20G%201-2%2C%20Trigger%20pressure%201%20bar?unique=7444f3a)
|
