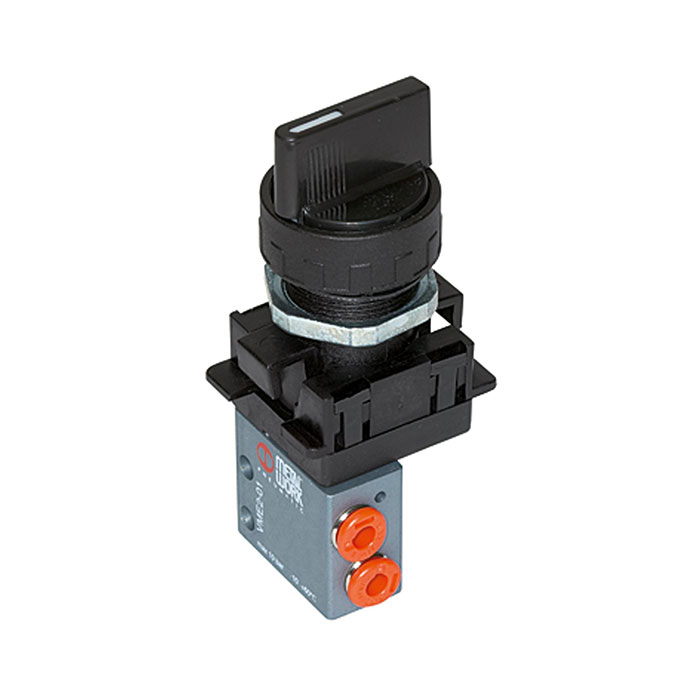

RIEGLER 3/2-way mini valve, manual, Rotating knob, NC, bistable, M5 side
Type number: 512.214
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
3/2-way miniature valve, manual, rotary knob, NC, bistable, M5 lateral, operating pressure 0.5 - 10 bar, operating temp. -10 °C to 60 °C
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves VME series |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Spring | stainless steel |
| Actuating pressure at 6 bar | 8 N |
| Valve body | Aluminum |
| Push button | Nickel-plated brass |
| Function | 3/2 NC |
| Actuation | bistable |
| Nominal Ø | 2.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | M5 internal thread on the side |
| RoHS material information | RoHS compliant |
| Flow rate | 35 Nl/min |
| Flow rate | 60 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106403] RIEGLER 3/2-way mini valve, manual, Rotating knob, NC, bistable, 4mm side](/web/image/product.template/175460/image_128/%5B106403%5D%20RIEGLER%203-2-way%20mini%20valve%2C%20manual%2C%20Rotating%20knob%2C%20NC%2C%20bistable%2C%204mm%20side?unique=7700fb0)
|
Type number: 512.213 |
43.98 € | |
![[106401] RIEGLER 3/2-way mini valve manual, Rotating knob, NC, monostable,4mm side](/web/image/product.template/175458/image_128/%5B106401%5D%20RIEGLER%203-2-way%20mini%20valve%20manual%2C%20Rotating%20knob%2C%20NC%2C%20monostable%2C4mm%20side?unique=7700fb0)
|
Type number: 512.203 |
43.98 € | |

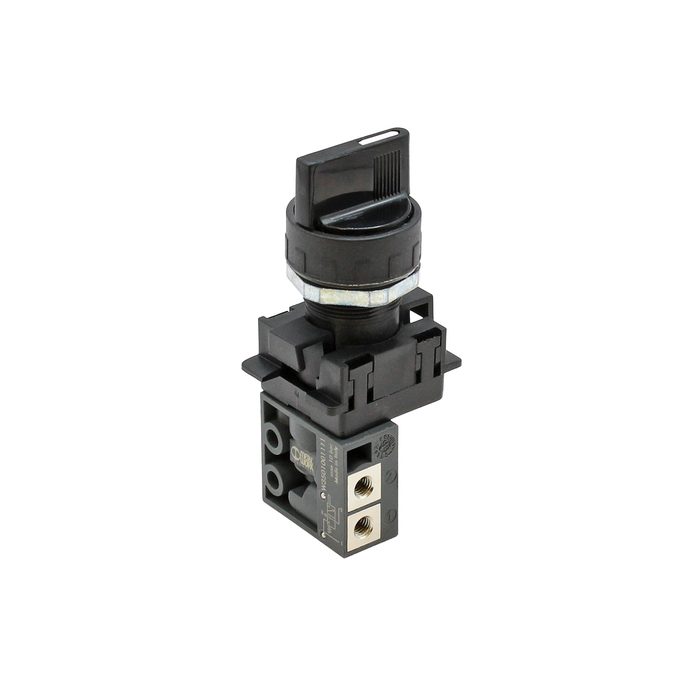

![[106402] RIEGLER 3/2-way mini valve, manual, Rotating knob, NC, monostable,M5 side](/web/image/product.template/175459/image_128/%5B106402%5D%20RIEGLER%203-2-way%20mini%20valve%2C%20manual%2C%20Rotating%20knob%2C%20NC%2C%20monostable%2CM5%20side?unique=7700fb0)
|
Type number: 512.204 |
43.51 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

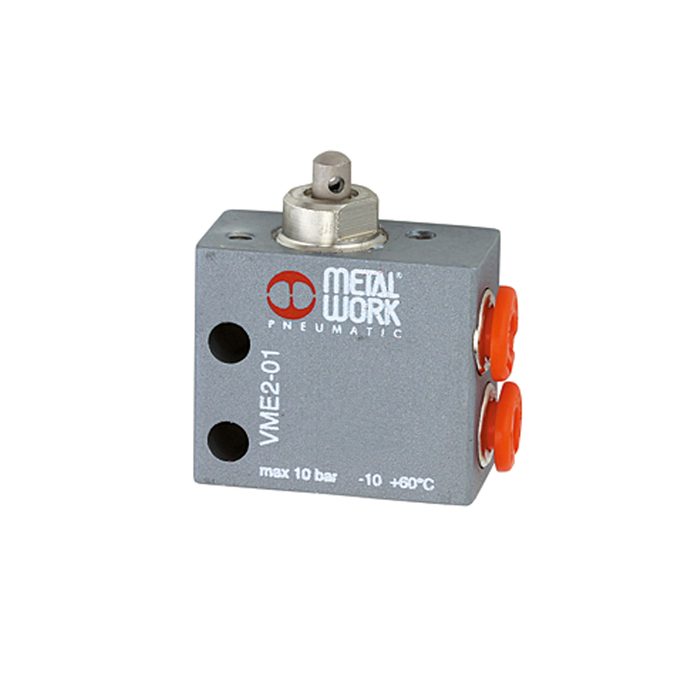

![[106388] RIEGLER 3/2-way miniature valve, Mechanical, Tappet, NC, M5](/web/image/product.template/175445/image_128/%5B106388%5D%20RIEGLER%203-2-way%20miniature%20valve%2C%20Mechanical%2C%20Tappet%2C%20NC%2C%20M5?unique=9990765)
|
