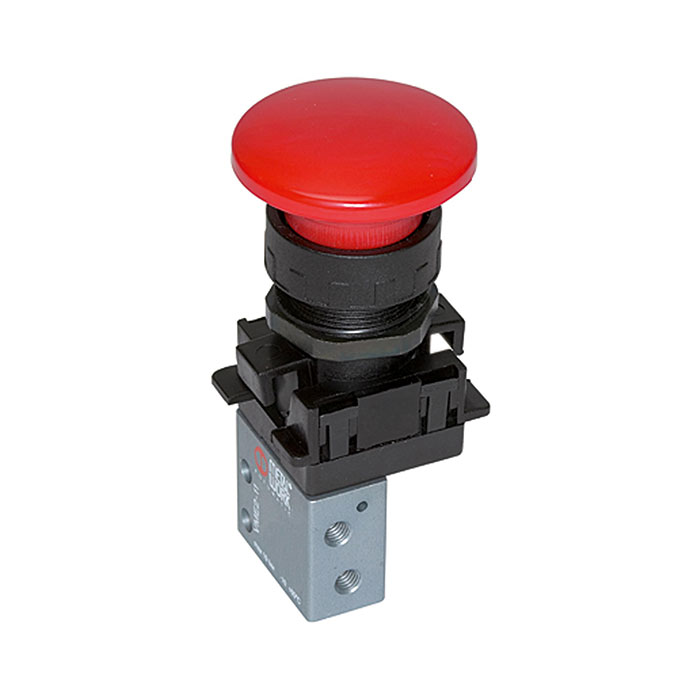

RIEGLER 3/2-way mini valve, manual, Palm button, NC, monostable 4 mm side
Type number: 512.603
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
3/2-way miniature valve, manual, mushroom button, NC, monostable, 4 mm sideways, operating pressure 0.5-10 bar, operating temperature -10°C to 60°C
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves VME series |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Spring | stainless steel |
| Actuating pressure at 6 bar | 8 N |
| Valve body | Aluminum |
| Push button | Nickel-plated brass |
| Function | 3/2 NC |
| Actuation | monostable |
| Nominal Ø | 2.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | Push-in connection Ø 4 mm on the side |
| RoHS material information | RoHS compliant |
| Flow rate | 35 Nl/min |
| Flow rate | 60 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
