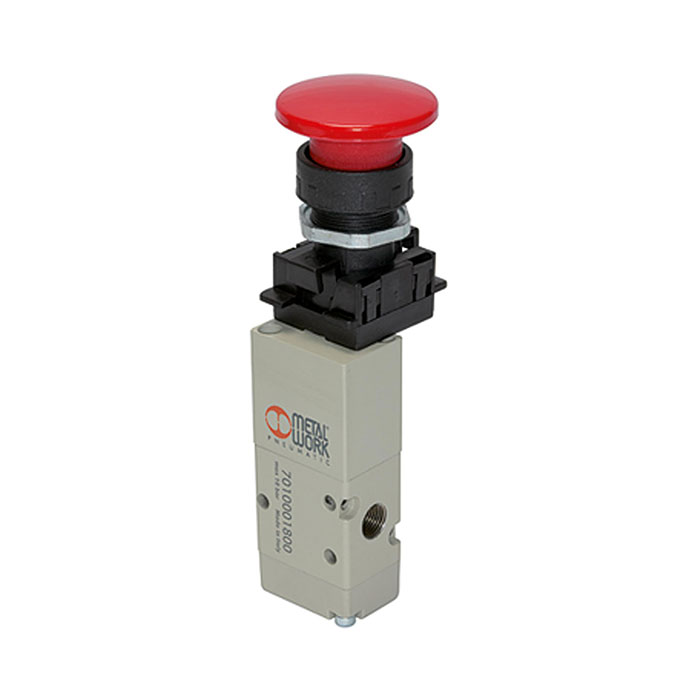

RIEGLER 3/2-way valve, manual, Palm button, NC, monostable, G 1/8
Type number: 515.601
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way valve for pneumatic control, max. 10 bar, G 1/8 - Type 515.601
The RIEGLER 3/2-way valve, manual, mushroom button, NC, monostable, G 1/8 controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is 2.5 bar to 10 bar. The temperature range is between -10 °C and 60 °C. G 1/8 connection thread - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. The flow rate is 550 Nl/min. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Spring | Special steel |
| Valve body | Aluminum |
| Function | 3/2 NC |
| Actuation | monostable |
| Symbol | 13 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| Flow rate | 400 Nl/min |
| Flow rate | 550 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026, CW614N |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[106443] RIEGLER Adapter max. 2 valves, required for mounting on basic valve](/web/image/product.template/175500/image_128/%5B106443%5D%20RIEGLER%20Adapter%20max.%202%20valves%2C%20required%20for%20mounting%20on%20basic%20valve?unique=f89681c)
|
Type number: A2V |
2.81 € | |

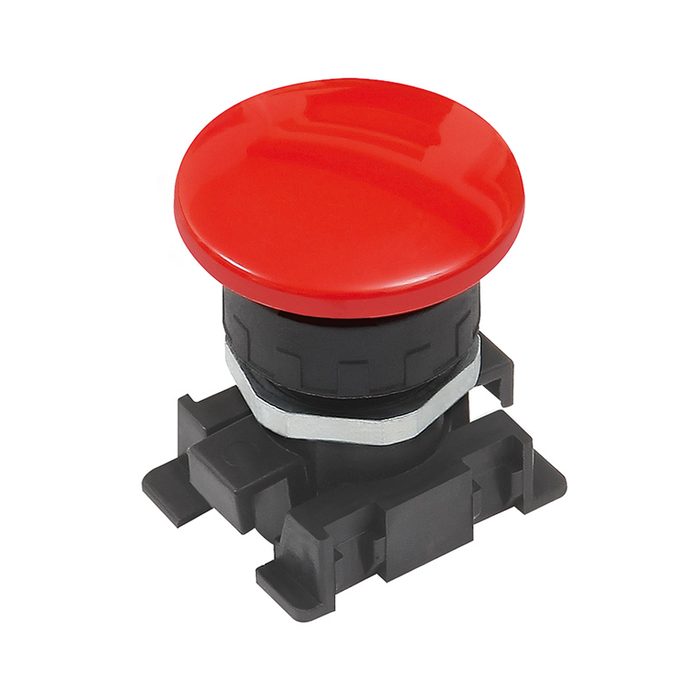

![[106456] RIEGLER Red palm button, monostable](/web/image/product.template/175513/image_128/%5B106456%5D%20RIEGLER%20Red%20palm%20button%2C%20monostable?unique=17bd89e)
|
Type number: RPT-M |
17.62 € | |

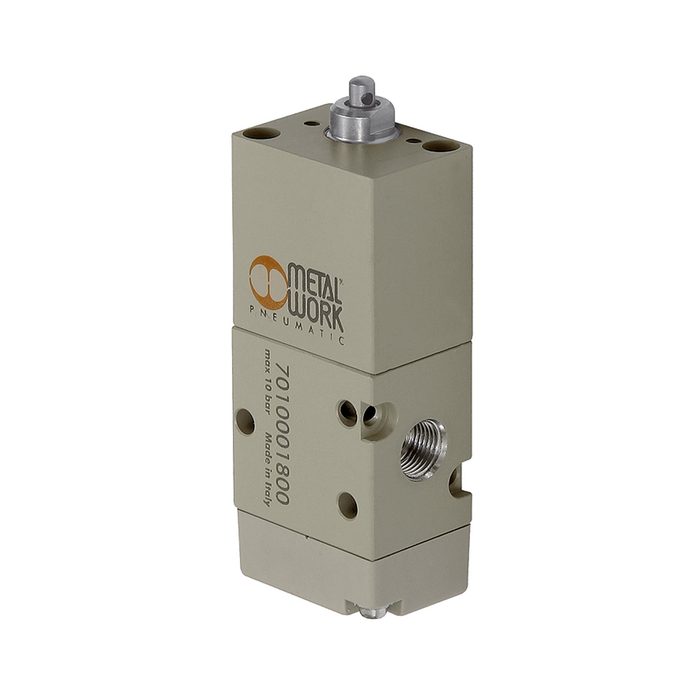

![[106441] RIEGLER Stem actuated valve, 3/2-way, monostable, NC, G 1/8](/web/image/product.template/175498/image_128/%5B106441%5D%20RIEGLER%20Stem%20actuated%20valve%2C%203-2-way%2C%20monostable%2C%20NC%2C%20G%201-8?unique=b79afa7)
|
Type number: 515.101 |
51.74 € | |
