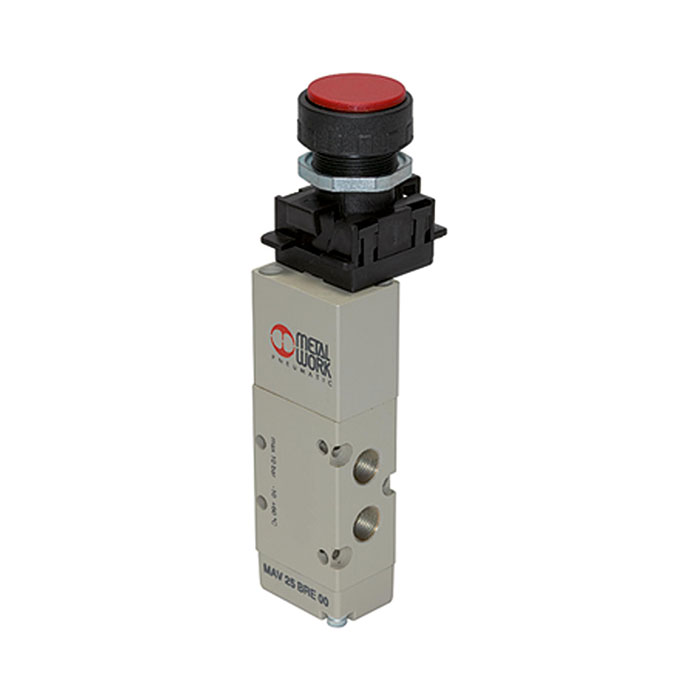

RIEGLER 5/2-way valve, manual, Push button, monostable, G 1/8
Type number: 515.211
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
5/2-way valve, manual, push-button, monostable, connection G 1/8, operating pressure 2.5 - 10 bar, operating temp. -10 °C to 60 °C, aluminum
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Spring | Special steel |
| Valve body | Aluminum |
| Function | 5/3 |
| Actuation | monostable |
| Disc | red/black |
| Symbol | 4 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| Flow rate | 400 Nl/min |
| Flow rate | 550 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026, CW614N |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

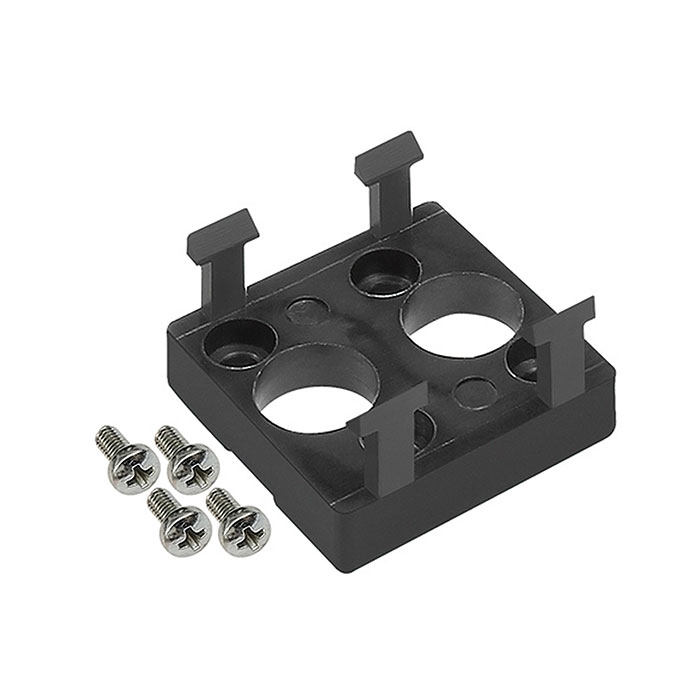

![[106443] RIEGLER Adapter max. 2 valves, required for mounting on basic valve](/web/image/product.template/175500/image_128/%5B106443%5D%20RIEGLER%20Adapter%20max.%202%20valves%2C%20required%20for%20mounting%20on%20basic%20valve?unique=2a04421)
|
Type number: A2V |
2.81 € | |

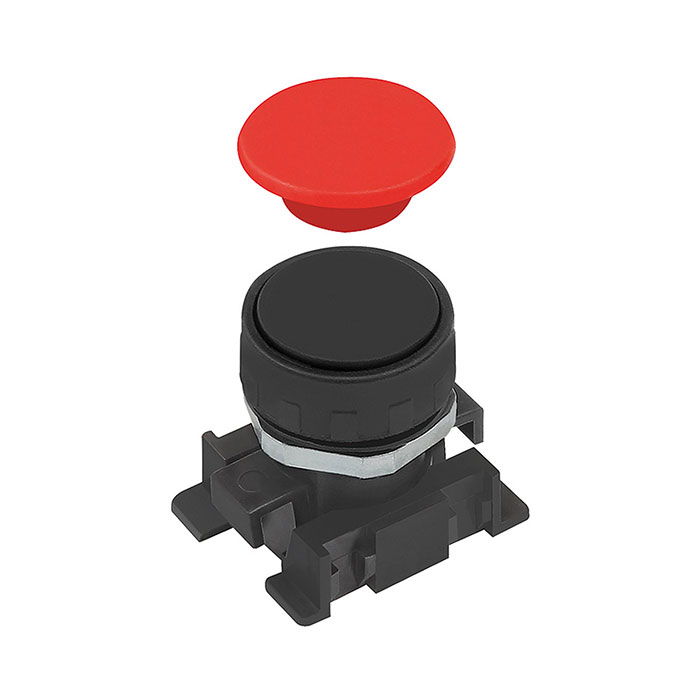

![[106444] RIEGLER Push button with red and black discs, monostable](/web/image/product.template/175501/image_128/%5B106444%5D%20RIEGLER%20Push%20button%20with%20red%20and%20black%20discs%2C%20monostable?unique=ccf71c8)
|
Type number: DK-M |
12.17 € | |

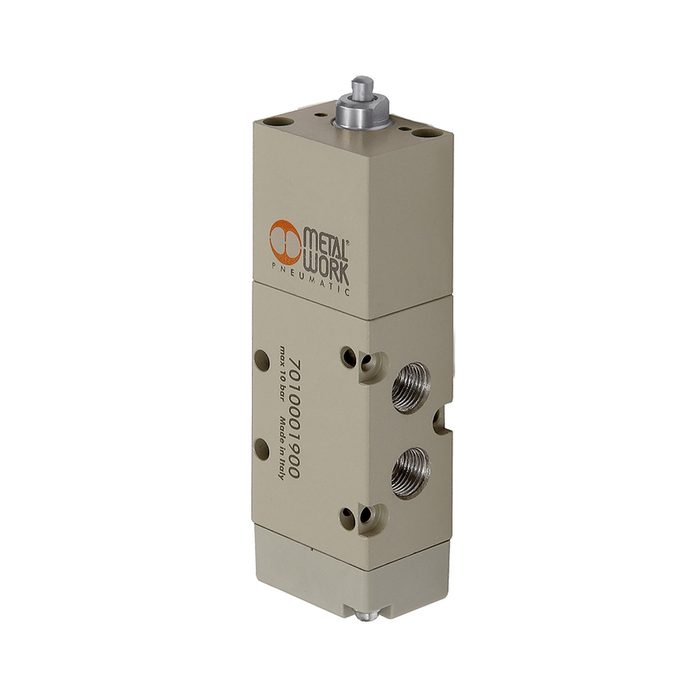

![[106442] RIEGLER Stem actuated valve, 5/2-way, monostable, NC, G 1/8](/web/image/product.template/175499/image_128/%5B106442%5D%20RIEGLER%20Stem%20actuated%20valve%2C%205-2-way%2C%20monostable%2C%20NC%2C%20G%201-8?unique=a1827a8)
|
Type number: 515.111 |
56.56 € | |
