RIEGLER 5/2-way valve, man.rotating handle short bistableG1/8 valve pos.2
Type number: 515.412
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 5/2-way valve for pneumatic control, max. 10 bar, G 1/8 - Type 515.412
The RIEGLER 5/2-way valve, manual rotary lever short, bistable, G 1/8, 2 switching positions controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is 2.5 bar to 10 bar. The temperature range is between -10 °C and 60 °C. G 1/8 connection thread - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. The flow rate is 550 Nl/min. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Spring | Special steel |
| Valve body | Aluminum |
| Function | 5/2 |
| Actuation | bistable |
| Switching positions | 2 |
| Symbol | 6 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston | Aluminum |
| RoHS material information | RoHS compliant |
| Flow rate | 400 Nl/min |
| Flow rate | 550 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026, CW614N |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

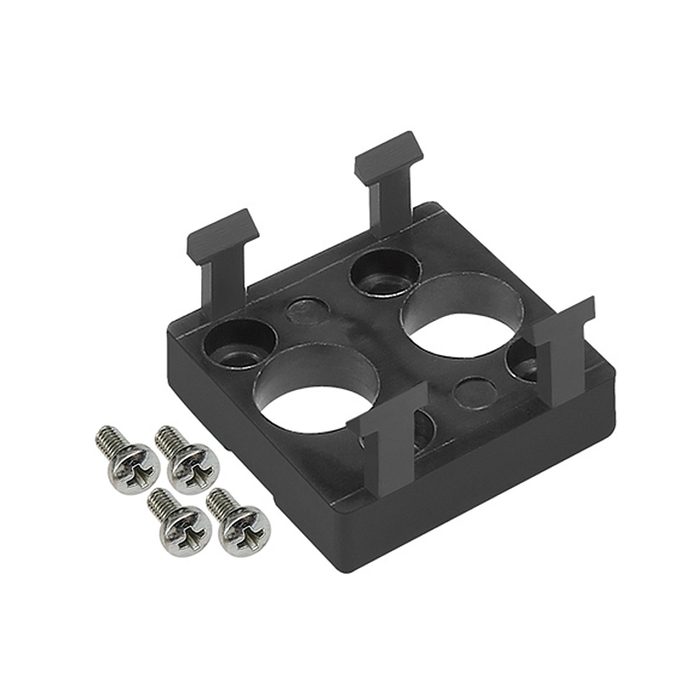

![[106443] RIEGLER Adapter max. 2 valves, required for mounting on basic valve](/web/image/product.template/175500/image_128/%5B106443%5D%20RIEGLER%20Adapter%20max.%202%20valves%2C%20required%20for%20mounting%20on%20basic%20valve?unique=c6b5f34)
|
Type number: A2V |
2.81 € | |

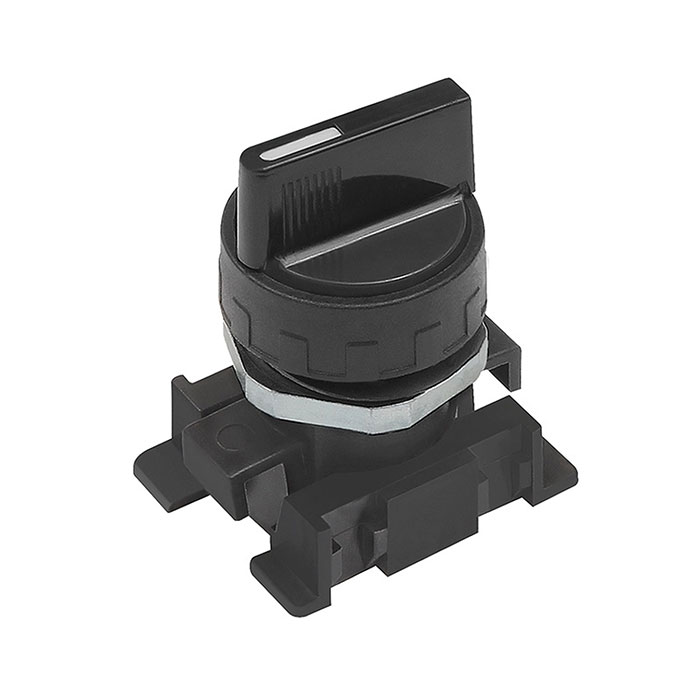

![[106447] RIEGLER Short rotating lever, black, 2 positions, bistable](/web/image/product.template/175504/image_128/%5B106447%5D%20RIEGLER%20Short%20rotating%20lever%2C%20black%2C%202%20positions%2C%20bistable?unique=2ad1bd0)
|
Type number: KDH-2B |
21.94 € | |
![[106442] RIEGLER Stem actuated valve, 5/2-way, monostable, NC, G 1/8](/web/image/product.template/175499/image_128/%5B106442%5D%20RIEGLER%20Stem%20actuated%20valve%2C%205-2-way%2C%20monostable%2C%20NC%2C%20G%201-8?unique=5c1fb83)
|
Type number: 515.111 |
56.56 € | |
