RIEGLER 5/2-way valve, man.rotating handle short monost. G1/8 valve pos.3
Type number: 515.413
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
5/2-way valve, manual, rotary lever k., monostable, 3-switch, connection G1/8, operating pressure 2.5-10bar, operating temp. -10°C to 60°C, aluminum
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Spring | Special steel |
| Valve body | Aluminum |
| Function | 5/2 |
| Actuation | monostable |
| Switching positions | 3 |

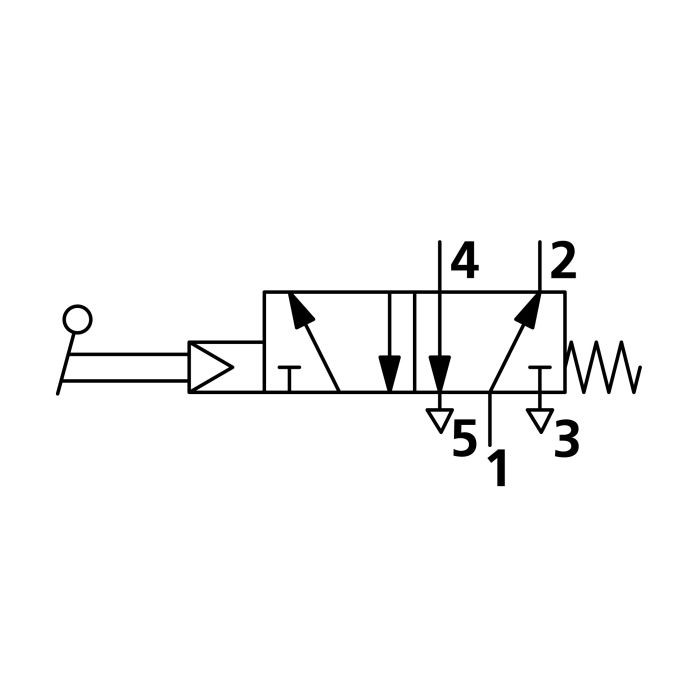

| Symbol | 7 |
| Connection | G 1/8 |
| Piston | Aluminum |
| Flow rate | 400 Nl/min |
| Flow rate | 550 Nl/min |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[106443] RIEGLER Adapter max. 2 valves, required for mounting on basic valve](/web/image/product.template/175500/image_128/%5B106443%5D%20RIEGLER%20Adapter%20max.%202%20valves%2C%20required%20for%20mounting%20on%20basic%20valve?unique=5a36da6)
|
Type number: A2V |
2.81 € | |

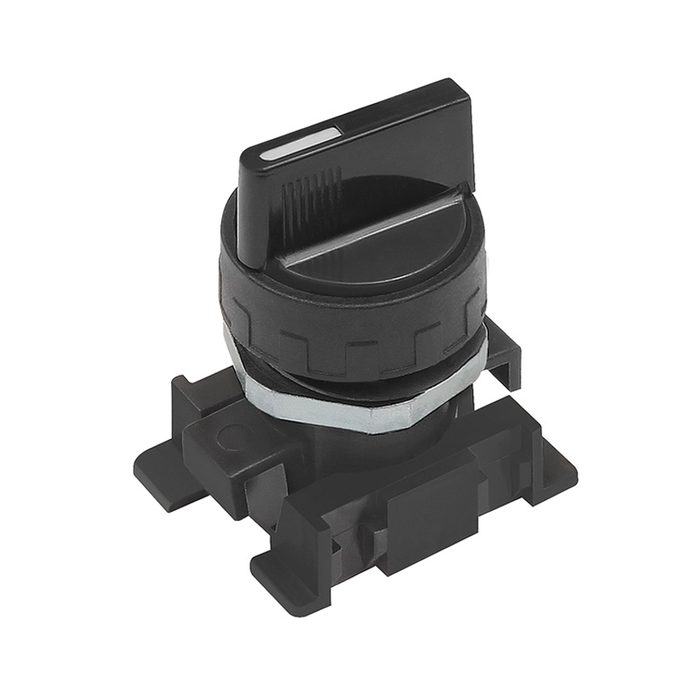

![[106448] RIEGLER Short rotating lever, black, 3 positions, monostable](/web/image/product.template/175505/image_128/%5B106448%5D%20RIEGLER%20Short%20rotating%20lever%2C%20black%2C%203%20positions%2C%20monostable?unique=2f650b6)
|
Type number: KDH-3M |
21.94 € | |

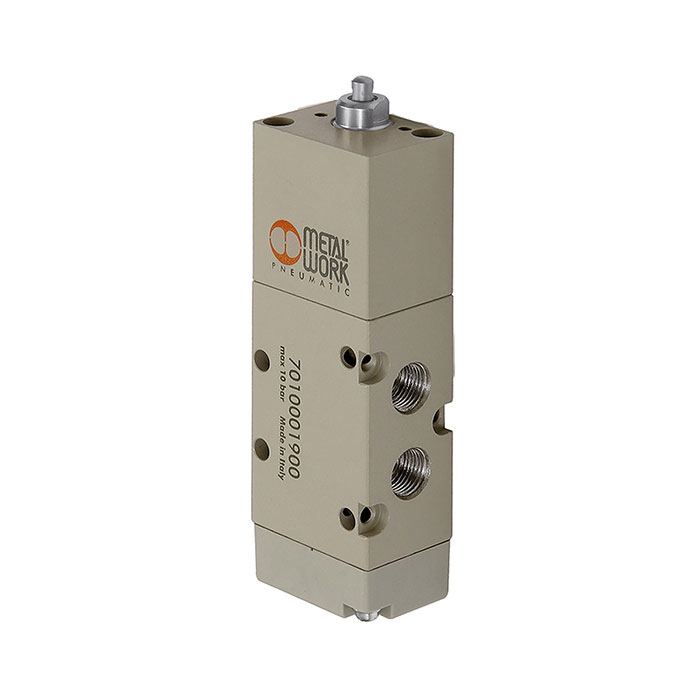

![[106442] RIEGLER Stem actuated valve, 5/2-way, monostable, NC, G 1/8](/web/image/product.template/175499/image_128/%5B106442%5D%20RIEGLER%20Stem%20actuated%20valve%2C%205-2-way%2C%20monostable%2C%20NC%2C%20G%201-8?unique=b116b4b)
|
Type number: 515.111 |
56.56 € | |
