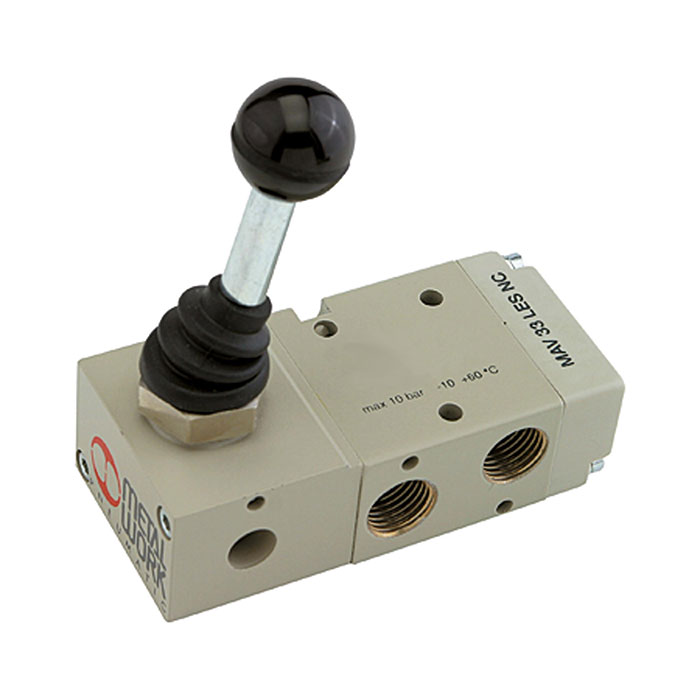

RIEGLER 3/2-way valve, man. 90° lever monostable, G1/8
Type number: 514.101
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way valve for pneumatic control, G 1/8 - Type 514.101
The RIEGLER 3/2-way valve, manual 90° lever monostable G 1/8 controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The temperature range is between -10 °C and 60 °C. Connection thread G 1/8 - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. The flow rate is 550 Nl/min. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Spring | Special steel |
| Valve body | Aluminum |
| Operating pressure | Vacuum up to 10 bar |
| Function | 3/2 |
| Actuation | monostable |
| Symbol | 10 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston | Nickel-plated aluminum |
| RoHS material information | RoHS compliant |
| Flow rate | 400 Nl/min |
| Flow rate | 550 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026 |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[106604] RIEGLER Mounting bracket set for way valves, Height 120 mm, G 1/8](/web/image/product.template/175661/image_128/%5B106604%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%20120%20mm%2C%20G%201-8?unique=03cac4b)
|
Type number: 518.120-18 |
16.80 € | |

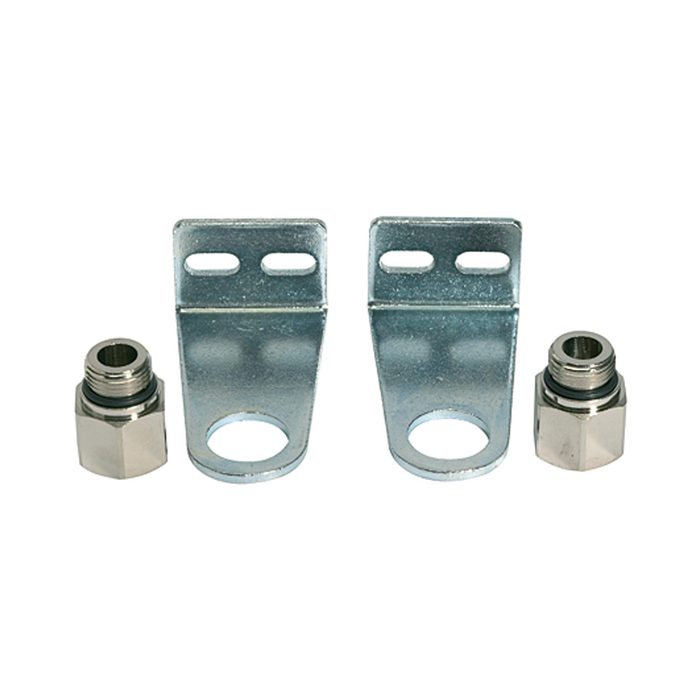

![[106605] RIEGLER Mounting bracket set for way valves, Height 60 mm, G 1/8](/web/image/product.template/175662/image_128/%5B106605%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%2060%20mm%2C%20G%201-8?unique=6d07c5e)
|
Type number: 518.60-18 |
15.39 € | |
![[106606] RIEGLER Mounting bracket set for way valves, Height 30 mm, G 1/8](/web/image/product.template/175663/image_128/%5B106606%5D%20RIEGLER%20Mounting%20bracket%20set%20for%20way%20valves%2C%20Height%2030%20mm%2C%20G%201-8?unique=9d03cbb)
|
Type number: 518.30-18 |
15.39 € | |

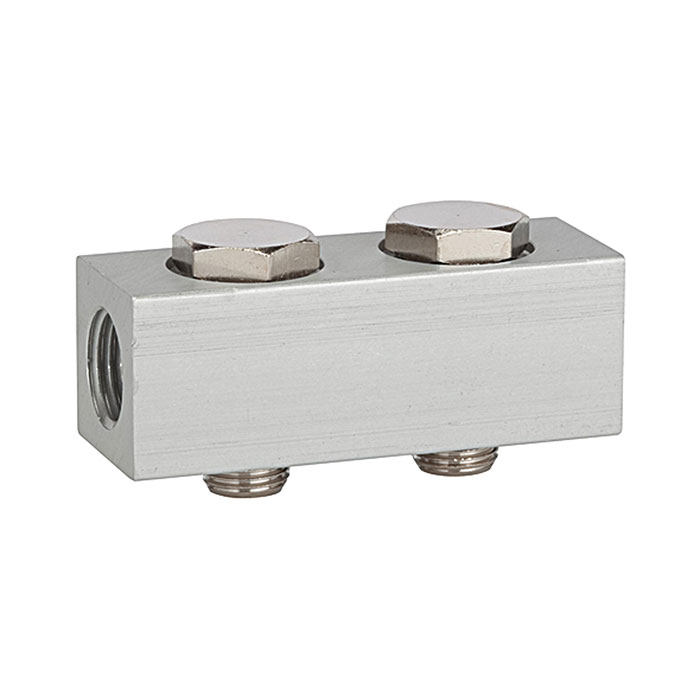

![[106610] RIEGLER Supply strip for the way valves, with 2 valve positions, G 1/8](/web/image/product.template/175667/image_128/%5B106610%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%202%20valve%20positions%2C%20G%201-8?unique=69fdaef)
|
Type number: 518.02-18 |
14.46 € | |

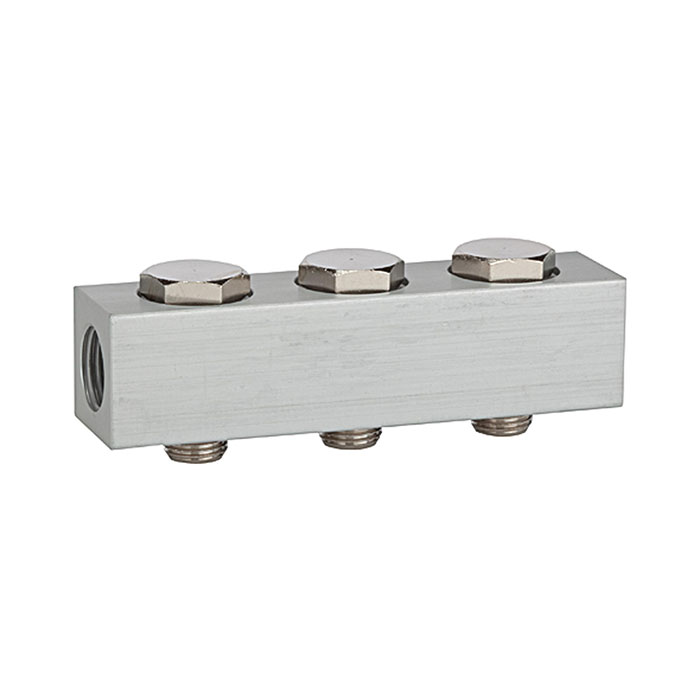

![[106611] RIEGLER Supply strip for the way valves, with 3 valve positions, G 1/8](/web/image/product.template/175668/image_128/%5B106611%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%203%20valve%20positions%2C%20G%201-8?unique=83fbd32)
|
Type number: 518.03-18 |
20.05 € | |

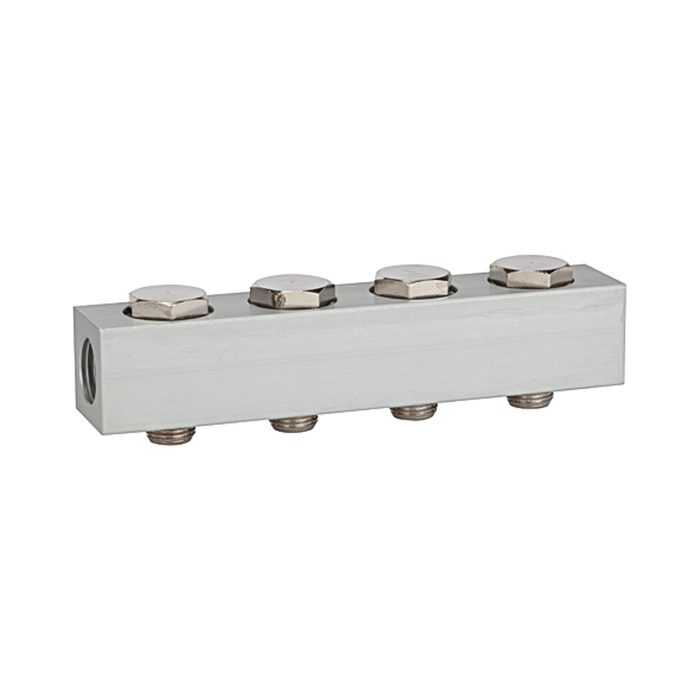

![[106612] RIEGLER Supply strip for the way valves, with 4 valve positions, G 1/8](/web/image/product.template/175669/image_128/%5B106612%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%204%20valve%20positions%2C%20G%201-8?unique=9aead04)
|
Type number: 518.04-18 |
24.36 € | |

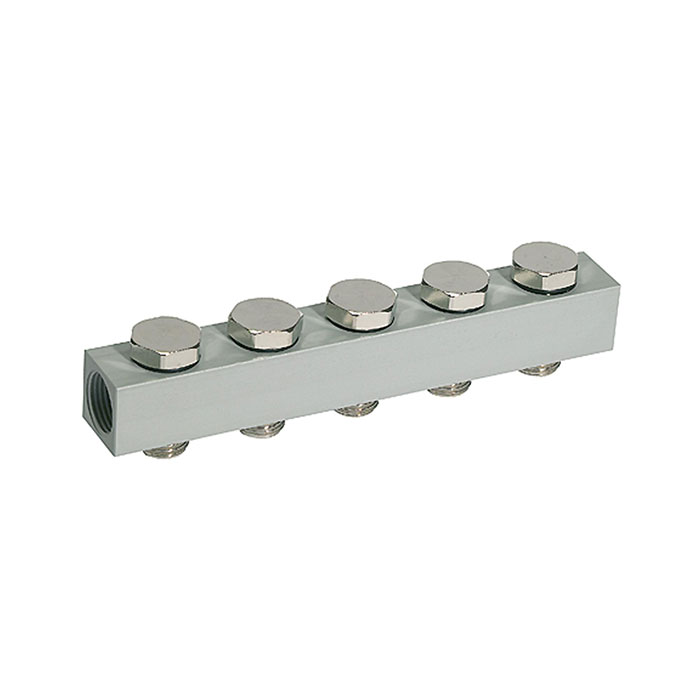

![[106613] RIEGLER Supply strip for the way valves, with 5 valve positions, G 1/8](/web/image/product.template/175670/image_128/%5B106613%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%205%20valve%20positions%2C%20G%201-8?unique=1d99b4d)
|
Type number: 518.05-18 |
29.94 € | |

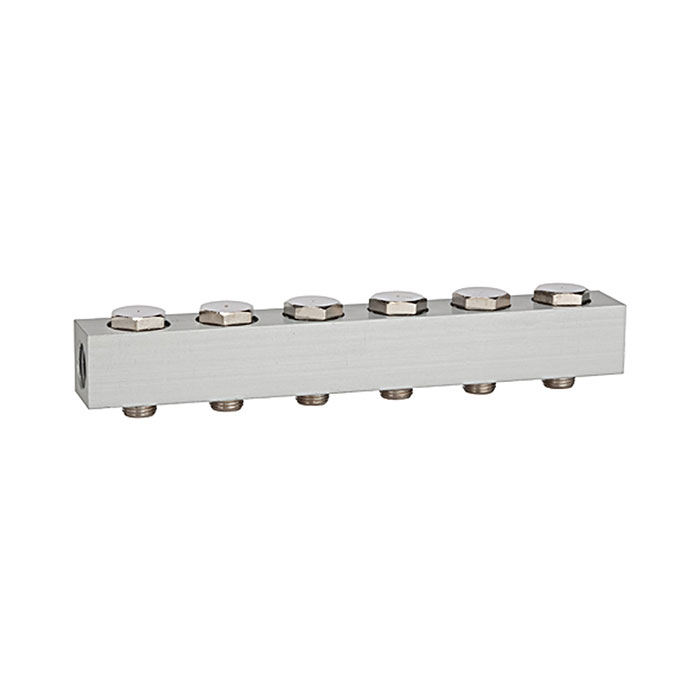

![[106614] RIEGLER Supply strip for the way valves, with 6 valve positions, G 1/8](/web/image/product.template/175671/image_128/%5B106614%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%206%20valve%20positions%2C%20G%201-8?unique=8185911)
|
Type number: 518.06-18 |
37.47 € | |

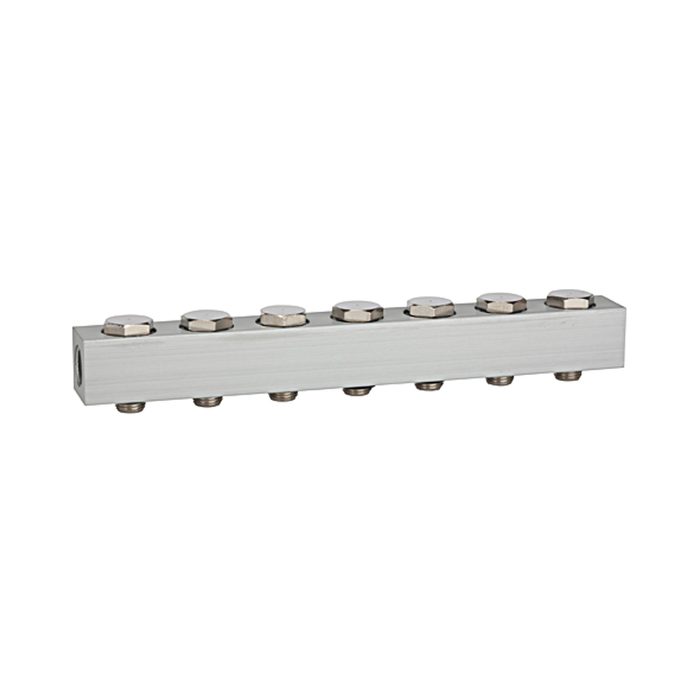

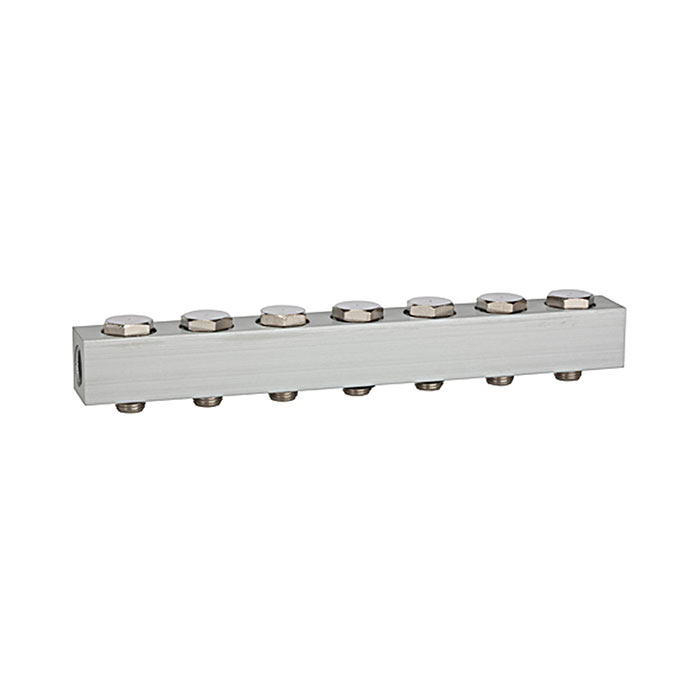

![[106615] RIEGLER Supply strip for the way valves, with 7 valve positions, G 1/8](/web/image/product.template/175672/image_128/%5B106615%5D%20RIEGLER%20Supply%20strip%20for%20the%20way%20valves%2C%20with%207%20valve%20positions%2C%20G%201-8?unique=f7a1855)
|
