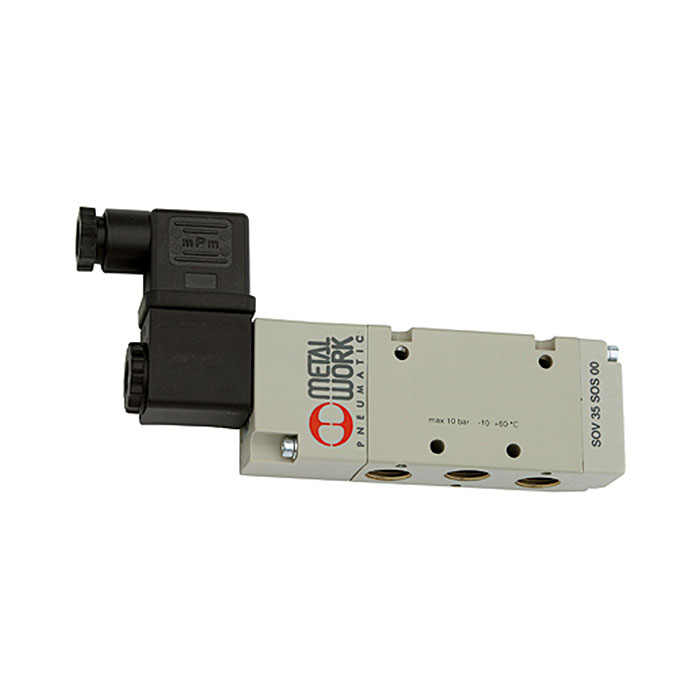

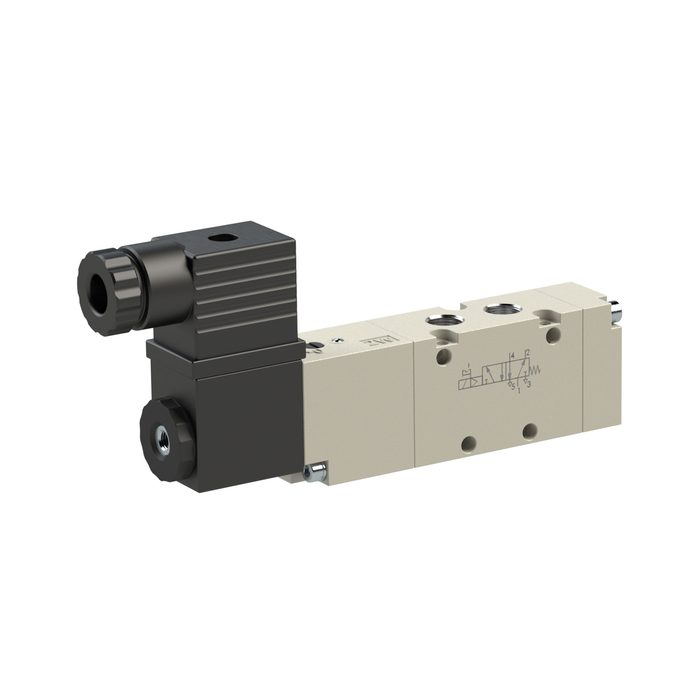

RIEGLER 5/2-way valve electropneum., monostable, G 1/4, 230 V AC
Type number: 517.205
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106549EAN :
4047322097581Category :
Valves Electropneumatically OperatedWeight :
0.27 kg5/2-way valve electropneumatic, monostable, G 1/4, DN 7.5, 230 V AC, 50/60 Hz, operating pressure 2.5-10 bar, aluminum
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Manual override | resting |
| DN | 45419 |
| Function | 5/2 |
| Actuation | monostable |
| Symbol | 35 |
| Tension | 230 V AC, 50/60 Hz |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| Flow rate | 750 Nl/min |
| Flow rate | 1100 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | AA-6026 |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[151011] RIEGLER Appliance plug with LED, 110 V, 22 mm, type B](/web/image/product.template/276002/image_128/%5B151011%5D%20RIEGLER%20Appliance%20plug%20with%20LED%2C%20110%20V%2C%2022%20mm%2C%20type%20B?unique=a0c444c)
|
Typennummer: 1920.9PL110 |
6.47 € | |
![[117314] RIEGLER Appliance plug with LED, 230 V, 22 mm, type B](/web/image/product.template/274840/image_128/%5B117314%5D%20RIEGLER%20Appliance%20plug%20with%20LED%2C%20230%20V%2C%2022%20mm%2C%20type%20B?unique=a189e0a)
|
Type number: 1920.9PL.17 |
6.47 € | |
![[117313] RIEGLER Device plug, 22 mm, type B](/web/image/product.template/274839/image_128/%5B117313%5D%20RIEGLER%20Device%20plug%2C%2022%20mm%2C%20type%20B?unique=cf7942e)
|
Type number: 1920.9P |
1.48 € | |
![[123182] RIEGLER Device plug, 22 mm, type B, ATEX II 2 GD](/web/image/product.template/281003/image_128/%5B123182%5D%20RIEGLER%20Device%20plug%2C%2022%20mm%2C%20type%20B%2C%20ATEX%20II%202%20GD?unique=0b782c9)
|
Type number: 1920.9PL2GD-EX |
2.38 € | |
![[117316] RIEGLER Device plug with LED, 24 V, 22 mm, type B](/web/image/product.template/274841/image_128/%5B117316%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%2024%20V%2C%2022%20mm%2C%20type%20B?unique=814e1e2)
|
Type number: 1920.9PL.42 |
6.47 € | |
![[129849] RIEGLER Device plug with LED, varistor 110 V, 22 mm, type B](/web/image/product.template/273069/image_128/%5B129849%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20110%20V%2C%2022%20mm%2C%20type%20B?unique=ee0a741)
|
Type number: 1920.9PLV110 |
6.47 € | |
![[117317] RIEGLER Device plug with LED, varistor 230 V, 22 mm, type B](/web/image/product.template/274842/image_128/%5B117317%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%20230%20V%2C%2022%20mm%2C%20type%20B?unique=b41ac6f)
|
Type number: 1920.9PLV17 |
6.47 € | |
![[117318] RIEGLER Device plug with LED, varistor 24 V, 22 mm, type B](/web/image/product.template/274843/image_128/%5B117318%5D%20RIEGLER%20Device%20plug%20with%20LED%2C%20varistor%2024%20V%2C%2022%20mm%2C%20type%20B?unique=a9dfd61)
|
Type number: 1920.9PLV42 |
6.47 € | |
![[118629] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275045/image_128/%5B118629%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20110%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=16910c5)
|
Type number: 400-514-07 |
9.87 € | |
![[118634] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 110 V AC, 50/60 Hz, 5 VA](/web/image/product.template/280914/image_128/%5B118634%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20110%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=8c8fc9f)
|
Type number: 400-517-07 |
9.87 € | |
![[118631] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 2 W](/web/image/product.template/275047/image_128/%5B118631%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2012%20V%20DC%2C%202%20W?unique=2c92717)
|
Type number: 400-514-41 |
9.87 € | |
![[118636] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 5 W](/web/image/product.template/280916/image_128/%5B118636%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2012%20V%20DC%2C%205%20W?unique=2df4148)
|
Type number: 400-517-41 |
9.87 € | |
![[118630] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 230 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275046/image_128/%5B118630%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20230%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=172da32)
|
Type number: 400-514-17 |
9.87 € | |
![[118635] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 230 V AC, 50/60 Hz, 5 VA](/web/image/product.template/280915/image_128/%5B118635%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%20230%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=aeb1a0e)
|
Type number: 400-517-17 |
9.87 € | |
![[118628] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275044/image_128/%5B118628%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=aaa3ef7)
|
Type number: 400-514-01 |
9.87 € | |
![[118633] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V AC, 50/60 Hz, 5 VA](/web/image/product.template/275049/image_128/%5B118633%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20AC%2C%2050-60%20Hz%2C%205%20VA?unique=4b28022)
|
Type number: 400-517-01 |
9.87 € | |
![[118632] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V DC, 2 W](/web/image/product.template/275048/image_128/%5B118632%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20DC%2C%202%20W?unique=c8a9087)
|
Type number: 400-514-42 |
9.87 € | |
![[118637] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V DC, 5 W](/web/image/product.template/280917/image_128/%5B118637%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20DC%2C%205%20W?unique=4f731f4)
|
Type number: 400-517-42 |
9.87 € | |
