RIEGLER 5/2-way valve two-sided electromagnetic bistable G1/2, 230V,50 Hz

Type number: 517.526

374.84 € 374.84000000000003 EUR 374.84 € VAT Included

437.49 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

Product no. :

106599

EAN :

4047322278638

Category :

Valves Electropneumatically Operated

Weight :

0.91 kg

Description
Specifications

5/2-way valve, two-sided electromagnetic, bistable, G 1/2, 230 V, 50 Hz, Operating pre. 2.5 - 10 bar Operating temp. -10°C to 60°C

Temperature range min.	-10 °C
Temperature range max.	60 °C
Housing	Anodized aluminium, blue
Sealing material	NBR
Protection class	IP 65 (DIN 46244)
Electrical connection	Device plug PG 9, form B
Operating pressure min.	2.5 bar
Max. operating pressure	10 bar
Control pressure min.	2.5 bar
Piston slide	Stainless steel
Manual override	groping
DN	15
Function	5/2
Actuation	bistable
Symbol	36
Tension	230 V AC, 50 Hz
Connection	G 1/2
Flow rate	4600 Nl/min
Flow rate measurement 1	Flow rate at 6 bar and Î "p 1.0 bar
Class name	MAX

Variants / Alternatives

	Price

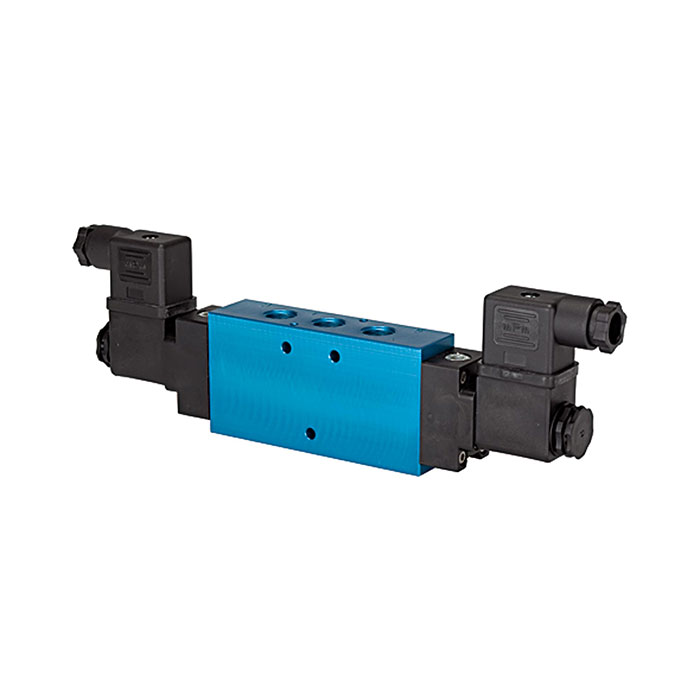

[106597] RIEGLER 5/2-way valve two-sided electromagnetic, bistable, G 1/2, 24 V DC Type number: 517.523	366.48 €	Add to cart
[106598] RIEGLER 5/2-way valve two-sided electromagnetic bistable G1/4, 230V,50 Hz Type number: 517.525	207.00 €	Add to cart
[106596] RIEGLER 5/2-way valve two-sided electromagnetic, bistable, G 1/4, 24 V DC Type number: 517.522	201.46 €	Add to cart

Maintenance, wear and spare parts

Product		Price
	[117313] RIEGLER Device plug, 22 mm, type B Type number: 1920.9P	1.50 €	Add to cart
