RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 4/2.5,M5
Type number: 357.005-4
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
106879EAN :
4047322181617Category :
Unidirectional Flow Control ValvesWeight :
0.01 kgThrottle check valve, Supply air throttle (V) quick connector Hose 4/2.5, M5, PN max. 10 bar, Temperature -20 °C to 80 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Base body | Nickel-plated brass |
| Captive seals | Polyamide glass fiber reinforced (only parts in hollow screw design) |
| Silicone-free | Yes |
| Thread | M5 |
| SW | 8 mm |
| Function | Supply air throttling (V) |
| for hose | 4 / 2.5 mm |
| Connection type | Connection quick screw connection |
| B | 24.5 mm |
| C | 18 mm |
| Execution | adjustable with slotted screw |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
| Construction method | Banjo bolt design |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106887] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose10/8,G1/4](/web/image/product.template/175944/image_128/%5B106887%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose10-8%2CG1-4?unique=032c7ac)
|
Type number: 357.014-10 |
10.76 € | |
![[106888] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose10/8,G3/8](/web/image/product.template/175945/image_128/%5B106888%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose10-8%2CG3-8?unique=56ddd7c)
|
Type number: 357.038-10 |
17.23 € | |
![[106882] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 5/3,G1/8](/web/image/product.template/175939/image_128/%5B106882%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose%205-3%2CG1-8?unique=f728c90)
|
Type number: 357.018-5 |
9.92 € | |
![[106880] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 5/3, M5](/web/image/product.template/175937/image_128/%5B106880%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose%205-3%2C%20M5?unique=c9ea384)
|
Type number: 357.005-5 |
9.92 € | |
![[106885] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 6/4,G1/4](/web/image/product.template/175942/image_128/%5B106885%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose%206-4%2CG1-4?unique=f728c90)
|
Type number: 357.014-6 |
10.08 € | |
![[106883] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 6/4,G1/8](/web/image/product.template/175940/image_128/%5B106883%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose%206-4%2CG1-8?unique=3fb3348)
|
Type number: 357.018-6 |
9.92 € | |

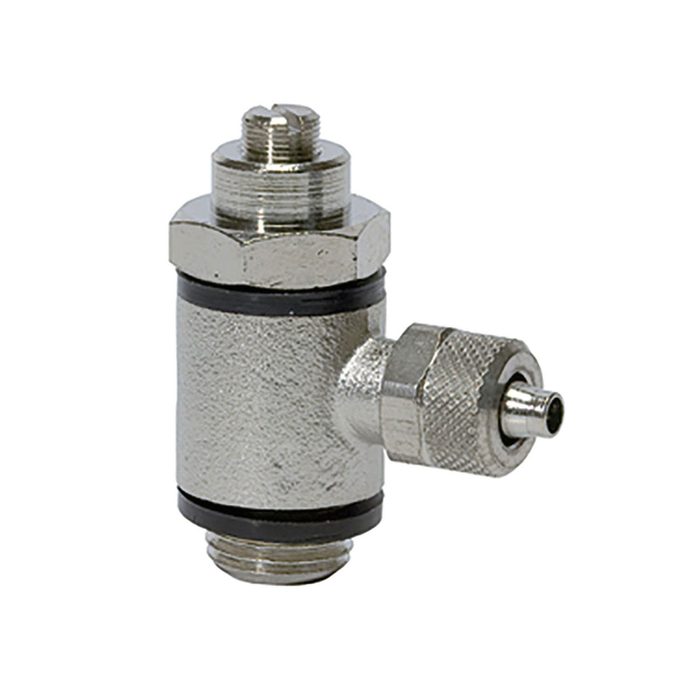

![[106881] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 6/4, M5](/web/image/product.template/175938/image_128/%5B106881%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose%206-4%2C%20M5?unique=a433db0)
|
