RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 6/4,G1/8
Type number: 357.018-6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106883EAN :
4047322181808Category :
Unidirectional Flow Control ValvesWeight :
0.03 kgRIEGLER Throttle check valve for pneumatic control, max. 10 bar, G 1/8 - Type 357.018-6
The RIEGLER throttle check valve, supply air pressure G 1/8, 6/4 regulates the speed of pneumatic actuators or blocks backflow. with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between -20 °C and 80 °C. G 1/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Base body | Nickel-plated brass |
| Captive seals | Polyamide glass fiber reinforced (only parts in hollow screw design) |
| Silicone-free | Yes |
| Thread | G 1/8 |
| SW | 14 mm |

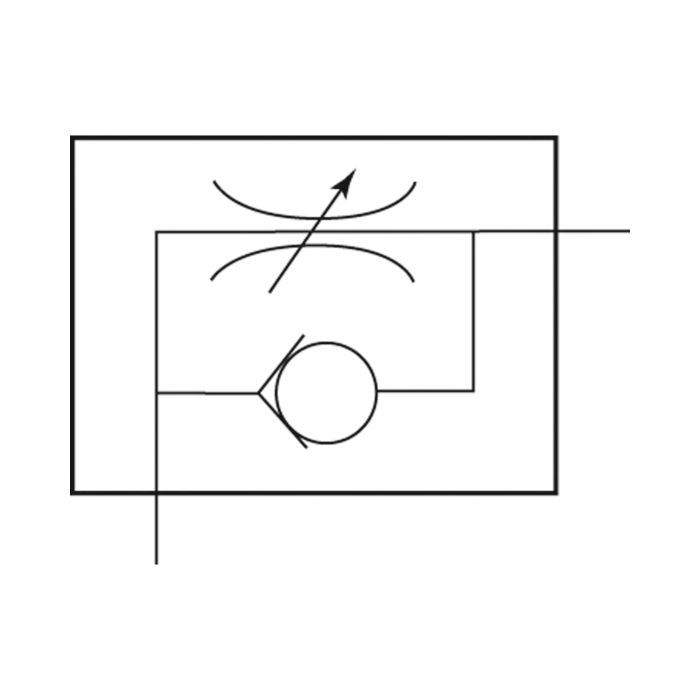

| Function | Supply air throttling (V) |
| for hose | 6 / 4 mm |
| Connection type | Connection quick screw connection |

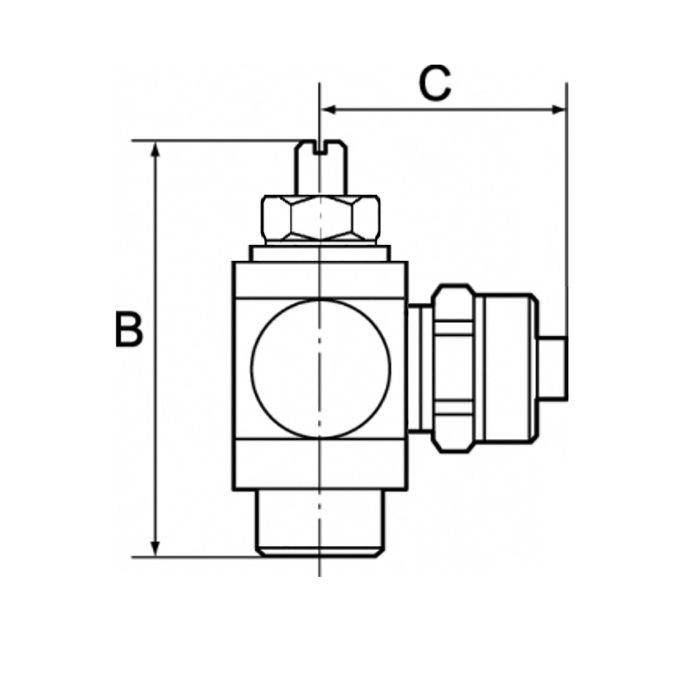

| B | 32 mm |
| C | 25 mm |
| Execution | adjustable with slotted screw |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, CW617N |
| Class name | PLUS |
| Construction method | Banjo bolt design |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106887] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose10/8,G1/4](/web/image/product.template/175944/image_128/%5B106887%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose10-8%2CG1-4?unique=2f685ee)
|
Type number: 357.014-10 |
10.61 € | |
![[106888] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose10/8,G3/8](/web/image/product.template/175945/image_128/%5B106888%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose10-8%2CG3-8?unique=8ce7e99)
|
Type number: 357.038-10 |
16.99 € | |
![[106879] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 4/2.5,M5](/web/image/product.template/175936/image_128/%5B106879%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose%204-2.5%2CM5?unique=81a87b6)
|
Type number: 357.005-4 |
9.79 € | |
![[106882] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 5/3,G1/8](/web/image/product.template/175939/image_128/%5B106882%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose%205-3%2CG1-8?unique=81a87b6)
|
Type number: 357.018-5 |
9.79 € | |
![[106880] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 5/3, M5](/web/image/product.template/175937/image_128/%5B106880%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose%205-3%2C%20M5?unique=040ef72)
|
Type number: 357.005-5 |
9.79 € | |

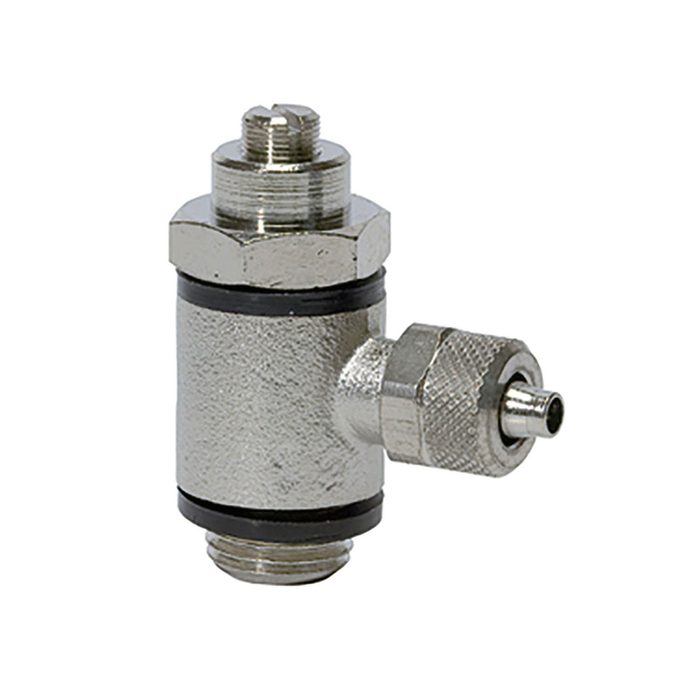

![[106885] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 6/4,G1/4](/web/image/product.template/175942/image_128/%5B106885%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose%206-4%2CG1-4?unique=81a87b6)
|
