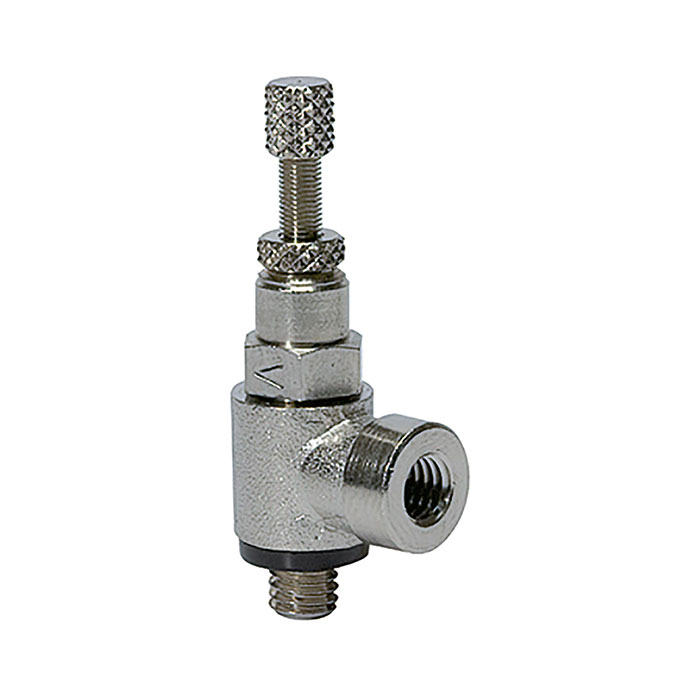

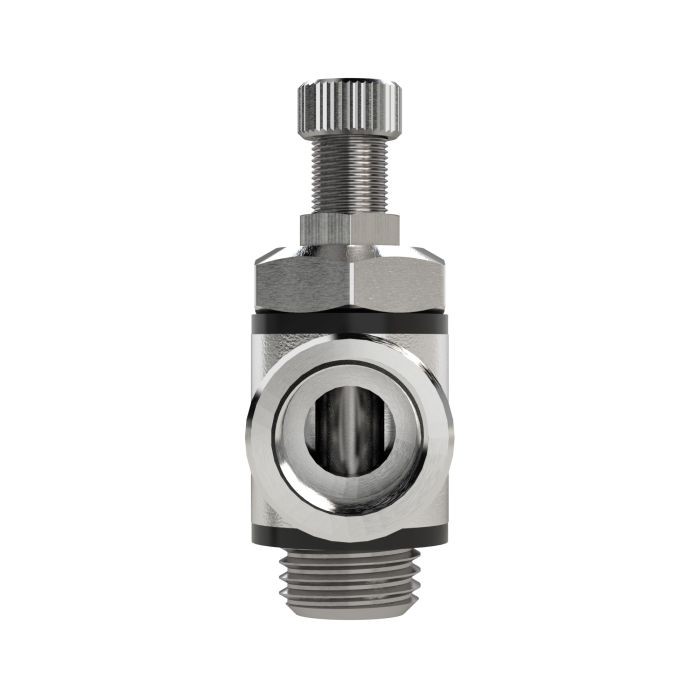

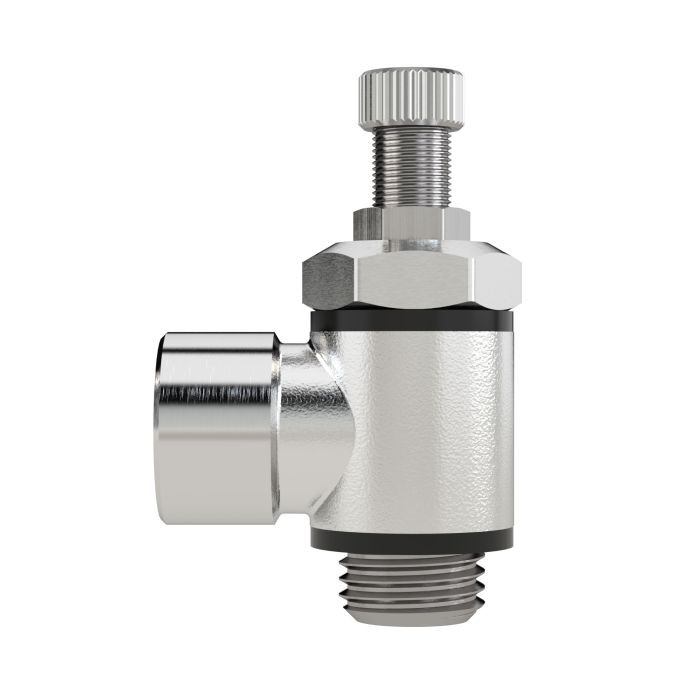

RIEGLER Throttle check valve,Supply air throttle,Thread.conn.G3/8i.,G3/8
Type number: 339.038-3/8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106901EAN :
4047322393676Category :
Unidirectional Flow Control ValvesWeight :
0.10 kgRIEGLER Throttle check valve for pneumatic control, max. 10 bar, G 3/8 - Type 339.038-3/8
The RIEGLER throttle check valve, supply air dr. threaded connection G 3/8 i., G 3/8 controls the speed of pneumatic actuators or blocks backflow. with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between -20 °C and 80 °C. G 3/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Base body | Nickel-plated brass |
| Captive seals | Polyamide glass fiber reinforced (only parts in hollow screw design) |
| Silicone-free | Yes |
| Thread | G 3/8 |
| SW | 20 mm |

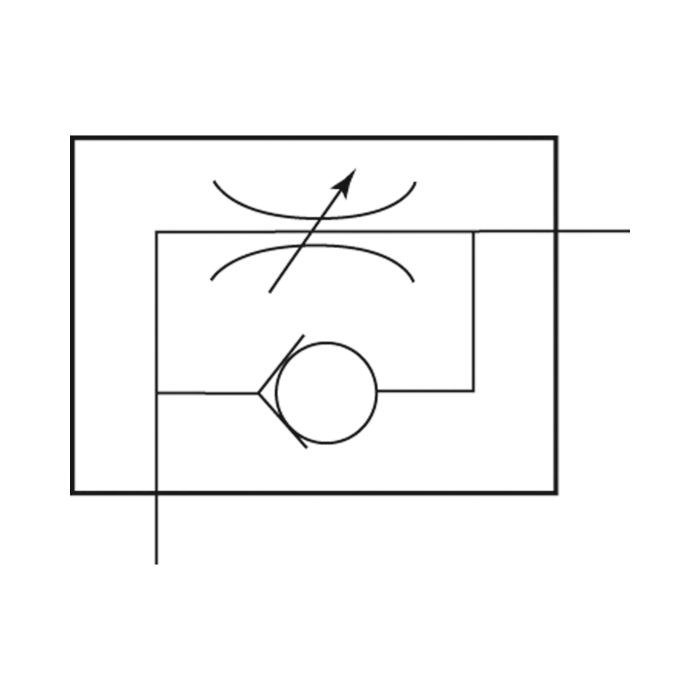

| Function | Supply air throttling (V) |
| Connection type | Threaded connection |

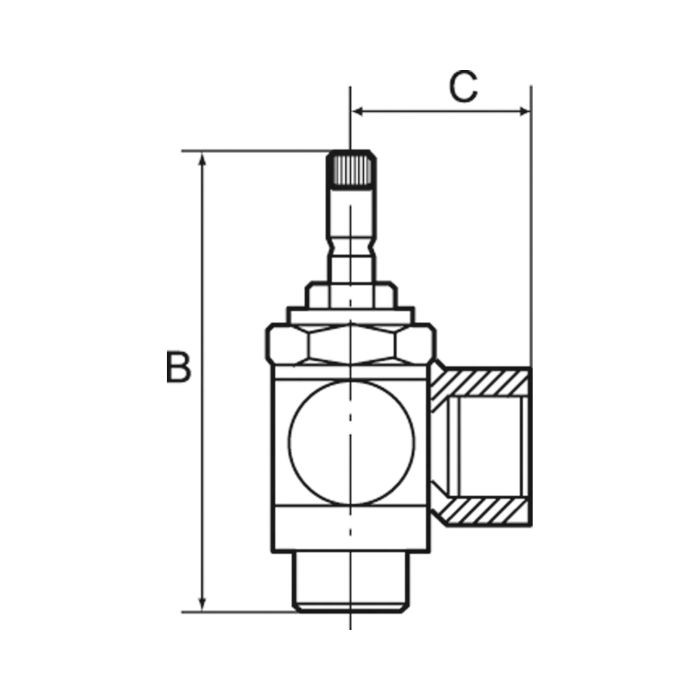

| B | 63 mm |
| C | 26 mm |
| Execution | adjustable with knurled screw |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/8 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, CW617N |
| Class name | PLUS |
| Construction method | Banjo bolt design |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106900] RIEGLER Throttle check valve,Supply air throttle,Thread.conn.G1/4i.,G1/4](/web/image/product.template/175957/image_128/%5B106900%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2CThread.conn.G1-4i.%2CG1-4?unique=9409818)
|
Type number: 339.014-1/4 |
13.36 € | |

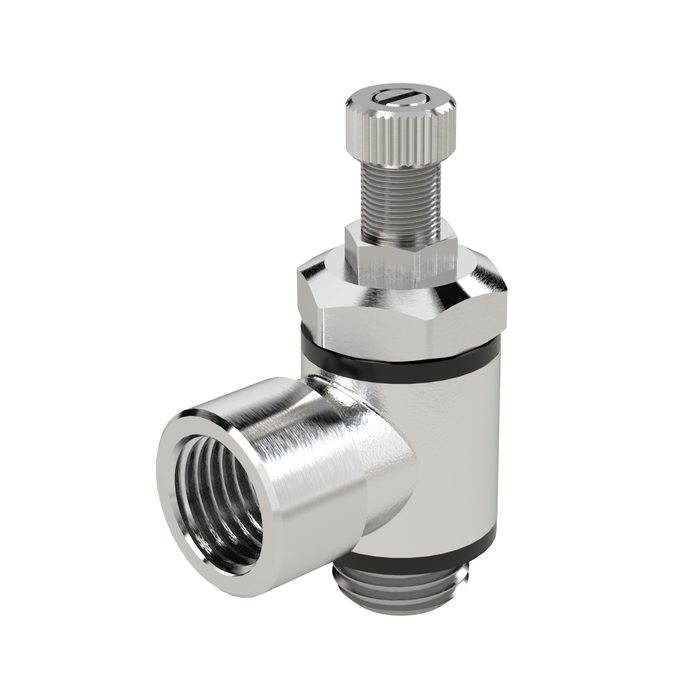

![[106899] RIEGLER Throttle check valve,Supply air throttle,Thread.conn.G1/8i.,G1/8](/web/image/product.template/175956/image_128/%5B106899%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2CThread.conn.G1-8i.%2CG1-8?unique=0967333)
|
