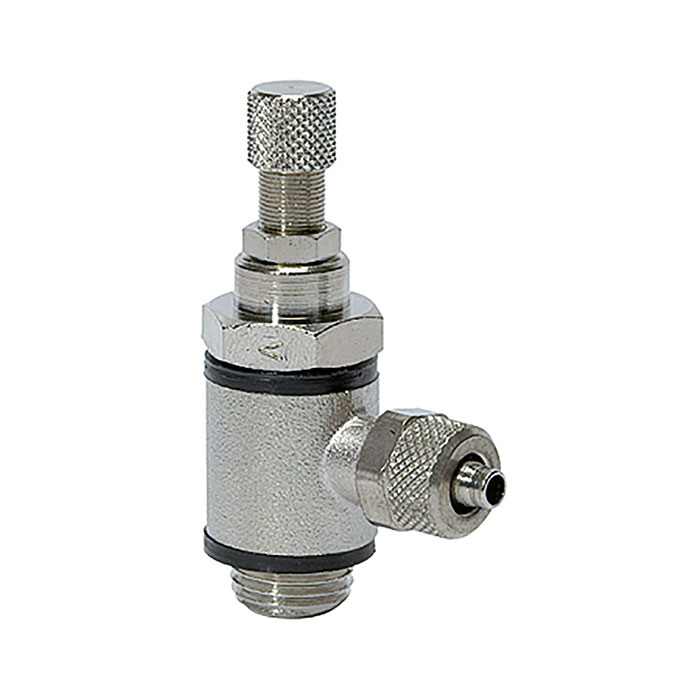

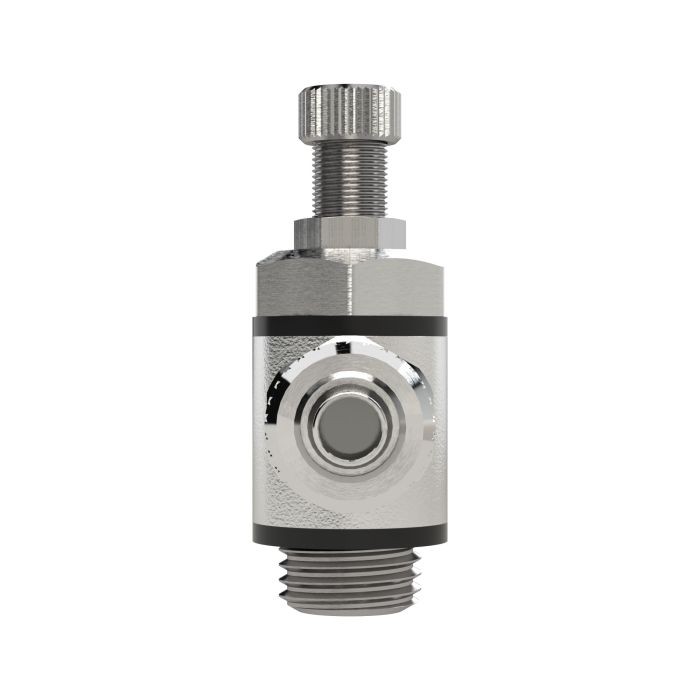

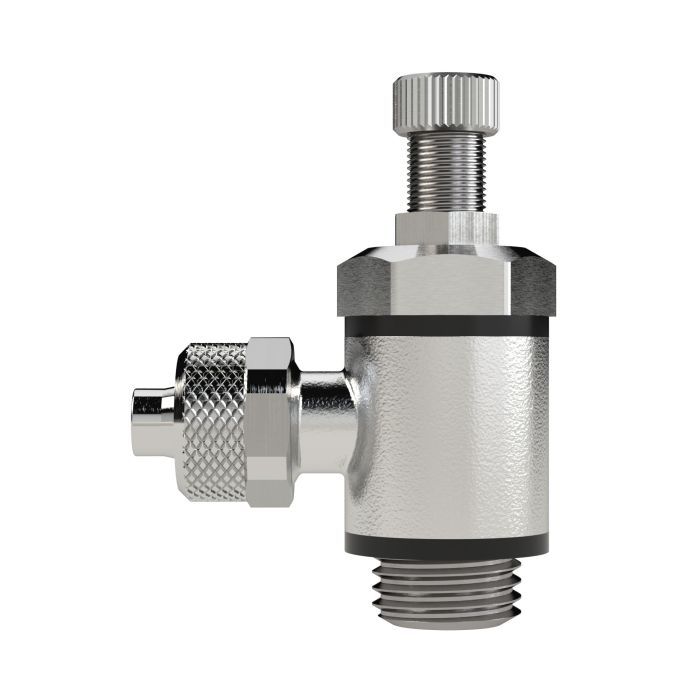

RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 5/3,G1/8
Type number: 339.018-5
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106905EAN :
4047322180894Category :
Unidirectional Flow Control ValvesWeight :
0.04 kgRIEGLER Throttle check valve for pneumatic control, max. 10 bar, G 1/8 - Type 339.018-5

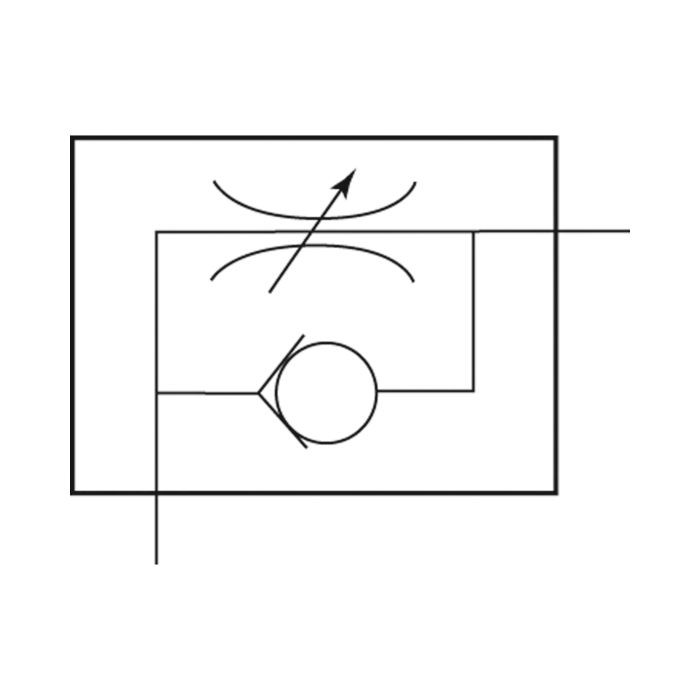

The RIEGLER throttle check valve, supply air pressure G1/8 Schl.5/3 regulates the speed of pneumatic actuators or blocks backflow. with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between -20 °C and 80 °C. G 1/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Base body | Nickel-plated brass |
| Captive seals | Polyamide glass fiber reinforced (only parts in hollow screw design) |
| Silicone-free | Yes |
| Thread | G 1/8 |
| SW | 14 mm |
| Function | Supply air throttling (V) |
| for hose | 5 / 3 mm |
| Connection type | Connection quick screw connection |
| B | 42.4 mm |
| C | 23 mm |
| Execution | adjustable with knurled screw |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
| Construction method | Banjo bolt design |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[106910] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose10/8,G1/4](/web/image/product.template/175967/image_128/%5B106910%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose10-8%2CG1-4?unique=5ea5c69)
|
Type number: 339.014-10 |
13.24 € | |
![[106902] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 4/2.5,M5](/web/image/product.template/175959/image_128/%5B106902%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose%204-2.5%2CM5?unique=61da709)
|
Type number: 339.005-4 |
11.96 € | |
![[106903] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 5/3, M5](/web/image/product.template/175960/image_128/%5B106903%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose%205-3%2C%20M5?unique=2a5ab16)
|
Type number: 339.005-5 |
11.96 € | |
![[106908] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 6/4,G1/4](/web/image/product.template/175965/image_128/%5B106908%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose%206-4%2CG1-4?unique=8ddb4bc)
|
Type number: 339.014-6 |
12.89 € | |

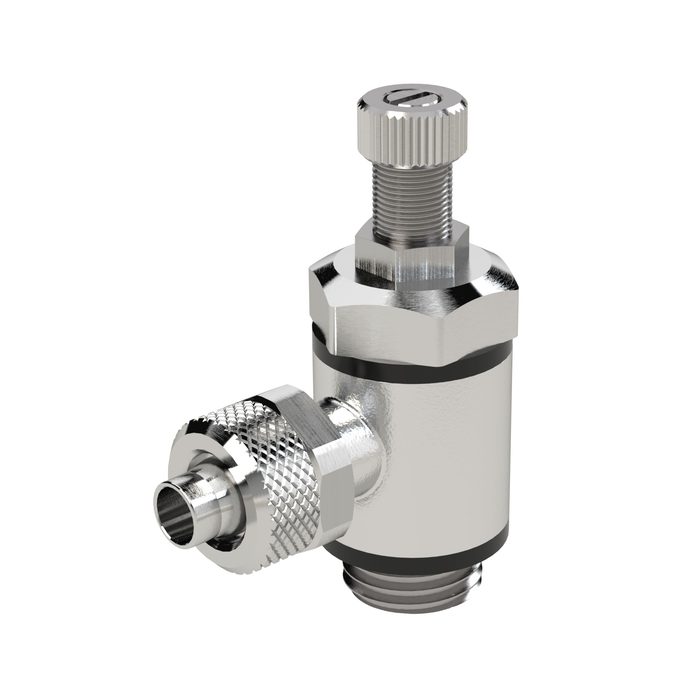

![[106906] RIEGLER Throttle check valve,Supply air throttle,quick conn.Hose 6/4,G1/8](/web/image/product.template/175963/image_128/%5B106906%5D%20RIEGLER%20Throttle%20check%20valve%2CSupply%20air%20throttle%2Cquick%20conn.Hose%206-4%2CG1-8?unique=550402c)
|
