RIEGLER Throttle valve, both directions throttling (B) M5 IT, M5
Type number: 359.005-M5
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
106964EAN :
4047322181051Category :
Bidirectional Flow Control ValvesWeight :
0.01 kgRIEGLER Throttle valve for pneumatic control, max. 10 bar, M5 - Type 359.005-M5
The RIEGLER throttle valve, slotted, throttle on both sides. ("B"), M5 female thread, M5 controls the speed of pneumatic actuators or blocks backflow. with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between -20 °C and 80 °C. M5 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Base body | Nickel-plated brass |
| Captive seals | Polyamide glass fiber reinforced (only parts in hollow screw design) |
| Silicone-free | Yes |
| Thread | M5 |
| SW | 8 mm |
| Function | Throttling on both sides (B) |
| Connection type | Threaded connection |
| B | 24.5 mm |
| C | 11.5 mm |
| Execution | adjustable with slotted screw |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | M5 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, CW617N |
| Class name | PLUS |
| Construction method | Banjo bolt design |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

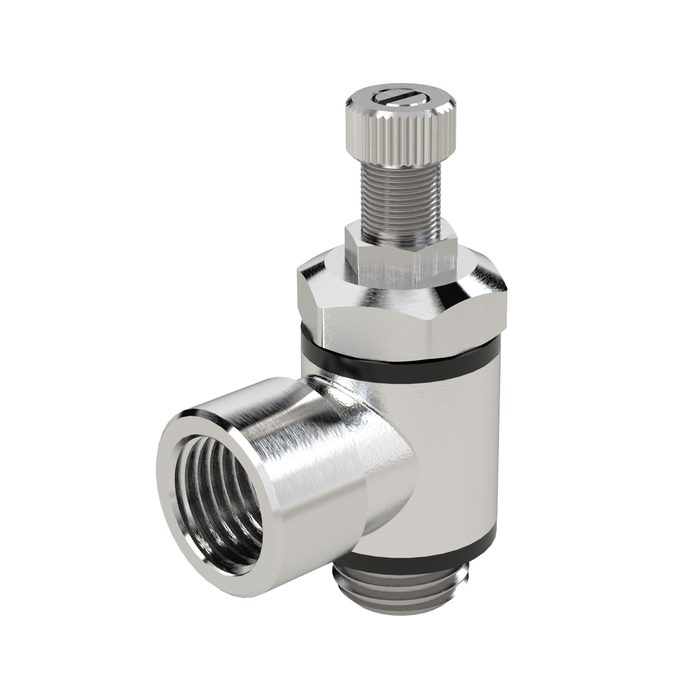

![[106988] RIEGLER Throttle valve, both directions throttling (B) M5 IT, M5](/web/image/product.template/176045/image_128/%5B106988%5D%20RIEGLER%20Throttle%20valve%2C%20both%20directions%20throttling%20%28B%29%20M5%20IT%2C%20M5?unique=47f7dd4)
|
