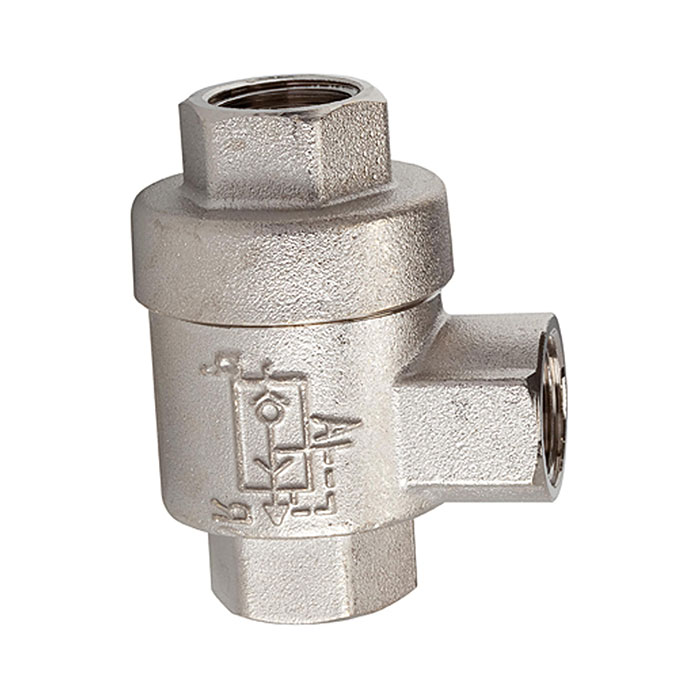

RIEGLER Quick relief valve, G 1/2, AF1 26, AF2 26, AF3 26
Type number: 500.12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Quick exhaust valve made of nickel-plated brass, for pneumatic control, max. 12 bar - Type 500.12
The RIEGLER quick exhaust valve, G 1/2, SW1 26, SW2 26, SW3 26 regulates the speed of pneumatic actuators or blocks backflow. The housing is made of nickel-plated brass with polyurethane seals. The operating pressure range is 0.5 bar to 12 bar. The operating temperature is between -20 °C and 80 °C. G 1/2 connection thread (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Housing | Nickel-plated brass |
| Membrane | Polyurethanes |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 12 bar |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1/2 |
| SW 1 | 26 mm |
| SW 2 | 26 mm |
| SW 3 | 26 mm |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 43 mm |
| B | 71 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107052] RIEGLER Quick relief valve, G 1/4, AF1 19, AF2 19, AF3 19](/web/image/product.template/176109/image_128/%5B107052%5D%20RIEGLER%20Quick%20relief%20valve%2C%20G%201-4%2C%20AF1%2019%2C%20AF2%2019%2C%20AF3%2019?unique=eec97d6)
|
Type number: 500.14 |
10.41 € | |
![[107051] RIEGLER Quick relief valve, G 1/8, AF1 14, AF2 14, AF3 14](/web/image/product.template/176108/image_128/%5B107051%5D%20RIEGLER%20Quick%20relief%20valve%2C%20G%201-8%2C%20AF1%2014%2C%20AF2%2014%2C%20AF3%2014?unique=987ca88)
|
Type number: 500.18 |
8.44 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

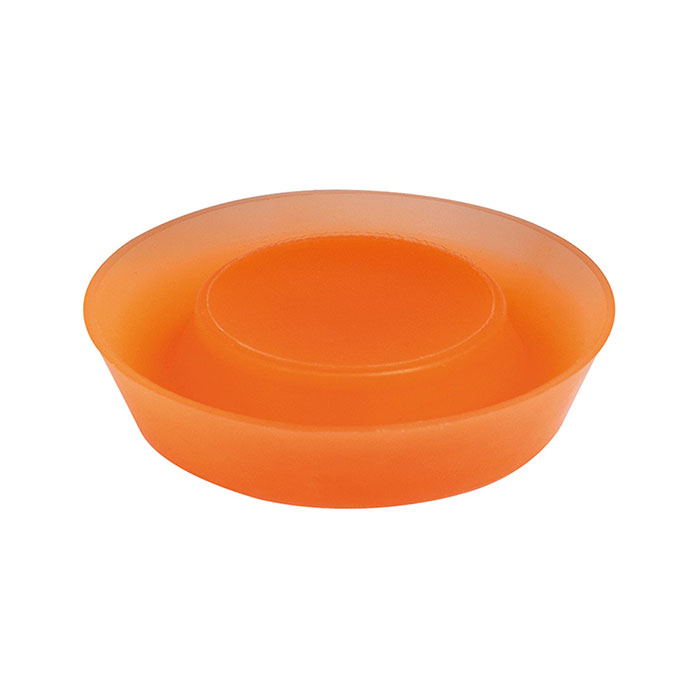

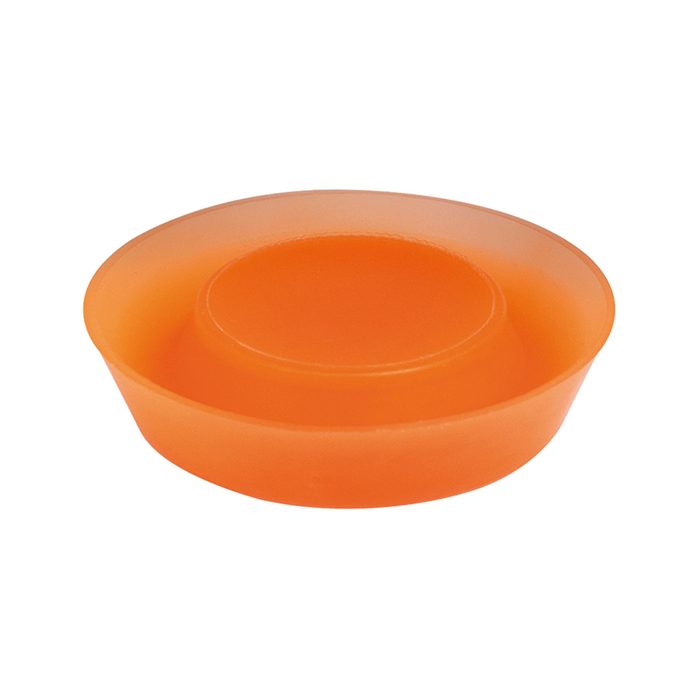

![[107056] RIEGLER Replacement diaphragm for venting valve G 1/2](/web/image/product.template/176113/image_128/%5B107056%5D%20RIEGLER%20Replacement%20diaphragm%20for%20venting%20valve%20G%201-2?unique=4d1b7a8)
|
