RIEGLER Quick-connect coupling I.D. 2.7, nickel-plated brass, Hose 6x4
Type number: 243.08/9-N
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Quick-release coupling made of nickel-plated brass, for compressed air supply - Type 243.08/9-N

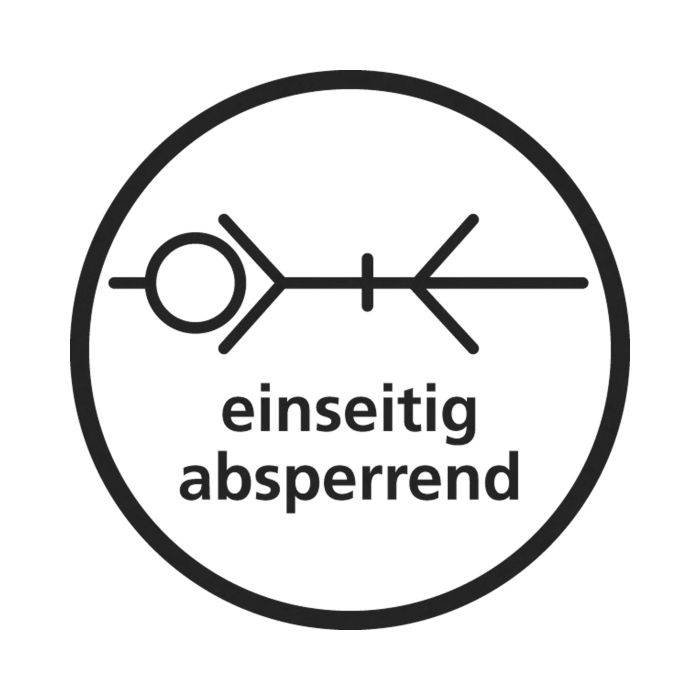

The RIEGLER quick-release coupling NW 2.7, MS nickel-plated, hose connection 6x4 connects and disconnects compressed air lines with a single movement - automatic sealing when disconnecting. The housing is made of nickel-plated brass with NBR seals. The permissible medium temperature is between -20 °C and 100 °C. Connection thread hose connection 6x4 - suitable for common industry standards. The flow rate is 165 l/min (air) (at 6 bar and Δp = 0.5 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Nickel-plated brass |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 165 l/min (air) |
| Ball | stainless steel |
| Spring | stainless steel |
| Valve body | Nickel-plated brass |
| Sleeve | Nickel-plated brass |
| Snap ring | stainless steel |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| NW | 2.7 |
| Length | 34 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | Trouser connection 6x4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

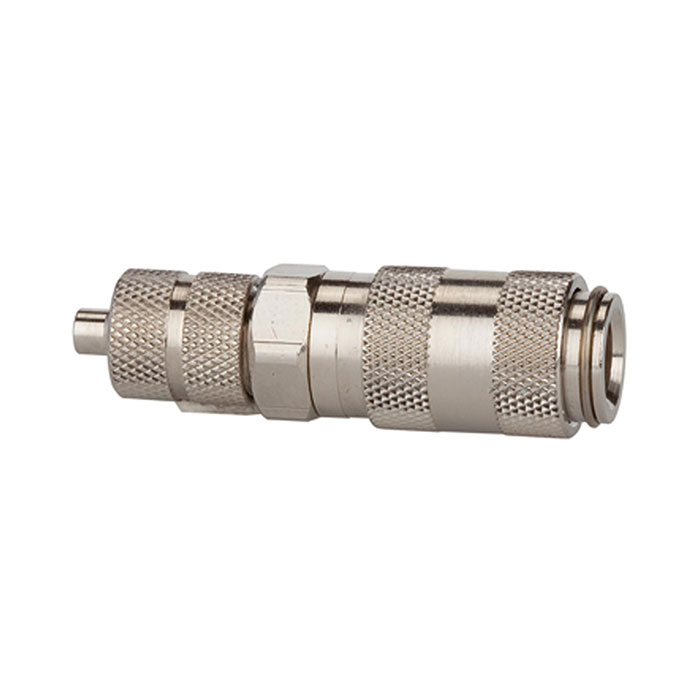

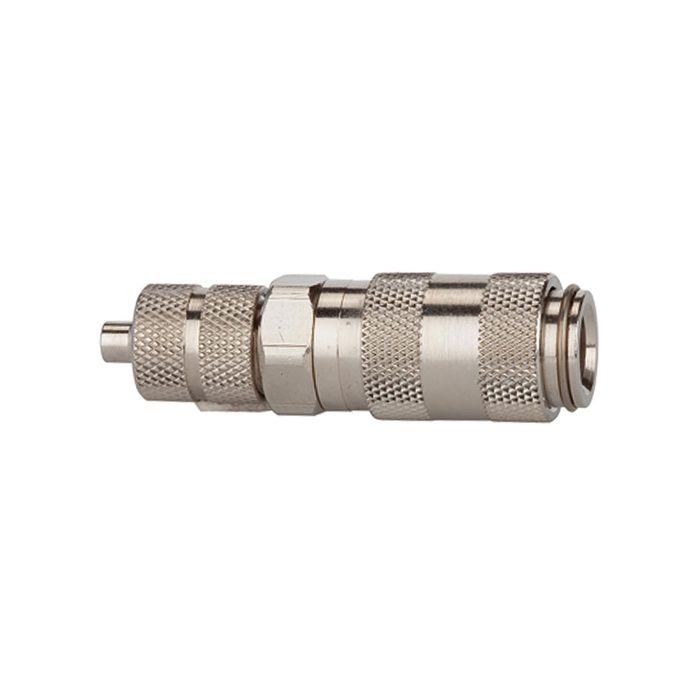

![[107093] RIEGLER Quick-connect coupling I.D. 2.7, nickel-plated brass, Hose 4x3](/web/image/product.template/176150/image_128/%5B107093%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20nickel-plated%20brass%2C%20Hose%204x3?unique=b8fdc3c)
|
Type number: 243.08/7-N |
9.28 € | |
![[107094] RIEGLER Quick-connect coupling I.D. 2.7, nickel-plated brass, Hose 5x3](/web/image/product.template/176151/image_128/%5B107094%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%202.7%2C%20nickel-plated%20brass%2C%20Hose%205x3?unique=9cef239)
|
Type number: 243.08/8-N |
9.28 € | |
