RIEGLER Quick-connect coupling I.D. 5, St. steel 1.4305, G 1/4 ET
Type number: 243.331
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Quick-connect coupling I.D. 5, Stainless steel 1.4305, G 1/4 ET, Operating pressure 0 - 35 bar, Temp. -15 °C to 200 °C
| Housing | Stainless steel 1.4305 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 200 °C |
| Flow rate | 560 l/min (air) |
| Ball | stainless steel |
| Spring | stainless steel |
| Valve body | Stainless steel 1.4305 |
| Sleeve | Stainless steel 1.4305 |
| Snap ring | stainless steel |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| SW | 17 mm |
| NW | 5 |
| Length | 38 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/4 AG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

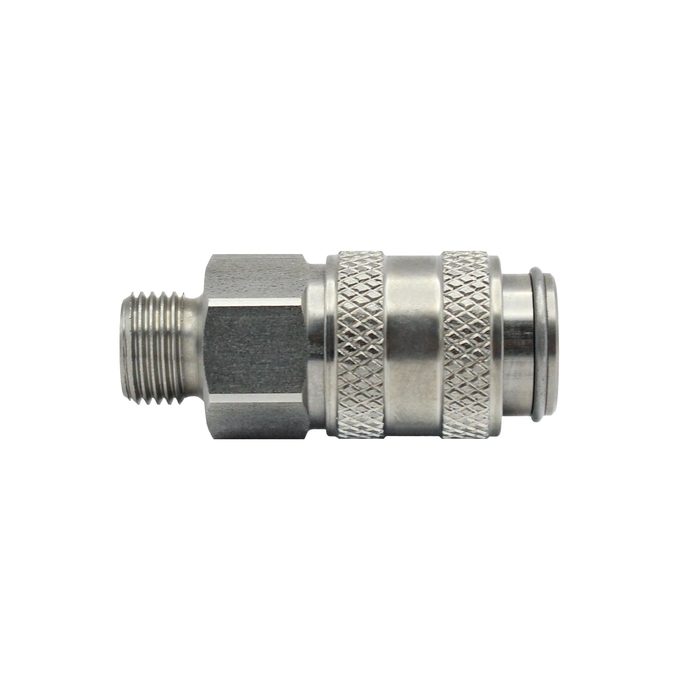

![[107192] RIEGLER Quick-connect coupling I.D. 5, St. steel 1.4305, G 1/8 ET](/web/image/product.template/176249/image_128/%5B107192%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%205%2C%20St.%20steel%201.4305%2C%20G%201-8%20ET?unique=4af4517)
|
Type number: 243.330 |
46.52 € | |

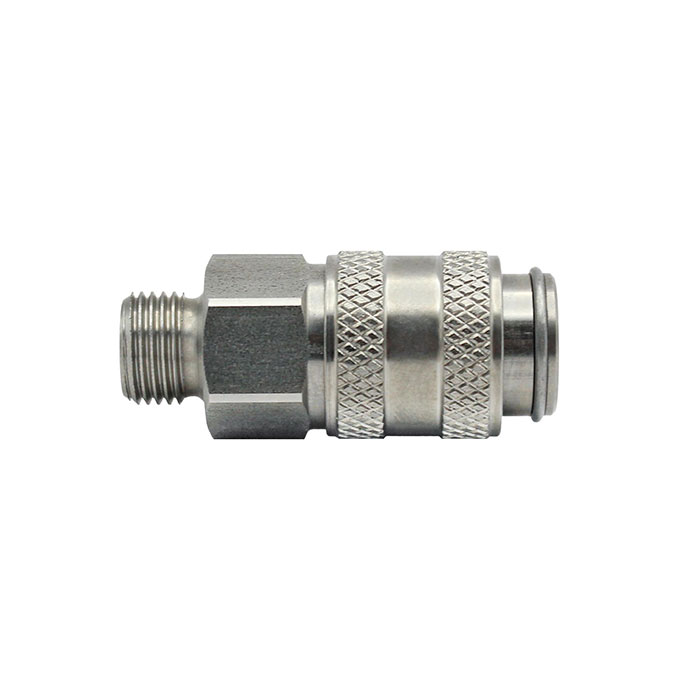

![[107194] RIEGLER Quick-connect coupling I.D. 5, St. steel 1.4305, G 3/8 ET](/web/image/product.template/176251/image_128/%5B107194%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%205%2C%20St.%20steel%201.4305%2C%20G%203-8%20ET?unique=57738b2)
|
