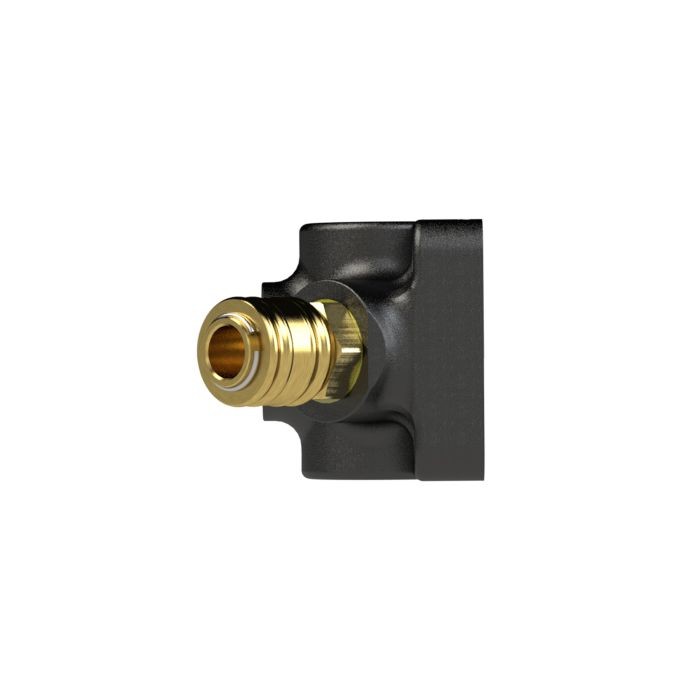

RIEGLER End distributor socket, G 3/4, 3 stand.Coupl. I.D. 7.2, max.15bar
Type number: EVDK34-3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER End cap made of glass fiber reinforced plastic PA6 GF 30, for compressed air supply - type EVDK34-3
The RIEGLER end valve G3/4, 3 stand couplings NW7.2, max. 15 bar air
connects and disconnects compressed air lines with a single action - automatic sealing when disconnecting. The housing is made of glass fiber reinforced plastic PA6 GF 30 and is designed for a maximum operating pressure of 15 bar. Connects and disconnects in seconds without tools.Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | glass fiber reinforced plastic PA6 GF 30 |
| Max. operating pressure | 15 bar |
| Tightening torque brass thread | 12 Nm |
| Tightening torque | 4 Nm |
| Height | 59 mm |
| Width | 120 mm |
| Input thread | G 3/4 |
| Connection coupling | 3 x brass coupling |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Thread material | Brass |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107275] RIEGLER End distributor socket, G 1/2, 2 stand.Coupl. I.D. 7.2, max.15bar](/web/image/product.template/176332/image_128/%5B107275%5D%20RIEGLER%20End%20distributor%20socket%2C%20G%201-2%2C%202%20stand.Coupl.%20I.D.%207.2%2C%20max.15bar?unique=734a08b)
|
Type number: EVDK12-2 |
26.61 € | |
![[107276] RIEGLER End distributor socket, G 1/2, 3 stand.Coupl. I.D. 7.2, max.15bar](/web/image/product.template/176333/image_128/%5B107276%5D%20RIEGLER%20End%20distributor%20socket%2C%20G%201-2%2C%203%20stand.Coupl.%20I.D.%207.2%2C%20max.15bar?unique=82ba056)
|
Type number: EVDK12-3 |
34.27 € | |

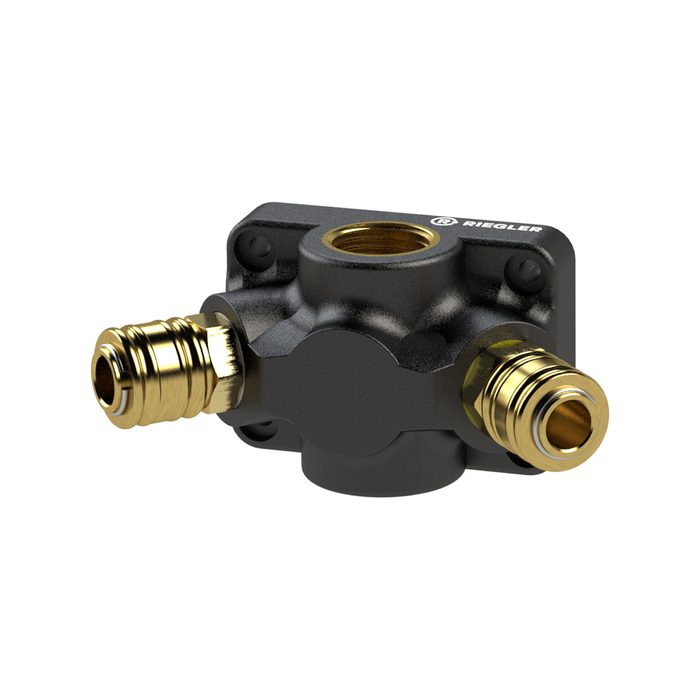

![[107277] RIEGLER End distributor socket, G 3/4, 2 stand.Coupl. I.D. 7.2, max.15bar](/web/image/product.template/176334/image_128/%5B107277%5D%20RIEGLER%20End%20distributor%20socket%2C%20G%203-4%2C%202%20stand.Coupl.%20I.D.%207.2%2C%20max.15bar?unique=dcf225c)
|
