RIEGLER Nipple for couplings I.D. 7.2-7.8, G 1/4 IT, rotating
Type number: 243.981
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

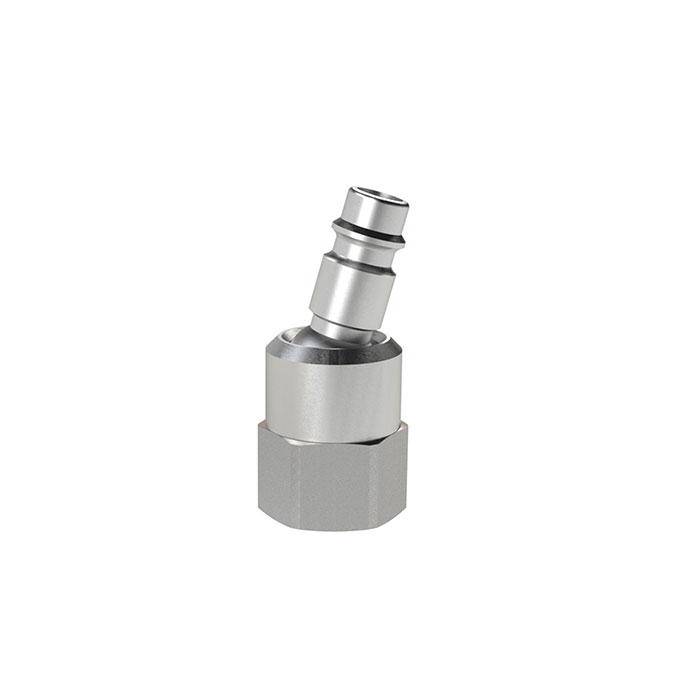

RIEGLER Nipple for couplings G 1/4 IG - Type 243.981
The RIEGLER nipple for couplings NW 7.2-7.8, MS nickel-plated, rotatable, G 1/4 female thread establishes the connection between the compressed air hose and the quick coupling. Connection thread G 1/4 IG - suitable for common industry standards. Simply plug in - secure, tight connection.
Field of application
Typical areas of application: Compressed air coupling systems.
| SW | 22 mm |
| NW | 7,2 - 7,8 |
| Length | 53 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 FEMALE THREAD |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

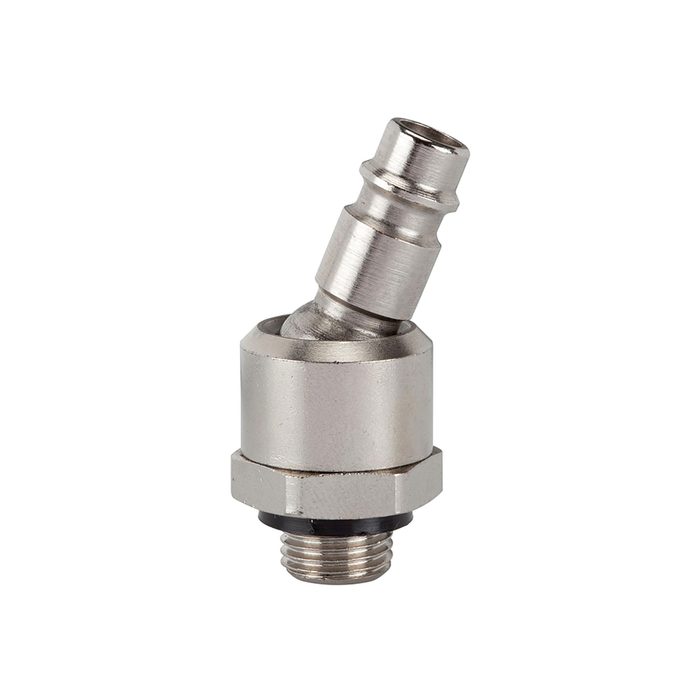

![[107321] RIEGLER Nipple for couplings I.D. 7.2-7.8, G 1/4 ET, rotating](/web/image/product.template/176378/image_128/%5B107321%5D%20RIEGLER%20Nipple%20for%20couplings%20I.D.%207.2-7.8%2C%20G%201-4%20ET%2C%20rotating?unique=18d2acf)
|
Type number: 243.982 |
6.10 € | |
