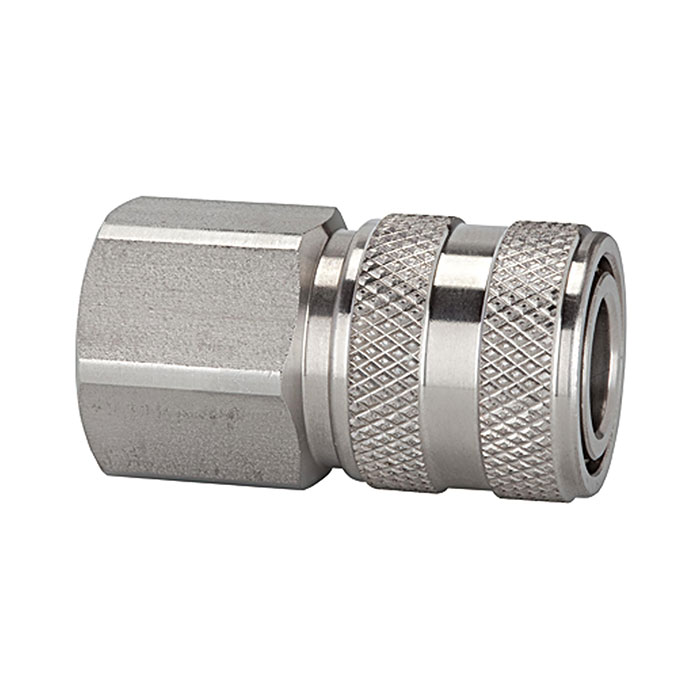

RIEGLER Quick-connect coupling I.D. 7.2, St. steel 1.4305, G 1/4 IT
Type number: 243.111
EAN: 4047322058490
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Quick-release coupling NW 7.2, stainless steel 1.4305, G 1/4 female thread, max. operating pressure 35 bar, medium/ambient temp. -25 °C to 200 °C
| Housing | Stainless steel 1.4305 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Max. operating pressure | 35 bar |
| Medium temperature min. | -25 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 200 °C |
| Flow rate | 1000 l/min (air) |
| Spring | Stainless steel 1.4310 |
| Valve body | Stainless steel 1.4305 |
| Sleeve | Stainless steel 1.4305 |
| Snap ring | Stainless steel 1.4310 |
| Locking pins | Stainless steel 1.4401 |
| SW | 22 mm |
| NW | 7.2 |
| Length | 43 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/4 FEMALE THREAD |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
