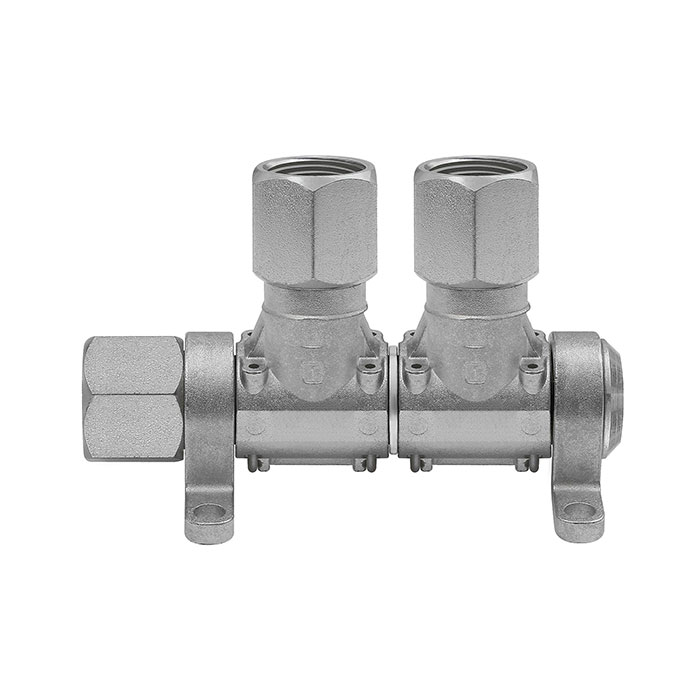

RIEGLER Compressed air distributor »Multi-Link«, without coupling, 2 unit
Type number: VTM-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
107389EAN :
4047322350235Weight :
0.50 kgRIEGLER Compressed air manifold "Multi-Link" made of galvanized steel / brass, for pipeline construction - type VTM-2
The RIEGLER compressed air distributor "Multi-Link", without coupling, tapping unit 2 branches a compressed air line to several outlets. The housing is made of galvanized steel / brass with NBR seals. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 100 °C. Connection thread G 1/2 IG - suitable for common industry standards. Suitable for compressed air, non-aggressive gases. Uniform supply of several consumers.
Field of application
Typical areas of application: Compressed air distribution on machines and systems.
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, non-aggressive gases |
| Connection thread | G 1/2 inside |
| Sealing material | NBR |
| Max. operating pressure | 16 bar |
| Material | Galvanized steel / brass |
| Withdrawal units | 2 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

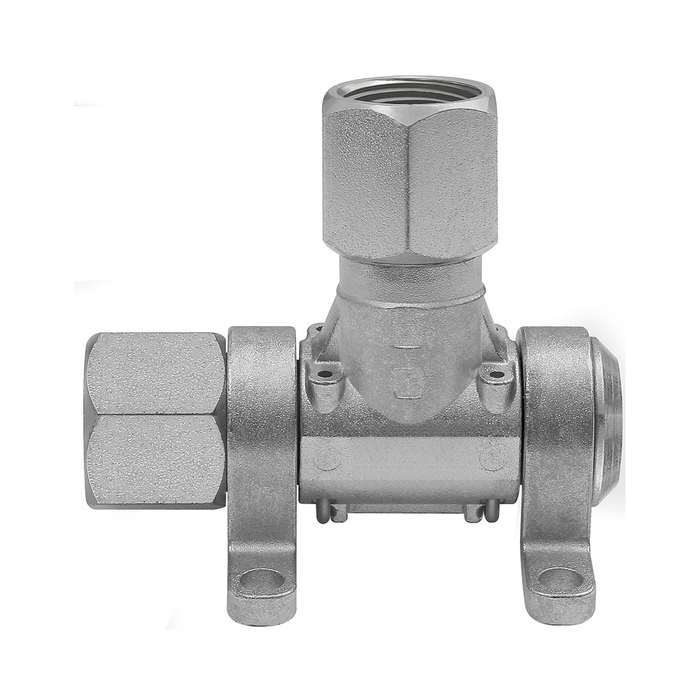

![[107388] RIEGLER Compressed air distributor »Multi-Link«, without coupling, 1 unit](/web/image/product.template/176444/image_128/%5B107388%5D%20RIEGLER%20Compressed%20air%20distributor%20%C2%BBMulti-Link%C2%AB%2C%20without%20coupling%2C%201%20unit?unique=5de5cfa)
|
Type number: VTM-1 |
79.50 € | |
![[107390] RIEGLER Compressed air distributor »Multi-Link«, without coupling, 3 unit](/web/image/product.template/176446/image_128/%5B107390%5D%20RIEGLER%20Compressed%20air%20distributor%20%C2%BBMulti-Link%C2%AB%2C%20without%20coupling%2C%203%20unit?unique=77d4680)
|
Type number: VTM-3 |
146.76 € | |
![[107391] RIEGLER Compressed air distributor »Multi-Link«, without coupling, 4 unit](/web/image/product.template/176447/image_128/%5B107391%5D%20RIEGLER%20Compressed%20air%20distributor%20%C2%BBMulti-Link%C2%AB%2C%20without%20coupling%2C%204%20unit?unique=3ff80c6)
|
Type number: VTM-4 |
180.07 € | |
![[107392] RIEGLER Compressed air distributor »Multi-Link«, without coupling, 5 unit](/web/image/product.template/176448/image_128/%5B107392%5D%20RIEGLER%20Compressed%20air%20distributor%20%C2%BBMulti-Link%C2%AB%2C%20without%20coupling%2C%205%20unit?unique=add6c18)
|
Type number: VTM-5 |
230.72 € | |
