RIEGLER Quick-connect coupling I.D. 7.8, St. steel 1.4305, G 1/2 IT

Price:

135.18 €

English (US)
  2. Shop
  3. Robust Couplings (High-Performance Couplings)
  4. RIEGLER Quick-connect coupling I.D. 7.8, St. steel 1.4305, G 1/2 IT
RIEGLER Quick-connect coupling I.D. 7.8, St. steel 1.4305, G 1/2 ET
RIEGLER Quick-connect coupling I.D. 7.8, St. steel 1.4305, G 1/2 ET
135.18 € 135.18 €
RIEGLER Quick-connect coupling I.D. 7.8, St. steel 1.4305, G 1/4 ET
RIEGLER Quick-connect coupling I.D. 7.8, St. steel 1.4305, G 1/4 ET
127.32 € 127.32 €

RIEGLER Quick-connect coupling I.D. 7.8, St. steel 1.4305, G 1/2 IT

https://www.filcom-technik.de/web/image/product.template/191336/image_1920?unique=ba070e9

Type number: 243.60 C

135.18 € 135.18 EUR 135.18 € VAT Included

212.99 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

107422

EAN :

4047322060370

Category :

Robust Couplings (High-Performance Couplings)

Weight :

0.12 kg

Quick-release coupling NW 7.8, stainless steel 1.4305, G 1/2 female thread, operating pressure 0-35 bar, medium/ambient temp. -15 °C to 200 °C

Housing Stainless steel 1.4305
Sealing material FKM
Flow rate measurement at 6 bar and Î"<sub>p </sub>= 0.5 bar
Medium temperature min. -15 °C
Medium temperature max. 200 °C
Ambient temperature min. -15 °C
Ambient temperature max. 200 °C
Flow rate 1800 l/min (air)
Ball Stainless steel
Spring Stainless steel
Valve body Stainless steel 1.4305
Sleeve Stainless steel 1.4305
Snap ring Stainless steel
Operating pressure 0 - 35 bar, max. static operating pressure (without pulsation)
SW 24 mm
NW 7.8
Length 57.5 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
Connection G 1/2 IG
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Class name STAINLESS STEEL

Variants / Alternatives

Product Price

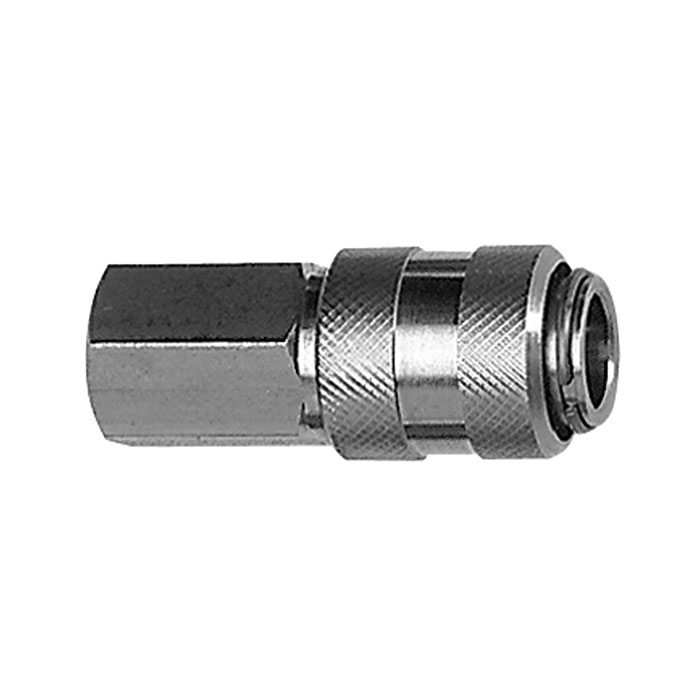

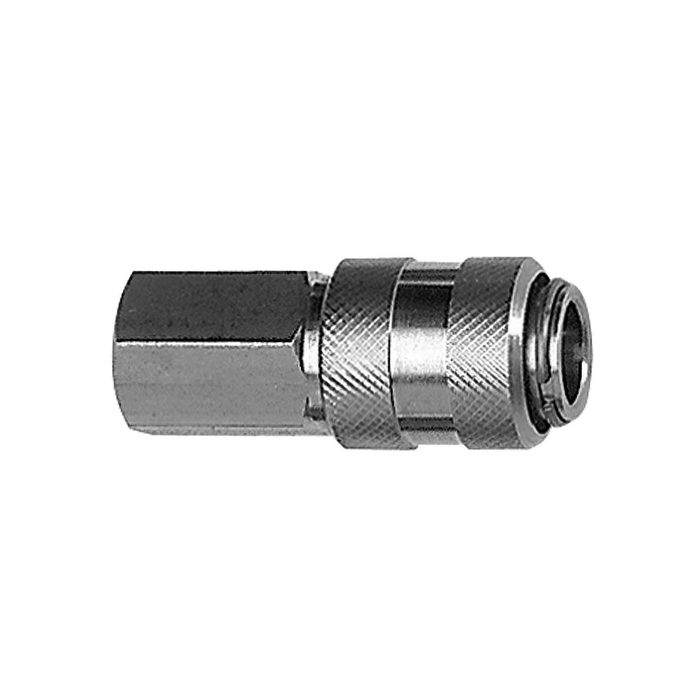

[107420] RIEGLER Quick-connect coupling I.D. 7.8, St. steel 1.4305, G 1/4 IT

Type number: 243.60 A

 127.32 €
[107421] RIEGLER Quick-connect coupling I.D. 7.8, St. steel 1.4305, G 3/8 IT

Type number: 243.60 B

 127.32 €
​
