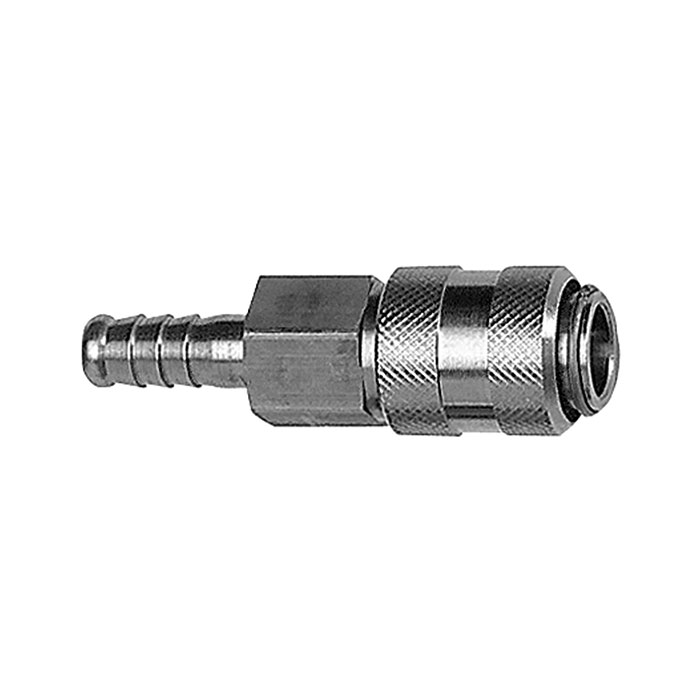

RIEGLER Quick-connect coupling I.D. 7.8, St. steel 1.4305, Sleeve I.D. 9
Type number: 243.70 C
EAN: 4047322060462
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Product no. :
107425EAN :
4047322060462Weight :
0.10 kgQuick-release coupling NW 7.8, stainless steel 1.4305, spout LW 9, operating pressure 0-35 bar, medium/ambient temp. -15 °C to 200 °C
| Housing | Stainless steel 1.4305 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 200 °C |
| Flow rate | 1800 l/min (air) |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Valve body | Stainless steel 1.4305 |
| Sleeve | Stainless steel 1.4305 |
| Snap ring | Stainless steel |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| SW | 19 mm |
| NW | 7.8 |
| Length | 73.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | LW 9 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | STAINLESS STEEL |
