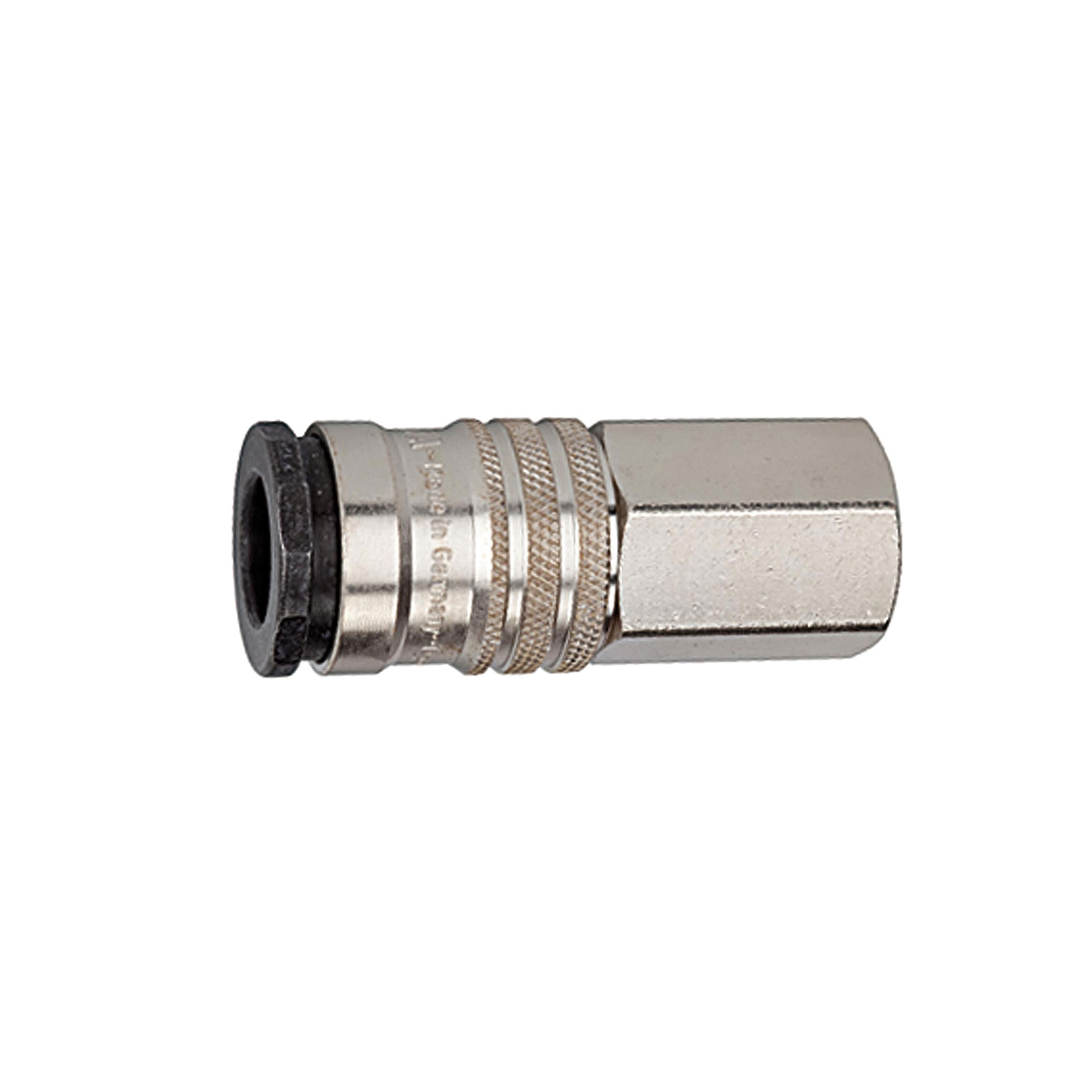

RIEGLER Quick-connect coupling I.D. 10, High flow rate, G 3/4 IT
Type number: 241.54
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
107446EAN :
4047322207423Weight :
0.25 kgRIEGLER Quick-release coupling for compressed air supply, max. 35 bar, G 3/4 IG - Type 241.54
The RIEGLER quick-release coupling NW 10, high flow, G 3/4 IG connects and disconnects compressed air lines with a single movement - automatic sealing when disconnecting. with NBR seals. The operating pressure range is 0 bar to 35 bar. The permissible medium temperature is between -20 °C and 100 °C. Connection thread G 3/4 IG - suitable for common industry standards. The flow rate is 3600 l/min (air) (at 6 bar and Δp = 0.5 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 35 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 3600 l/min (air) |
| Valve seat | Brass |
| Ball | stainless steel |
| Spring | stainless steel |
| Valve body | Steel, QPQ treated |
| Snap ring | stainless steel |
| Threaded piece | Nickel-plated brass |
| Unlocking sleeve | Nickel-plated brass |
| Valve | Brass |
| SW | 32 mm |
| NW | 10 |
| Length | 73.7 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/4 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
