RIEGLER Quick-connect coupling I.D. 12, Garage coupling, G 1/2 ET
Type number: 243.60
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
107477EAN :
4047322060349Weight :
0.31 kgRIEGLER Quick-release coupling made of bare brass, for compressed air supply, max. 16 bar - Type 243.60
The RIEGLER quick-release coupling NW 12, garage coupling, G 1/2 AG connects and disconnects compressed air lines with a single movement - automatic sealing when disconnecting. The housing is made of bright brass with NBR seals. Designed for a maximum operating pressure of 16 bar. The permissible medium temperature is between -10 °C and 50 °C. Connection thread G 1/2 AG - suitable for common industrial standards. The flow rate is 4150 l/min (air) (at 6 bar and Δp = 0.5 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Max. operating pressure | 16 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Flow rate | 4150 l/min (air) |
| Material | Brass bright |
| Spring | Stainless steel |
| SW | 30 mm |
| NW | 12 |
| Length | 82 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 AG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

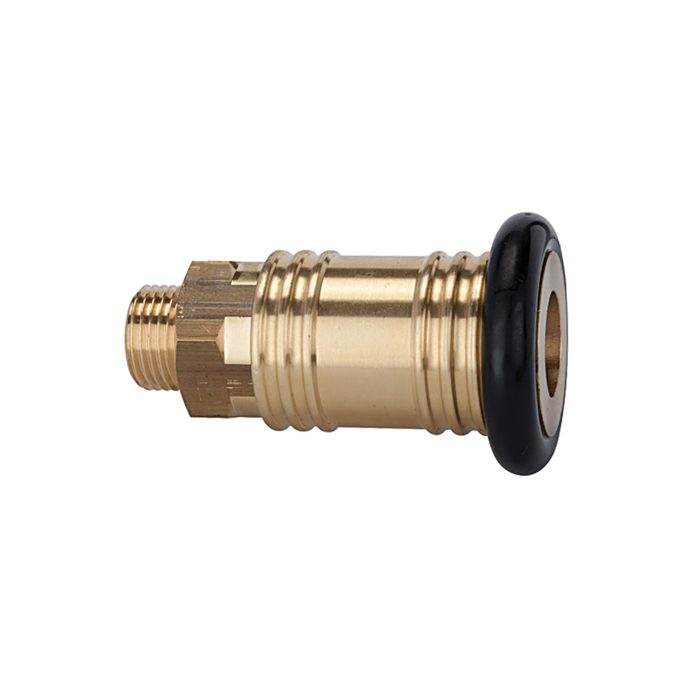

![[107478] RIEGLER Quick-connect coupling I.D. 12, Garage coupling, G 3/4 ET](/web/image/product.template/191392/image_128/%5B107478%5D%20RIEGLER%20Quick-connect%20coupling%20I.D.%2012%2C%20Garage%20coupling%2C%20G%203-4%20ET?unique=403c618)
|
