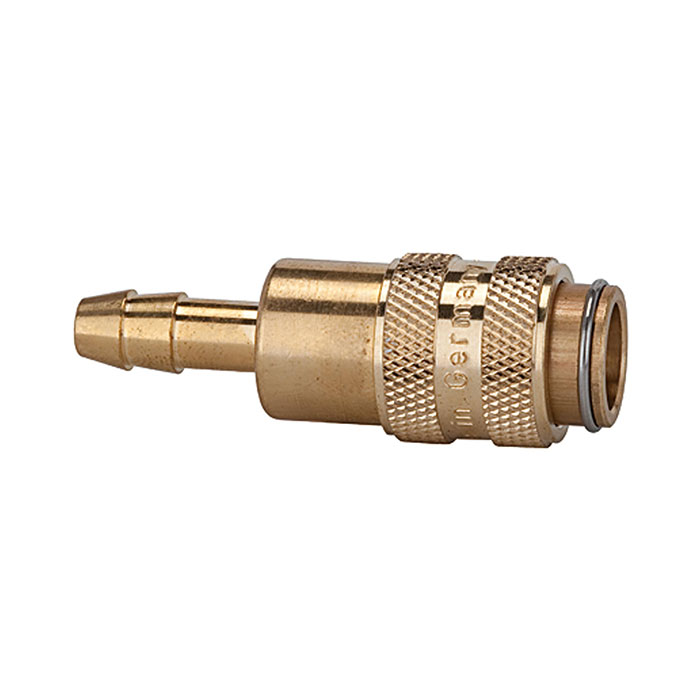

RIEGLER Quick-connect coupl. I.D. 5, locking on both sides, Sleeve I.D. 6
Type number: 243.26/S-B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Quick-release coupling made of bare brass, for compressed air supply, LW 6 - Type 243.26/S-B
The RIEGLER quick-release coupling NW 5, shut-off on both sides, nozzle LW 6 connects and disconnects compressed air lines with a single movement - automatic sealing when disconnecting. The housing is made of bright brass with NBR seals. The permissible medium temperature is between -20 °C and 100 °C. Connection thread LW 6 - suitable for common industrial standards. The flow rate is 310 l/min (air) (at 6 bar and Δp = 0.5 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Brass bright |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 310 l/min (air) |
| Ball | stainless steel |
| Spring | stainless steel |
| Valve body | Brass bright |
| Sleeve | Brass bright |
| Snap ring | stainless steel |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| NW | 5 |
| Length | 46.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | LW 6 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107496] RIEGLER Quick-connect coupl. I.D. 5, locking on both sides, Sleeve I.D. 4](/web/image/product.template/191408/image_128/%5B107496%5D%20RIEGLER%20Quick-connect%20coupl.%20I.D.%205%2C%20locking%20on%20both%20sides%2C%20Sleeve%20I.D.%204?unique=8546947)
|
Type number: 243.25-B |
4.49 € | |

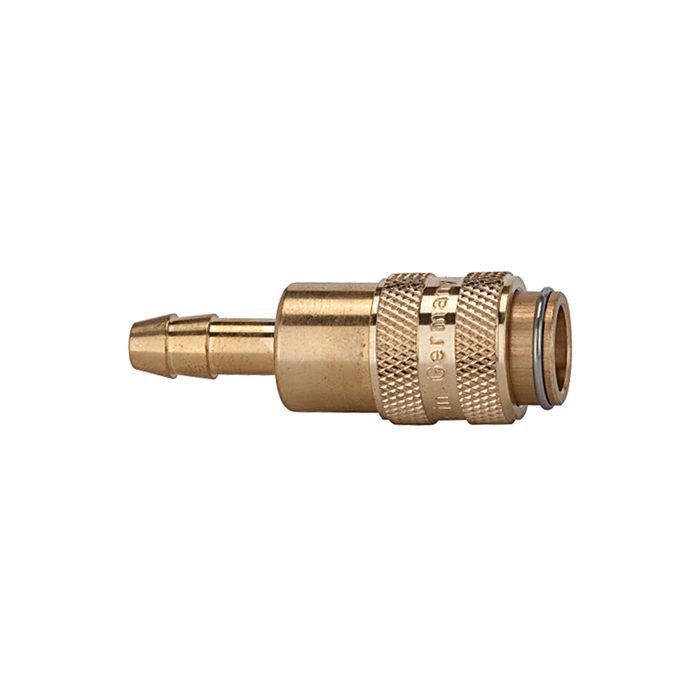

![[107498] RIEGLER Quick-connect coupl. I.D. 5, locking on both sides, Sleeve I.D. 9](/web/image/product.template/191410/image_128/%5B107498%5D%20RIEGLER%20Quick-connect%20coupl.%20I.D.%205%2C%20locking%20on%20both%20sides%2C%20Sleeve%20I.D.%209?unique=a03daa8)
|
