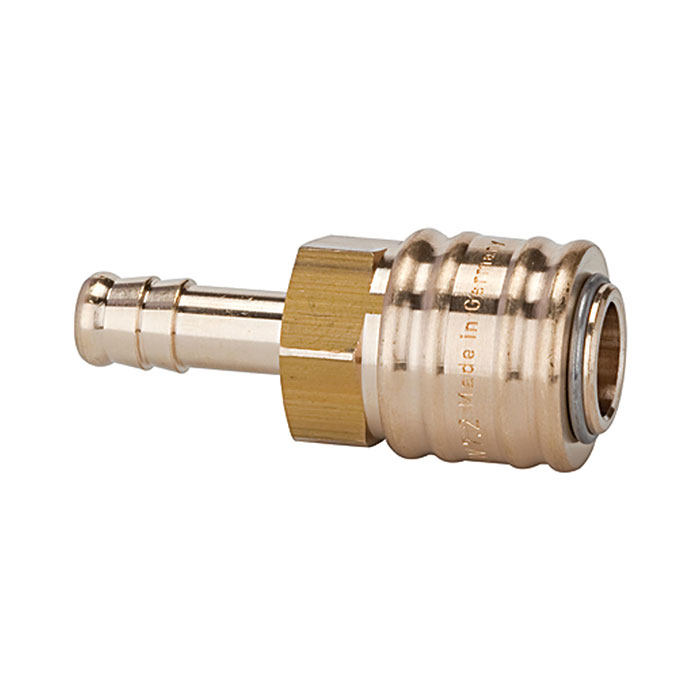

RIEGLER Quick-connect coupling I.D. 7.2, locking on both sides, I.D. 8
Type number: 243.47-B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

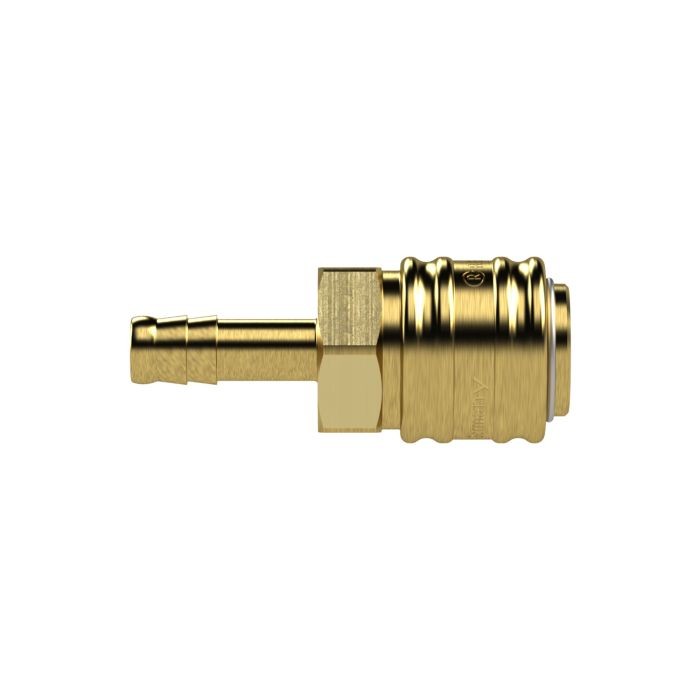

RIEGLER Quick-release coupling made of bare brass, for compressed air supply, LW 8 - Type 243.47-B

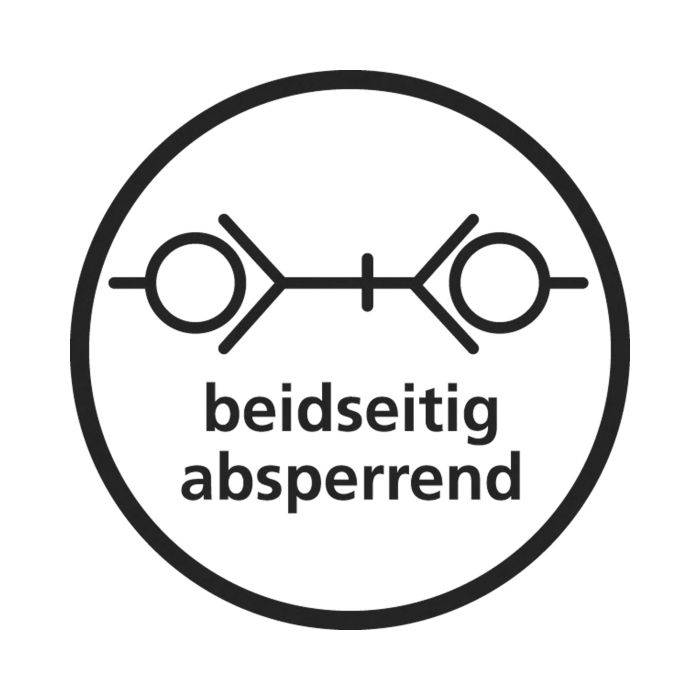

The RIEGLER quick-release coupling NW 7.2, shut-off on both sides, nozzle LW 8 connects and disconnects compressed air lines with a single movement - automatic sealing when disconnecting. The housing is made of bright brass with NBR seals. The permissible medium temperature is between -20 °C and 100 °C. Connection thread LW 8 - suitable for common industrial standards. The flow rate is 700 l/min (air) (at 6 bar and Δp = 0.5 bar). Connects and disconnects in seconds without tools.
Field of application
Typical areas of application: Workshop, production and mobile compressed air supply.
| Housing | Brass bright |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 700 l/min (air) |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Valve body | Brass bright |
| Sleeve | Brass bright |
| Snap ring | Stainless steel |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| SW | 22 mm |
| NW | 7.2 |
| Length | 58.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | LW 8 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
