RIEGLER Plug-in connector, I.D. 7.2 - 7.8, locking on both sides, I.D. 9
Type number: 243.07-B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Plug-in nozzle for compressed air supply, LW 9 - Type 243.07-B
The RIEGLER plug-in nozzle, NW 7,2,-7,8, shut-off on both sides, MS blank, nozzle LW 9 establishes the connection between the compressed air hose and the quick coupling. Connection thread LW 9 - suitable for common industry standards. Simply plug in - secure, tight connection.
Field of application
Typical areas of application: Compressed air coupling systems.
| NW | 7,2 - 7,8 |
| Length | 61.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | LW 9 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

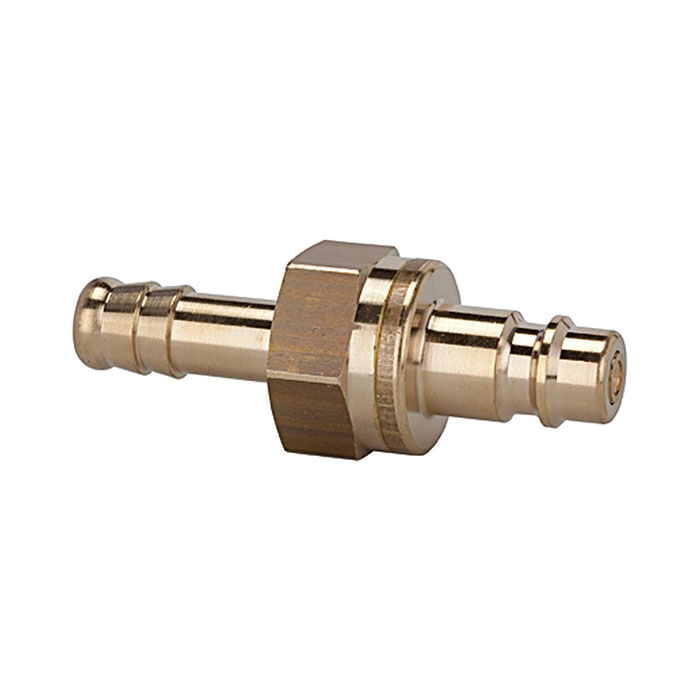

![[107520] RIEGLER Plug-in connector, I.D. 7.2 - 7.8, locking on both sides, I.D. 10](/web/image/product.template/191432/image_128/%5B107520%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2%20-%207.8%2C%20locking%20on%20both%20sides%2C%20I.D.%2010?unique=6959d4a)
|
Type number: 243.352-B |
13.20 € | |
![[107521] RIEGLER Plug-in connector, I.D. 7.2 - 7.8, locking on both sides, I.D. 13](/web/image/product.template/191433/image_128/%5B107521%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2%20-%207.8%2C%20locking%20on%20both%20sides%2C%20I.D.%2013?unique=dc9c195)
|
Type number: 243.10-B |
11.08 € | |

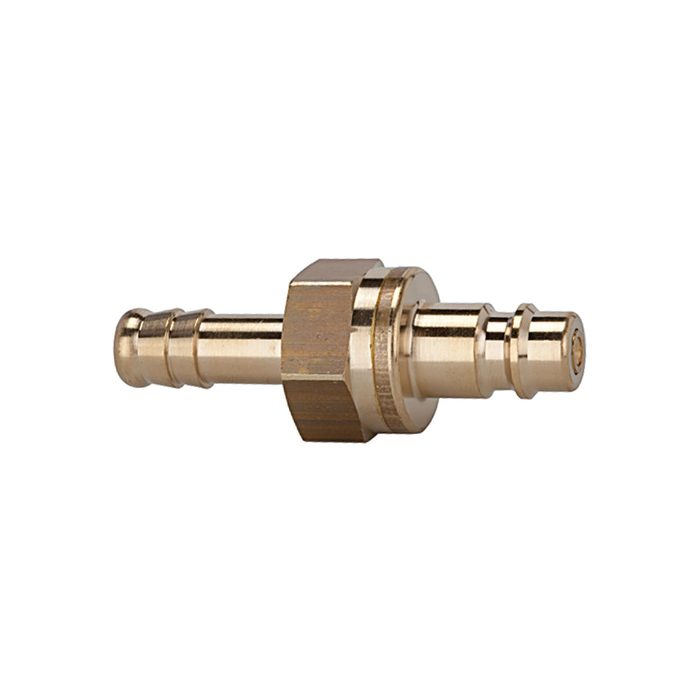

![[107517] RIEGLER Plug-in connector, I.D. 7.2 - 7.8, locking on both sides, I.D. 6](/web/image/product.template/191429/image_128/%5B107517%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2%20-%207.8%2C%20locking%20on%20both%20sides%2C%20I.D.%206?unique=c91a407)
|
Type number: 243.06-B |
10.28 € | |
![[107518] RIEGLER Plug-in connector, I.D. 7.2 - 7.8, locking on both sides, I.D. 8](/web/image/product.template/191430/image_128/%5B107518%5D%20RIEGLER%20Plug-in%20connector%2C%20I.D.%207.2%20-%207.8%2C%20locking%20on%20both%20sides%2C%20I.D.%208?unique=0cf27ad)
|
Type number: 243.351-B |
13.20 € | |
