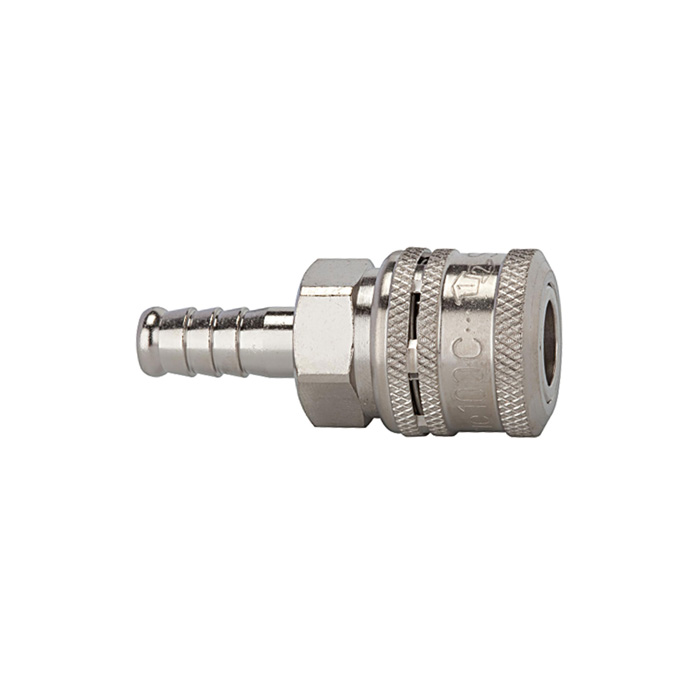

RIEGLER Safety coupling NW 7.8, type SEK, nickel-plated brass, spout LW 10
Type number: 249.104
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Safety coupling NW 7.8, type SEK, nickel-plated brass, spout LW 10, operating pressure -0.95-10 bar, medium/ambient temp. -20°C to 60°C
| Housing | Nickel-plated brass |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p</sub> = 1 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 60 °C |
| Flow rate | 1350 l/min (air) |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Valve body | Nickel-plated brass |
| Sleeve | Nickel-plated brass |
| Operating pressure | -0.95 - 10 bar, max. static operating pressure (without pulsation) |
| SW | 22 mm |
| Length | 60 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | LW 10 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | EASY |
| Stand Material Compliance | 45078 |
| NW | 7.8 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

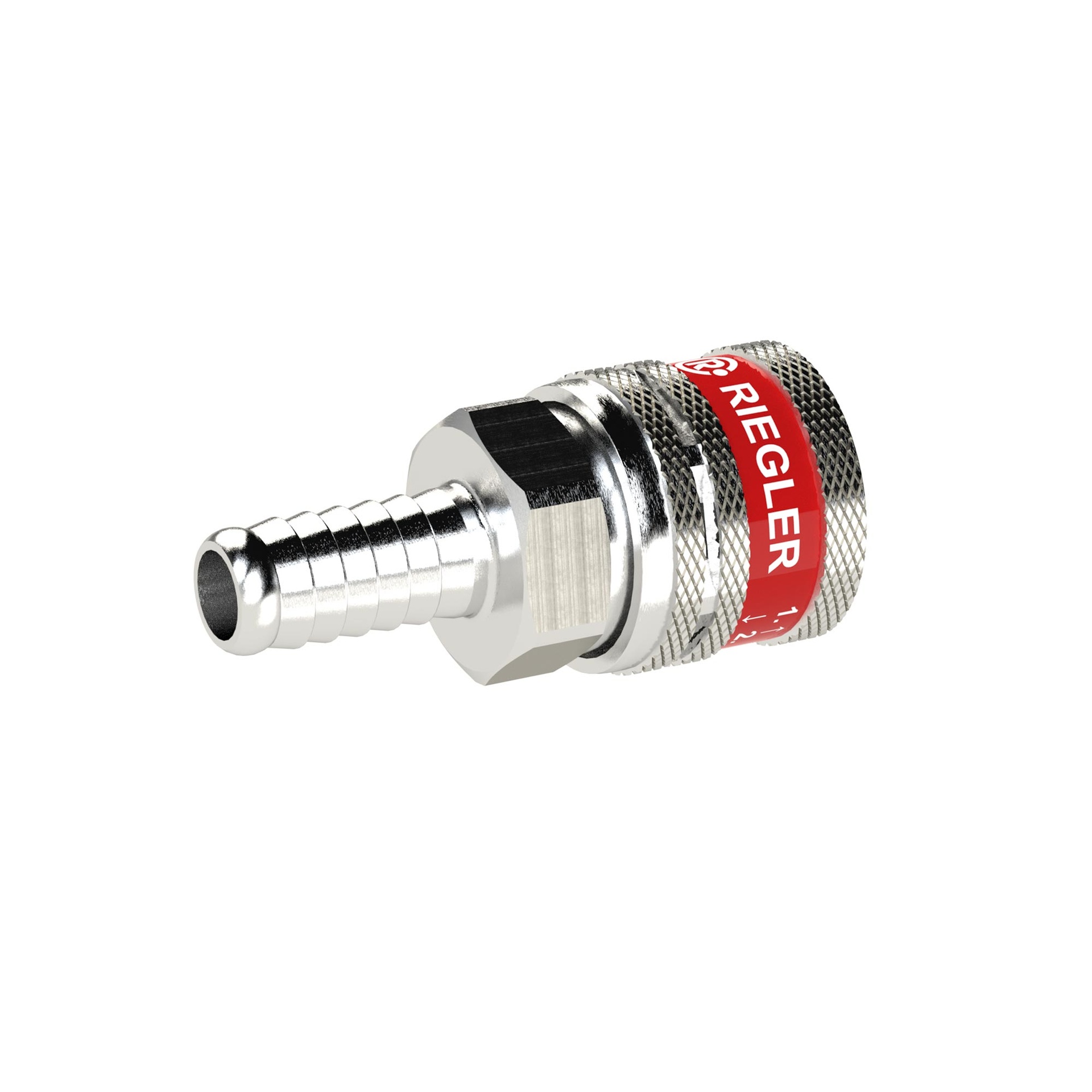

![[129976] RIEGLER safety coupling NW 7.8, type SEK, nickel-plated brass, spout LW 13](/web/image/product.template/283921/image_128/%5B129976%5D%20RIEGLER%20safety%20coupling%20NW%207.8%2C%20type%20SEK%2C%20nickel-plated%20brass%2C%20spout%20LW%2013?unique=e606d0b)
|
