RIEGLER End distributor socket, G3/4, 3 safety coupl. I.D. 7.4, max.12bar
Type number: EVDS34-3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER End cap made of glass fiber reinforced plastic PA6 GF 30, for compressed air supply - type EVDS34-3
The RIEGLER Endvert.can, 3 safety spl. NW7.4, G3/4, max. 12 bar separates the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of glass fiber reinforced plastic PA6 GF 30 and is designed for a maximum operating pressure of 12 bar. Maximum safety through controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Housing | glass fiber reinforced plastic PA6 GF 30 |
| Max. operating pressure | 12 bar |
| Operating temperature min. with air | -10 °C |
| Max. operating temperature in air | 50 °C |
| Operating temperature min. with water | 1 °C |
| Max. operating temperature with water | 50 °C |
| Tightening torque brass thread | 12 Nm |
| Tightening torque | 4 Nm |
| Height | 59 mm |
| Width | 156 mm |
| Input thread | G 3/4 |
| Connection coupling | 3 x safety clutch |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Thread material | Brass |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107576] RIEGLER End distributor socket, G1/2, 2 safety coupl. I.D. 7.4, max.12bar](/web/image/product.template/191477/image_128/%5B107576%5D%20RIEGLER%20End%20distributor%20socket%2C%20G1-2%2C%202%20safety%20coupl.%20I.D.%207.4%2C%20max.12bar?unique=19dace1)
|
Type number: EVDS12-2 |
54.37 € | |

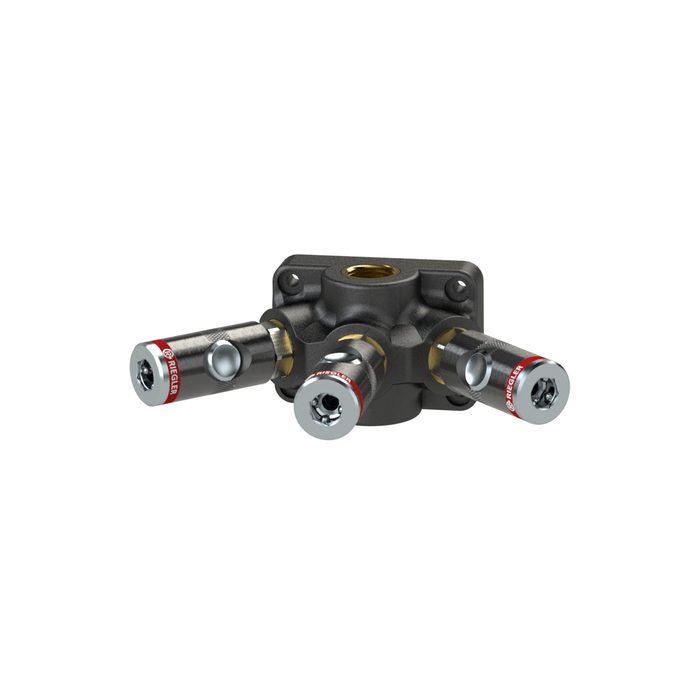

![[107577] RIEGLER End distributor socket, G1/2, 3 safety coupl. I.D. 7.4, max.12bar](/web/image/product.template/191478/image_128/%5B107577%5D%20RIEGLER%20End%20distributor%20socket%2C%20G1-2%2C%203%20safety%20coupl.%20I.D.%207.4%2C%20max.12bar?unique=121c4f3)
|
Type number: EVDS12-3 |
76.36 € | |

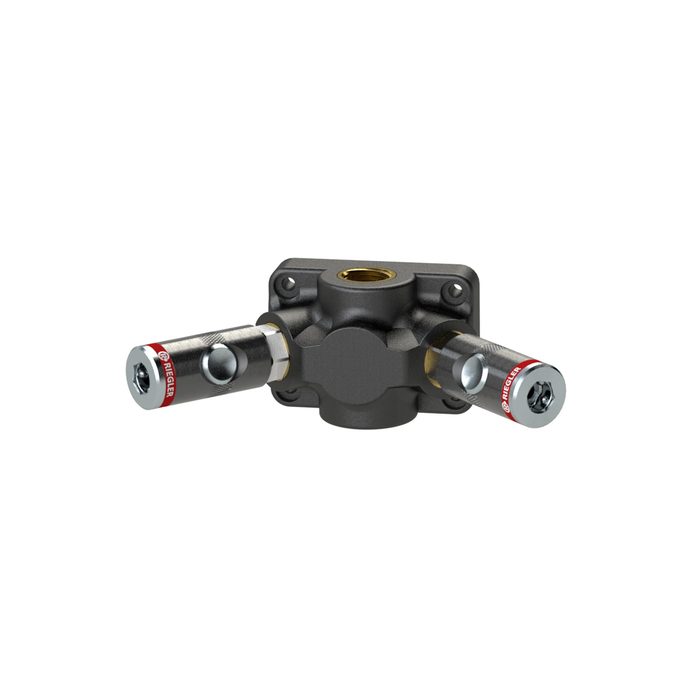

![[107578] RIEGLER End distributor socket, G3/4, 2 safety coupl. I.D. 7.4, max.12bar](/web/image/product.template/191479/image_128/%5B107578%5D%20RIEGLER%20End%20distributor%20socket%2C%20G3-4%2C%202%20safety%20coupl.%20I.D.%207.4%2C%20max.12bar?unique=33f398f)
|
