RIEGLER Safety coupling I.D. 7.6, »stream line«, for hose 12x8
Type number: 416.08-SL
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Safety coupling made of galvanized steel / brass, for compressed air supply, max. 16 bar - Type 416.08-SL
The RIEGLER safety coupling NW 7.6, "stream line", for hose 12x8 separates the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of galvanized steel / brass with NBR seals. Designed for a maximum operating pressure of 16 bar. The permissible medium temperature is between -20 °C and 100 °C. The flow rate is 2250 l/min (air) (at 6 bar and Δp = 0.5 bar). Maximum safety through controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Max. operating pressure | 16 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 2250 l/min (air) |
| Material | Galvanized steel / brass |
| Spring | Stainless steel |
| SW 1 | 19 mm |
| SW 2 | 20 mm |
| NW | 7.6 |
| Length | 68.1 mm |
| for hose | 12x8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[107600] RIEGLER Safety coupling I.D. 7.6, »stream line«, for hose 10x6.5](/web/image/product.template/191501/image_128/%5B107600%5D%20RIEGLER%20Safety%20coupling%20I.D.%207.6%2C%20%C2%BBstream%20line%C2%AB%2C%20for%20hose%2010x6.5?unique=84a1559)
|
Type number: 416.06-SL |
33.05 € | |
![[107602] RIEGLER Safety coupling I.D. 7.6, »stream line«, for hose 13.5x9.5](/web/image/product.template/191503/image_128/%5B107602%5D%20RIEGLER%20Safety%20coupling%20I.D.%207.6%2C%20%C2%BBstream%20line%C2%AB%2C%20for%20hose%2013.5x9.5?unique=e469fb6)
|
Type number: 416.09-SL |
33.71 € | |

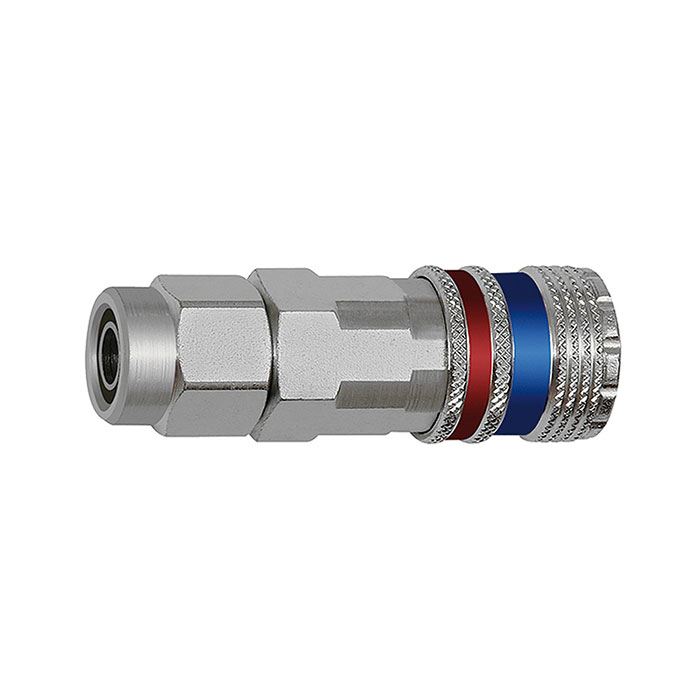

![[107603] RIEGLER Safety coupling I.D. 7.6, »stream line«, for hose 16x11](/web/image/product.template/191504/image_128/%5B107603%5D%20RIEGLER%20Safety%20coupling%20I.D.%207.6%2C%20%C2%BBstream%20line%C2%AB%2C%20for%20hose%2016x11?unique=b325902)
|
