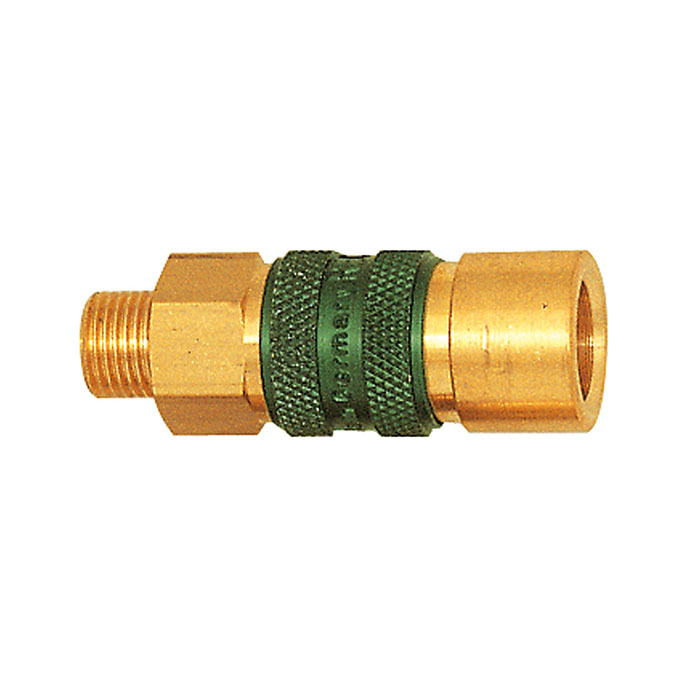

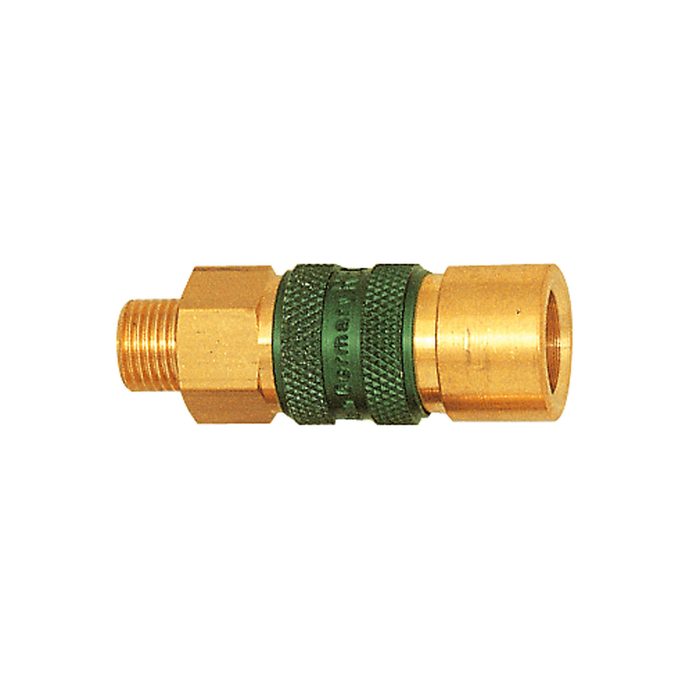

RIEGLER Captive quick-connect coupling I.D. 5, G 1/8 ET, green
Type number: 247.01
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
107625EAN :
4047322061575Category :
Non-Interchangeable Quick-Lock CouplingsWeight :
0.03 kgRIEGLER Unmistakable quick-release coupling made of bright brass, for compressed air supply - Type 247.01
The RIEGLER unmistakable quick-release coupling NW 5, G 1/8 AG, green prevents confusion thanks to color-coded coupling systems. The housing is made of bright brass with NBR seals. The permissible medium temperature is between -20 °C and 100 °C. Connection thread G 1/8 AG - suitable for common industry standards. The flow rate is 560 l/min (air) (at 6 bar and Δp = 0.5 bar). Color coding prevents confusion.
Field of application
Typical areas of application: Multi-conductor systems in production and laboratories.
| Housing | Brass bright |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 560 l/min (air) |
| Ball | stainless steel |
| Spring | stainless steel |
| Snap ring | stainless steel |
| Unlocking sleeve | Anodized aluminum |
| Valve | Brass bright |
| Operating pressure | 0 - 35 bar, max. static operating pressure (without pulsation) |
| SW | 14 mm |
| Colour | green |
| NW | 5 |
| Length | 45 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 AG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

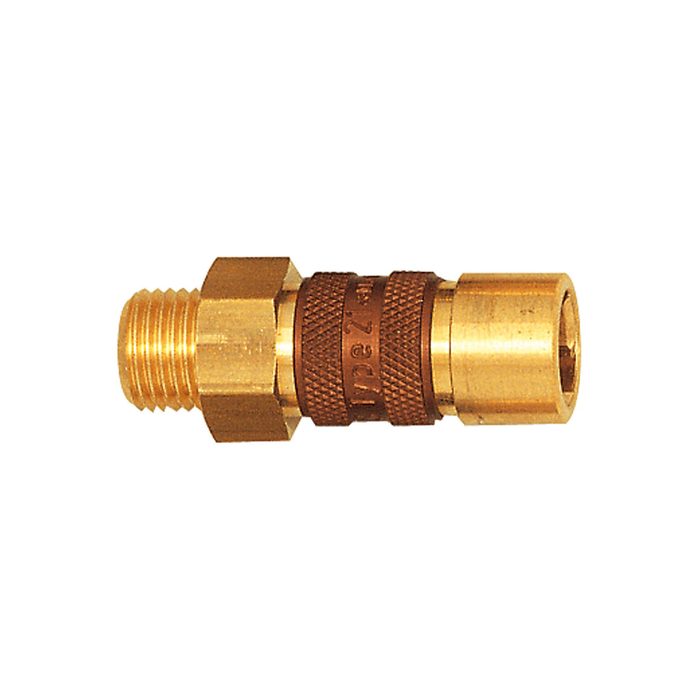

![[107630] RIEGLER Captive quick-connect coupling I.D. 5, G 1/4 ET, brown](/web/image/product.template/191531/image_128/%5B107630%5D%20RIEGLER%20Captive%20quick-connect%20coupling%20I.D.%205%2C%20G%201-4%20ET%2C%20brown?unique=905e693)
|
